Powder Granulator Machine

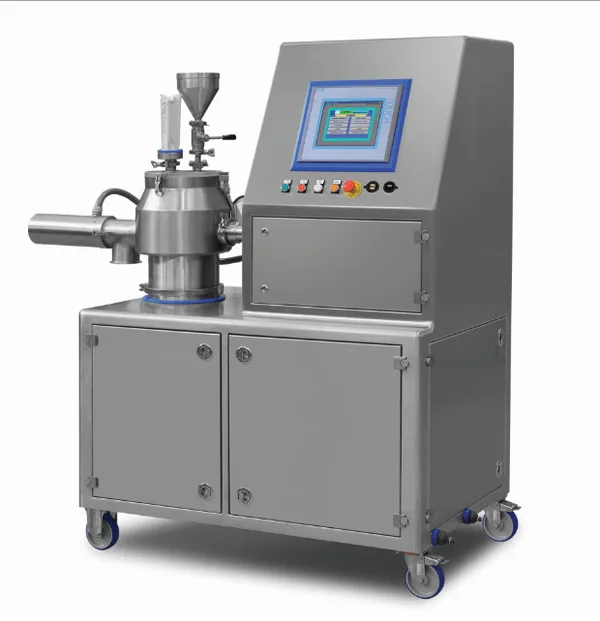

Wet Type 30L Powder Granulator Machine Granulation Equipments For Pharmaceuticals
Wet Type 30L Powder Granulator Machine Granulation Equipments For Pharmaceuticals Product Description of Powder Granulator Machine The machine adopts horizontal cylinder structure, its structure reasonable. Air filled seal shaft for to drive. When washing, it can be changed to water. Fluidized Granulation, the granule is around ball shape. Its flow ability is good. Compared to traditional process, 25% of adhesive can be reduced and the drying time is short. The dry mixing time is 2 minutes and the granulating time is 1-4 minutes. Compared to the traditional process, 4-5 ti
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-30SZ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 working days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Wet Type 30L Powder Granulator Machine Granulation Equipments For Pharmaceuticals
- Weight
- 400KGS
- Output
- 3-10kgs/batch
- Volume
- 30L
- Working capacity
- 6-20L
- Mixing power
- 3KW
- material
- stainless steel
- key word
- Powder Granulator Machine
Wet Type 30L Powder Granulator Machine Granulation Equipments For Pharmaceuticals
Product Description of Powder Granulator Machine
The machine adopts horizontal cylinder structure, its structure reasonable.
Air filled seal shaft for to drive. When washing, it can be changed to water.
Fluidized Granulation, the granule is around ball shape. Its flow ability is good.
Compared to traditional process, 25% of adhesive can be reduced and the drying time is short.
The dry mixing time is 2 minutes and the granulating time is 1-4 minutes. Compared to the traditional process, 4-5 times of efficiency is raised.
Dry mixing, humid mixing and granulating are finished in the same sealed container. It is in conformity with the requirements of GMP.
The whole operation has strict safe and protective measures.
Jacket type might be adopted on request.
The powder raw material and adhesive in a cylinder are fully mixed at the bottom to become a humid soft material. Then it is cut by high-speed cutter and become uniform granules.
Product Parameters of Powder Granulator Machine
| Volume | 30L |
| Working capacity | 6-20L |
| Output | 3-10kgs/batch |
| Operating time | Mixing:2min Granulation:7-14min/batch |
| Size of the finished granule | Φ0.14-Φ1.5mm(12mesh-100mesh) |
| Mixing Speed | 50-500rpm |
| Mixing power | 3kw |
| Granulation Speed | 50-3000rpm |
| Granulation power | 1.1kw |
| Air compressor | 0.2m³ (prepared by buyer) |
| Inlet of cooling water and compressed air | Φ10mm |
| Dimension | 1450×530×1340mm |
| Weight | 400kg |
Products Show of Powder Granulator Machine
Application of Powder Granulator Machine
This machine is used in the pharmaceutical, food, punch, chemical, solid beverage and other industries to make the required granules from the stirred materials, especially for the materials with high viscosity.
Other Products We Manufacture:
3.Pharmaceutical Machinery Equipment
FAQ
Q1:Are You A Factory or A Trading Company
A: We Provided Perfect OEM and After-sale Service.
Q2:Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan
Q3:Can You Send Me the Video To Show The Machine Works?
A:Certainly, We Have Made Video of Every Machine
Q4:How Can I Know Your Machine Is Designed For My Product
A:You Can Send Us Samples of Your Product and We Test It On Machine
Q5:How Can I Pay My Order?
A:Usually We Accept L/C, D/A, D/P, T/T, , MoneyGram,Cash Paying Methods
Q6:Do you Have a Ce Certificate?
A:For Every Model of Machine, It Has a CE Certificated
Q7:What about install?
A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
