Horizontal Biomass Pellet Machine Powder Granulator Machine

Product Description of Powder Granulator Machine



The unit is an advanced wet granulator which can effectively mix the target materials to turn out finequality wet granules, and is widely applied by the trades of pharmacy, foodstuff, chemical, powder metallurgy, and dyeing etc.



It also can be used for crushing the agglomerate materials into small granules directly.It is very suitable for the material of high viscidity.



Product Parameters of Powder Granulator Machine

Model	GHL-5	GHL-50	GHL-200	GHL-400	GHL-800	GHL-1500
Capacity (L)	5	50	200	400	800	1500
Production capacity (kg/batch)	1	15	60	150	250	500
Stirring power (kw)	1.1	5.5	11	22	37	55
Mixing time (min)	0-7
Stirring speed (r/min)	0-400	0-300	0-200	0-150	0-150	0-110
Cutting power (kw)	0.55	2.2	5.5	11	18.5	30
Cutting time (min)	0-5
Cutting speed (r/min)	0-2900
Compressed air pressure (Mpa)	0.4-0.6
Amount compressed air (m3/min)	0.3	0.6	0.9	1.1	1.5	1.8



Advantages of Powder Granulator Machine



1. The machine adopts a practical horizontal cylinder structure.



2. The driving shaft is euipped with inflatable seal. While washing, the air can be replaces by water.



3. Fluidized granulating processed is used and the final granules are quite round with high fluidity.



4. Compared with traditional technique, this type of machine can reduce 25% of adhesive and also shorten the drying time.



5. For each batch of material, with 2 minutes dry mixing and 1-4 minutes granulating, the efficiency is 4-5 times higher than that of traditional technique.



6. Dry mixing, wet mixing and granulating are finished inside the same sealed container, which is in conformity with the requirement of GMP.



7.Easy to clean and maintain; The hopper, crusher room, blades and screen can be removed and mounted easily.

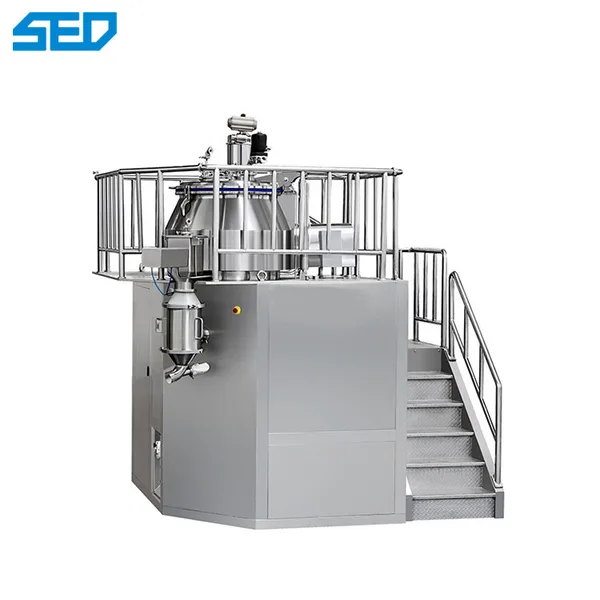

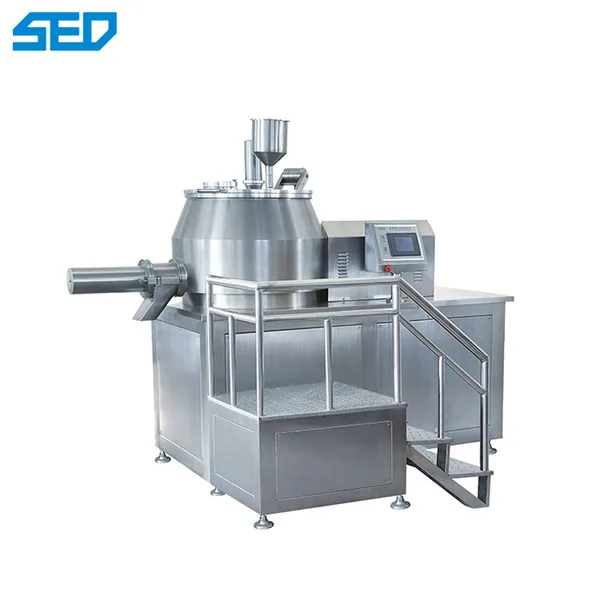

Products Show of Powder Granulator Machine

Application of Powder Granulator Machine​

This machine is widely used in pharmaceutical, food, chemical, light industry and other industries to mix powdery materials and granulate.
