Powder Granulator Machine

200L Organic Fertilizer Granulation Machine Pharmaceutical Lab Mixer Granulator

Name: 200L Organic Fertilizer Granulation Machine Pharmaceutical Lab Mixer Granulator
Brand: SED Pharma

200L Organic Fertilizer Granulation Machine Pharmaceutical Lab Mixer Granulator Product Description of Powder Granulator Machine 1.Pharmaceutical industry - Pharmaceutical particles,Chinese medicine particles,anti biomass capsules filling particles,anti biomass particles,animal medicinal granules,Powder dialysis preparation 2.Food industry - the granules of flavoring and spicy condiments, granule for snack, granule for healthy food, convenient food, condiments, dairy products, and health products. 3.Chemical and other industries-- cosmetics, pesticides, chemical industri

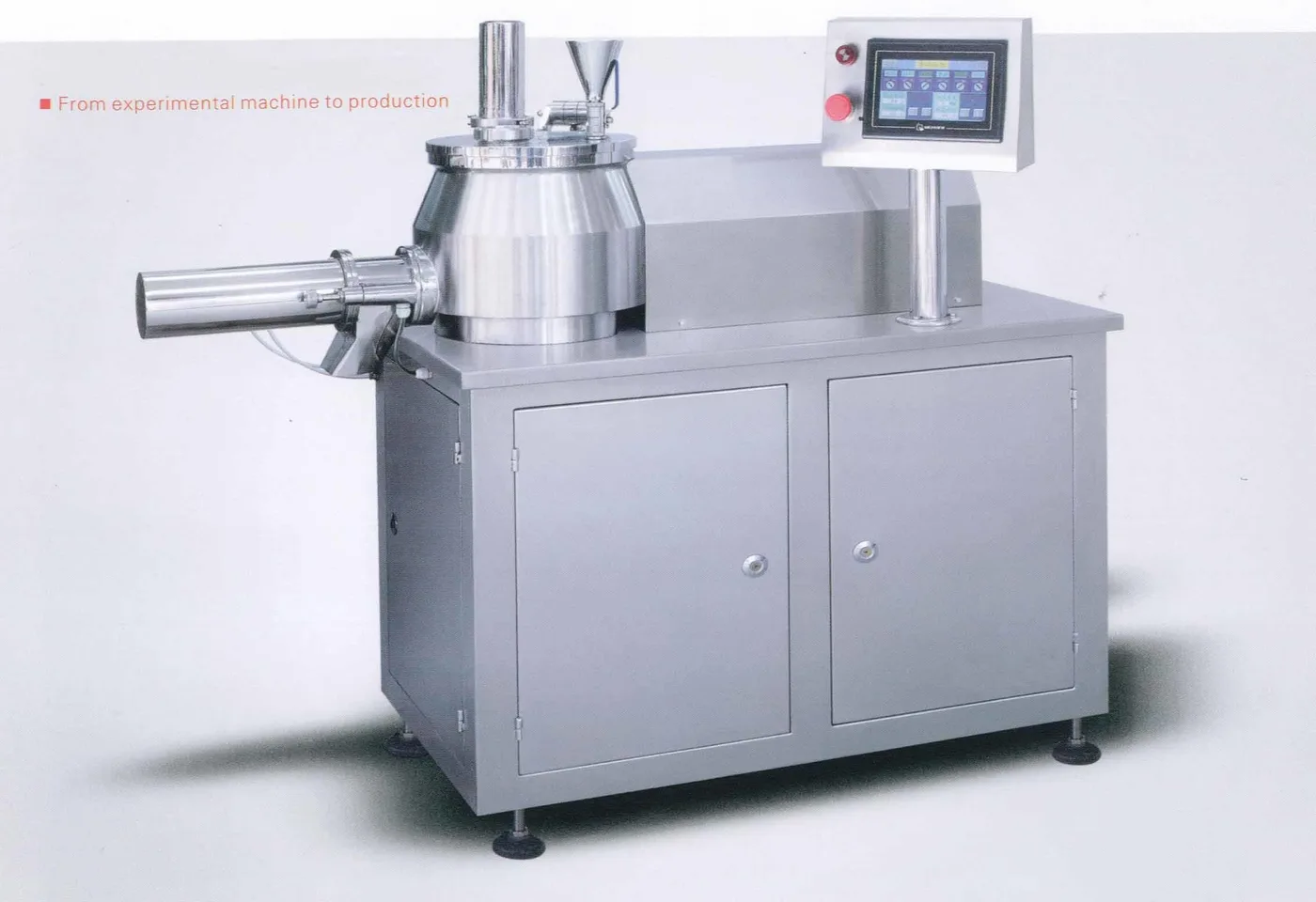

200L Organic Fertilizer Granulation Machine Pharmaceutical Lab Mixer Granulator, view 1

200L Organic Fertilizer Granulation Machine Pharmaceutical Lab Mixer Granulator, view 2

200L Organic Fertilizer Granulation Machine Pharmaceutical Lab Mixer Granulator, view 3

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-200SZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 Sets per month
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	40 working days after receiving the deposit

Request configuration

Configuration and product details

Technical overview

Name: 200L Organic Fertilizer Granulation Machine Pharmaceutical Lab Mixer Granulator
Mix type: Wet Type mixing granule
Dimension: 2180×810×1900mm
Weight: 1355kgs
Volume: 200L
Output: 30-75kgs/batch
material: stainless steel
key word: Powder Granulator Machine

200L Organic Fertilizer Granulation Machine Pharmaceutical Lab Mixer Granulator

Product Description of Powder Granulator Machine

1.Pharmaceutical industry - Pharmaceutical particles,Chinese medicine particles,anti biomass capsules filling particles,anti biomass particles,animal medicinal granules,Powder dialysis preparation

2.Food industry - the granules of flavoring and spicy condiments, granule for snack, granule for healthy food, convenient food, condiments, dairy products, and health products.

3.Chemical and other industries-- cosmetics, pesticides, chemical industrial chemicals, animal feed, detergent.

Product Parameters of Powder Granulator Machine

Volume	200L
Working volume	60-150L
Output	30-75kgs/batch
Operating time	Mixing:2min Granulation:7-14min/batch
Size of the finished granule	Φ0.14-Φ1.5mm(12mesh-100mesh)
Mixing Speed	30-260rpm
Mixing power	15kw
Granulation power	4kw
Air compressor	0.5m³ 0.7Mpa (prepared by buyer)
Inlet of cooling water and compressed air	Φ10mm
Dimension	2180×810×1950mm
Weight	1355kg

Advantages of Powder Granulator Machine

1.Short granulation time, high efficiency and energy saving. When the main drug and excipients differ greatly, uniform integration can be achieved without stratification. Sulfided granulation, granulation approximate spherical, good fluidity

2.The horizontal cylinder is constructed with reasonable structure and easy to clean.

3.Inflatable sealed drive shaft, switchable to water when cleaning.

4.Compared with the traditional process, 25% of the adhesive can be reduced, the drying time is shortened.dry mixing, wet mixing and granulation are completed in the same sealed container, the process is reduced, which meet GMP requirement

5.Intelligent industrial control system adopts advanced PLC and HMI man-machine interface,and can realize remote DCS control.It has the advantages of data storage, analysis, operation, fault detection, alarm, analysis and etc...which is helpful to daily maintenance;Electrical components use the world famous brand Schneider series products(optional)

6.Intelligent spray device can accurately control the dose of adhesive;(Optional)

7.The entire operation has strict safety protection measures to ensure operator safety

Products Show of Powder Granulator Machine

Application of Powder Granulator Machine

200L Organic Fertilizer Granulation Machine Pharmaceutical Lab Mixer Granulator product detail
