Powder Granulator Machine

Pharmaceutical Industry Wet Powder Granulator Machine High Shear Mixing

Name: Pharmaceutical Industry Wet Powder Granulator Machine High Shear Mixing
Brand: SED Pharma

Pharmaceutical Industry Wet Powder Granulator Machine High Shear Mixing Product Description of Powder Granulator Machine The granulating process is divided into two procedures of mixing and grain forming, which are finished in the same vessel. Powder materials in the fixed tapered vessel are hit and dispersed into semi fluid rolling state and given a complete mixture under the stirring action of mixed stock. With the infusion of bond, the powder is gradually moistened and the shape of materials is changed, which has strengthened the extrusion, attrition and kneading f

Pharmaceutical Industry Wet Powder Granulator Machine High Shear Mixing, view 1

Pharmaceutical Industry Wet Powder Granulator Machine High Shear Mixing, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-FL-07

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 Sets per month
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	40 working days after receiving the deposit

Request configuration

Configuration and product details

Technical overview

Name: Pharmaceutical Industry Wet Powder Granulator Machine High Shear Mixing
Model: SED-FL-07
Capacity(kg/h): 150
Power(kw): 6.5
Roller speed(r/min): 50
Swing angle(degree): 360
Roller diameter(mm): 100
Dimensions(mm): 2,055 x 830 x 1,340
material: stainless steel
key word: Powder Granulator Machine

Pharmaceutical Industry Wet Powder Granulator Machine High Shear Mixing

Product Description of Powder Granulator Machine

The granulating process is divided into two procedures of mixing and grain forming, which are finished in the same vessel.

Powder materials in the fixed tapered vessel are hit and dispersed into semi fluid rolling state and given a complete mixture under the stirring action of mixed stock.

With the infusion of bond, the powder is gradually moistened and the shape of materials is changed, which has strengthened the extrusion, attrition and kneading functions of the mixing paddle and vessel wall on the materials and thus formed evenly wet soft materials.

These soft materials gradually turn into fine and homogeneous wet grains under the high -speed cutting and grain forming of the granulating paddle and eventually discharged through the outlet.

The grain size is dependable on the material characteristics, rate of material preparing tool and time of grain forming.

Product Parameters of Powder Granulator Machine

Model	SED-FL-07
Capacity(kg/h)	150
Power(kw)	0.55
Roller speed(r/min)	55
Swing angle(degree)	360
Roller diameter(mm)	100
Dimensions(mm)	2,055 x 830 x 1,340
Weight(kg)	1000

Feature of Powder Granulator Machine

1) Grains produced by this machine enjoy true-ball sense, good fluidity and homogeneous material, which may effectively boost tablet pressing, improve tablet quality and enhance the capsule filling and thus make the tablets enjoy better brightness, hardness, disintegration and discharge. The production cost is also saved.

2) The part in contact with materials is made of stainless steel 316 L while the appearance part is made of stainless steel 304.

3) It is an ideal wet-process granulating equipment of fine fabrication provided with considerate safety chain and auto water

cleaning system which is convenient for cleaning and free of metal stains at dead angle and material deposit.

4) Based on the different features of Chinese and western medicines, wet process mixer granulators are divided into Chinese medicine type and western medicine type.

5) Human-computer interface/PLC control may be configured or exclusion of explosion may be adopted according to the demand of users.

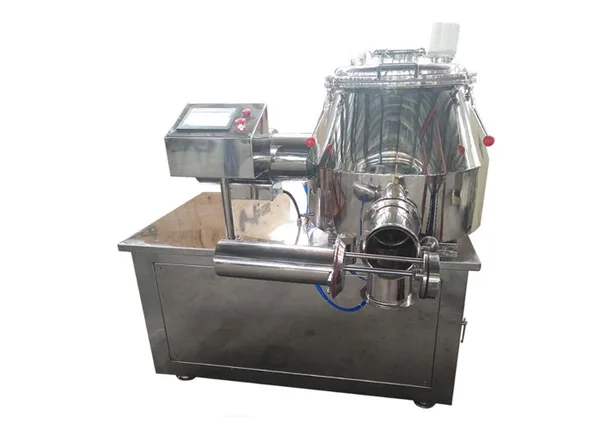

Products Show of Powder Granulator Machine

Pharmaceutical Industry Wet Powder Granulator Machine High Shear Mixing product detail
