Stainless Steel White Sugar Sugar Film Coating Machine With Stable Running

Stainless Steel White Sugar Sugar Film Coating Machine With Stable Running



Product Overview of Coating Machine



These machines sugar coat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds.



Product Parameters of Coating Machine

Model	SED-JB300	SED-JB400	SED-JB600	SED-JB800	SED-JB1000
Dia. of Pan ( mm)	300	400	600	800	1000
Rotary Speed of Pan ( r/min)	46	46	46	36	32
Power of Fan( kw)	0.075	0.075	0.075	0.12	0.12
Power of Heat kw	0.75	0.75	1	2	2
Production Capacity( kg/time)	2	5	15	36-50	45-70
Motor( kw)	0.37	0.55	0.75	1.1	1.1
Overall Size ( mm)	520*360*700	540*400*800	930*800*1000	1000*800*1480	1070*1000*1580
Net Weight( kg)	46	52	120	205	230



trait of Coating Machine



1. Made of stainless steel, stable running, low noise and high efficiency.

2,The final product is round and smooth.

3,It is also suitable for peanut, popcorn, almond, cashews, soybeans and so on.

4,The inclination angle of the sugarcoating pot can be adjusted.

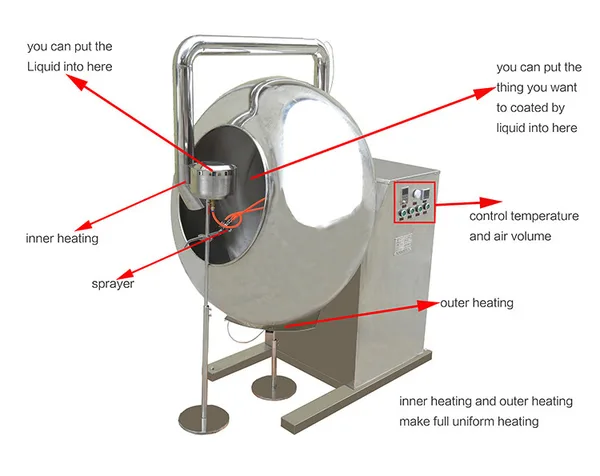

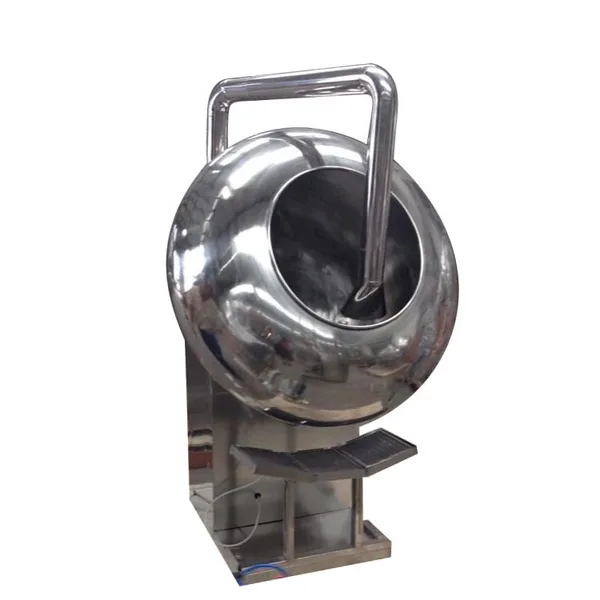

Show of Coating Machine



Application of Coating Machine

1. Film coating of tablets, pills, etc. in the pharmaceutical industry

2. Sugar and chocolate coating of nuts, fruits, popcorn, etc. in the food industry

3. Powder, paint, chemical color coating

4. Polishing, polishing and polishing of spherical finished products Rolling, e.g. pearl balls, chewing gum, candy.
