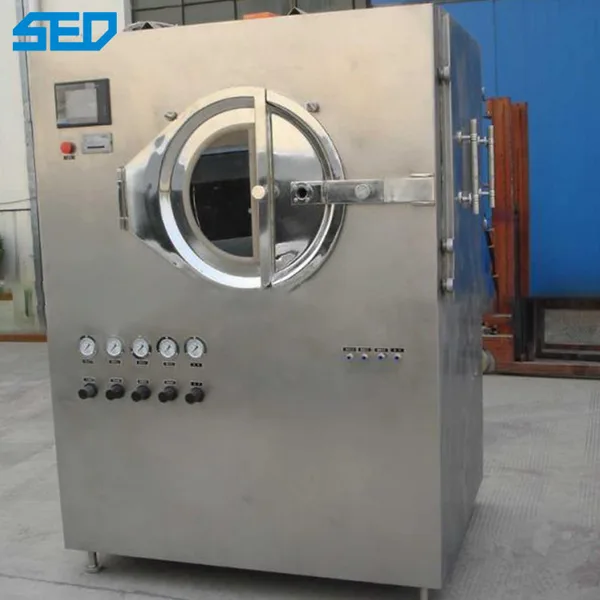

High Efficiency Pharmaceutical Automatic Tablet Film Coating Machine



Product Overview of Coating Machine ​



High-efficiency coating machine is a special laboratory equipment which used for coating film on traditional Chinese and Western tablets and pills in pilot run.This equipment is manufactured according to the requirements GMP in pharmaceutical industry.

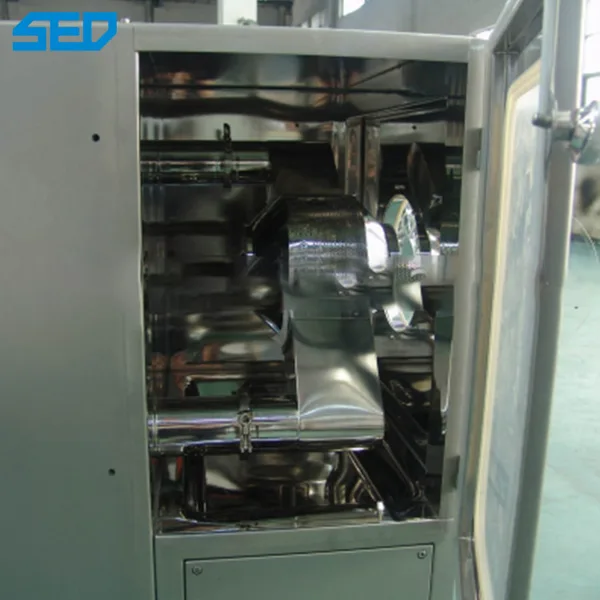

The entire outer surface, coating drum (coating pan). spraying device and all parts in contact with medicine are all made of stainless steel. The whole process is controlled by microprocessor-based programmable control system, and also can be controlled manually.



The control system has functions such as a wide range of application, selection of running state, control of speed and temperature, control of negative pressure, complete display of control parameters, recording and printing of working state.



All the coating operation is carried out under an airtight condition and is free from dust emission and liquid splash. So that this machine is a high quality, high efficiency, reliable, clean, energy saving, easy operation and new type coating equipment which obeys SOP regulations and is widely used as laboratory equipment.



Product Parameters of Coating Machine​

Auto-cater	Data
Max.working volume for each drum	1L / 3L / 5L
Max Batch size based on tablet bulk density 0.6~0.8g/ml	0.5kg~4kg, with three interchangeable coating drums
Speed adjusting range of coating drum (rpm)	6-30
HEPA Filter Class	H13
Filtration accuracy of hot air ( m)	0.5 mm (100000 grade)
Max working air temperature (°C)	80
Motor power of main machine (kW)	0.37
Motor power of supply air machine (kW)	0.25
Motor power of exhaust air machine (kW)	1.1
Power of electric heating (kW)	6
Noise of Fan isolated1 meter by machine	<75dB



Feature of Coating Machine ​



1. Function of integrated design



2. One machine with three change drums



3. It is the best model for exploring coating technology in pharmaceutical laboratory.



4. The coating drum can be replaced according to the coating technology batch



5. Replacement of the coating drum is convenient and fast.



6. Control and display the negative pressure in coating pan



7. Display air pressure of the supply air of HEPA filter



8. Control and display the temperature



9. Control and adjust the atomization surface of slurry



10. Control the program of spray gun and atomization



11. Design of gun cleaning and anti-blocking



12. Design the functions of memory and printing



13. Designed the functions of impulse and dust removing



Application of Coating Machine

This equipment is widely used in the sugar coating and film coating of Chinese and Western medicine tablets in the pharmaceutical industry and the coating of sugar pills and chocolate in the food industry.
