Auto Pill Capsule Tablet Pills Coating Machine For Pharmaceutical



Product Description of Film Coating Machine



During run of film coating in the main machine, it shows such features as free dust flyoff, syrup splash, operation condition improvement, little cross contamination to tablets, simple coating process, shortening coating time as well as high production efficiency etc.



Used for coating various tablets, pills and bubble candies with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc.



And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc in such fields as of pharmaceutical, food and biological line.



Product of Film Coating Machine

Technical parameters
Item	BG-5E
Diameter of coating drum	φ564 φ510 φ420
Coating pan Capacity	5 kg 3 kg 1 kg
Rotate speed of drum (R/Min)	0-30r.p.m
Power of main motor	0.37kw
Power of air exhaust tank motor	0.55kw
Air flow of air exhaust tank	805m3/h
Power of hot air tank motor	0.25KW
Air flow of hot air tank	504m3/h
Equipment Size	1250×900×1700
Net Weight	750 kg



Features of Film Coating Machine

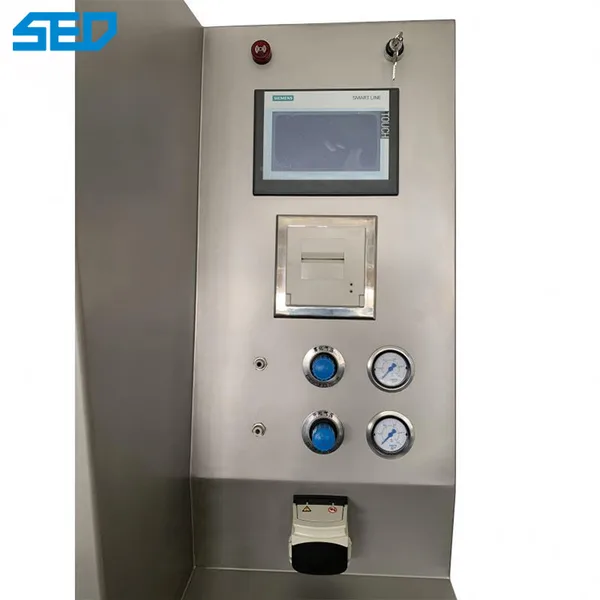

1.With PLC module, all operations such as hot air temperature setting and control, revolutions of the drum adjustment, automatic control and display of negative pressure etc can be set by pushing the touch key on the computer-controlled panel fully sealed with slight touch film interface.

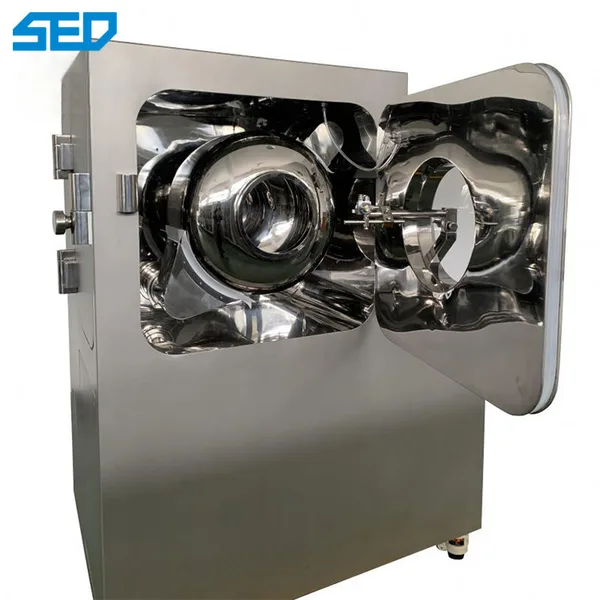

2.The machine is free to clean, with such characteristics as reliable and stable performance. The streamline guiding-type mixer drives tablets to make easy and smooth rotation without fragment and chipped edge, which improves the yield. The guiding sheet has a narrow surface, to which no dressing can be stuck, economization on dressing and improving the quality of finished products.



3.The constant-pressure variable crawler pump features the revolution radius of the roller subject to pressure, automatic control of output syrup amounts and sprayed syrup amounts, stabilization of atomization, simplify of spraying system, economization on dressing, easy to fully clean.



4.The specially designed imported pray gun features ease in operation and control technological requirements, uniform density and particle size, uniform atomization and large spray area, practical to adjust flow, free leakage and blockage, angle and



sector. The gun can be in operation until its head keeps in the range of 0.29Mpa to 0.39Mpa. Until now, it has been favourably reviewed from users at home and abroad.

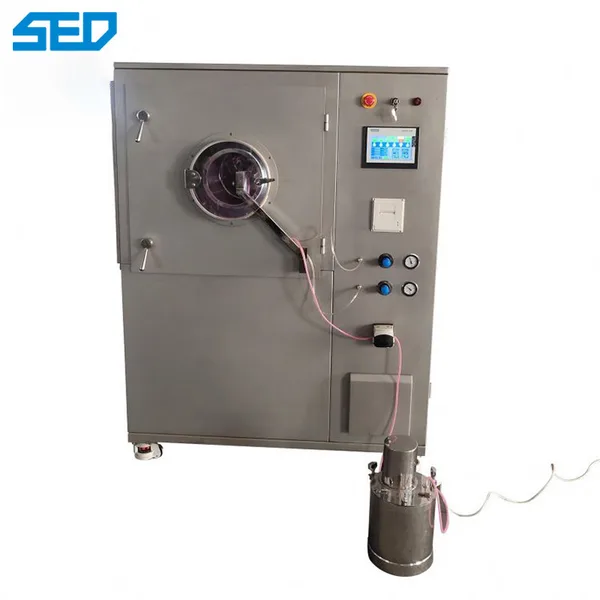

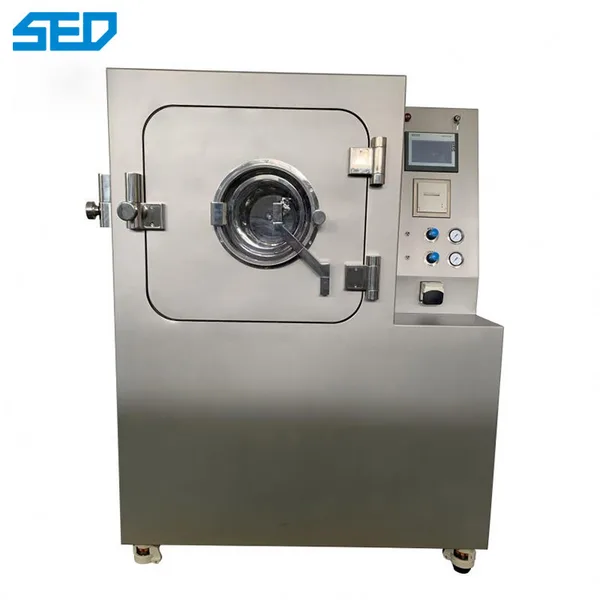

Product Show of Film Coating Machine



Application



The high-efficiency coating machine is a new technology for the production of medicines at home and abroad. Through the coating of medicines, the quality and validity of the medicines are guaranteed. It is a high-efficiency, energy-saving, safe and



clean coating for Chinese and Western medicines, tablets, pills, micro-pills, small pills, water pills, dripping pills, granulated pills, etc. , Mechatronics equipment that meets GMP requirements.
