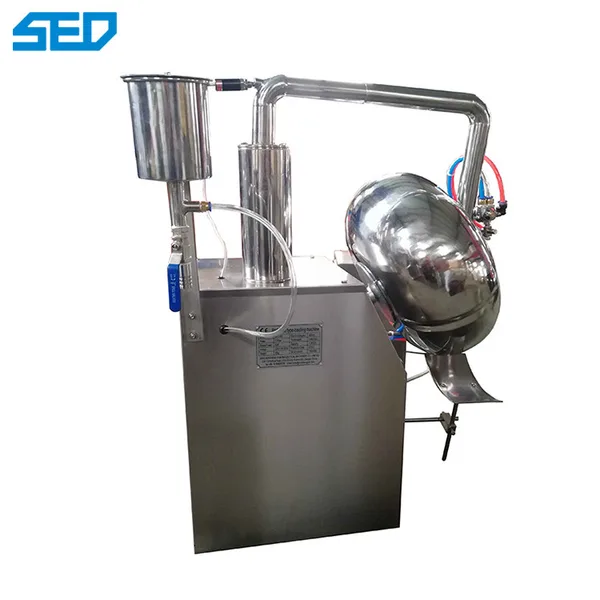

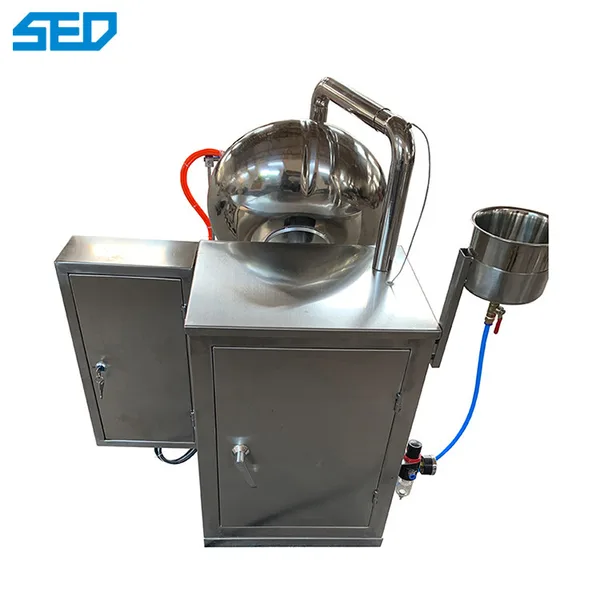

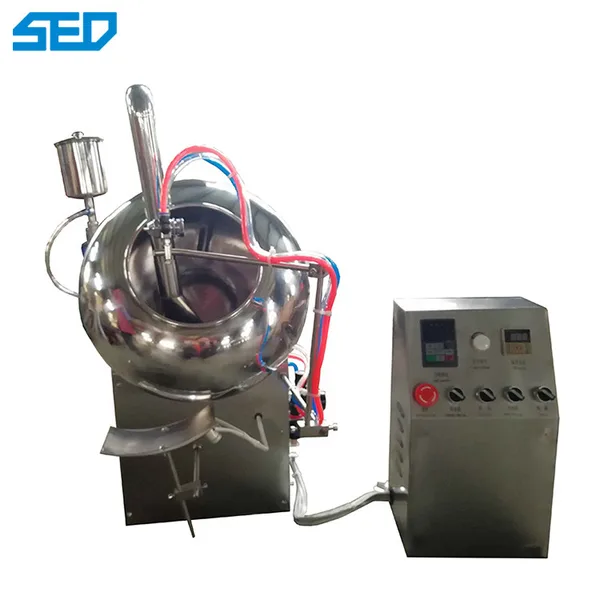

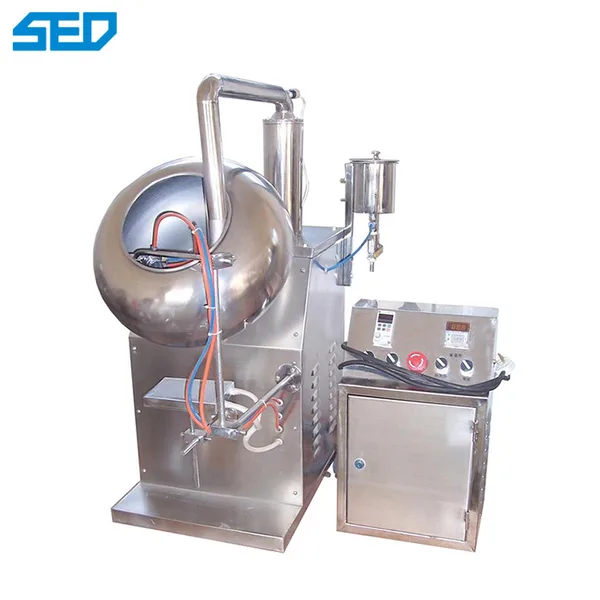

High Efficiency Automatic Tablet Film Coating Machine

Product Description of Film Coating Machine



This machine is mainly used in the coating ,glazing ,granulation of the pharmacy trade ,it can also be used to ball object mould shape make in food and chemical industry trade.



In order to improve level and property of coating equipment to satisfy the needs of user.Our company design,manufacture install coater as GMP request based on original one.Inner pot with diversion board and automatic spray liquid system .It can adjust temperature and speed.The machine has advantage of not pollution.easy to clean and to maintain,low cost.



This coating pan is made of stainless steel , the complete machine transmission is steady ,performance is reliable .it is convenient to wash and maintain ,thermal efficiency is high ,it can produce the technological requirement and regulate coating in one pot of angles at the same time, and is easy to use .it is the ideal equipment in the trade as medicine ,food ,chemical industries ,etc.



This machine can increase the step less speed regulation according to users enquiry ,wrap up such systems as the outer cover and gushing out liquid ,hot wind ,dust removal ,etc.



Product Parameter of Film Coating Machine

ITEM	TYPE
	BY300(A)	BY400(A)	BY600	BY800	BY1000
Dia. of Sugarcoating Dish mm	300	400	600	800	1000
Roataion Speed of Sugarcoating Dish r/min	46/5-50	46/5-50	42	30	30
Production Capacity kg/time	2	5	15	36	45
Motor kw	0.55	0.55	0.75	1.1	1.1
Overall Size mm	520*360*650	540*360*700	780*580*1140	980*800*1480	1070*1000*1580
Net weight kg	46	52	120	180	230



Working Principle of Coating Machine



During the movement, the control system performs programmable control. According to the requirements of the process sequence and parameters, the medium is automatically sprayed on the surface of the chip core in a mist form through the spray gun. Hot air penetrates the core void layer.



The medium that has been sprayed on the surface of the chip core is fully contacted with the hot air and gradually dried, and the exhaust gas is discharged from the bottom of the drum through the air duct and after being dedusted by the exhaust fan, so that the chip core forms a firm and smooth surface film.



Features of Film Coating Machine



1. Adjustable tilt angle



2. Can be used with frequency converter and dust removal system



3. The product runs sm



Application of Film Coating Machine



The high-efficiency coating machine is suitable for coating sugar coating, organic film coating, water-soluble film coating and slow and controlled release coating of traditional Chinese and western medicines, tablets, pills, micro-pills, small pills, water pills, drop pills, and granule pills.
