Stainless Steel Pet Bottle GPM 2ml Eye Drop Filling And Capping Machine



Stainless Steel Pet Bottle GPM 2ml Eye Drop Filling And Capping Machine



Product Overview of Capping Machine



The eye drop aseptic filling production line is composed of six main parts: bottle unscrambling, conveying, sterile purified gas washing, filling, stoppering and capping.



The whole production process is completed under the protection of 100-level laminar flow and aseptic isolation, and the isolation protection of each area is ensured.



The aseptic production of eye liquid products meets the requirements of the new national GPM standard, and the production line is also suitable for the production of other small-capacity plastic bottle products.



Product Parameters of Capping Machine

Model:	SED-200QX
Applicable specifications	2-60ml plastic bottles; other specifications can be customized
Production capacity	40-120 bottles / minute
Power	220V/380V 50Hz; other power supplies can be customized
Total power consumption	≤0.75kw
Purified compressed air pressure	0.6-0.8MPa; dosage 25m3/h
Total weight	≤500kg



Feature of Capping Machine​

1. Touch screen operation platform, current production output will be displayed on the screen

2. Conveyor line adopts frequency control, automatically displays current working frequency

3. Use 8 sets of suction-type air-washing needles to stretch into the bottle for cleaning

4. Stop washing when no bottles on the feeding line; automatically start when there's bottles (When the set number of bottles is counted by the optical detector, the air washing head drops and starts to air wash. Otherwise, if the optical detector does not detect the set number of bottles, the gas washing machine will not start to air-wash and will wait for the right number of bottles to be added, the touch screen can display bottle number to improve the time setting for bottle counting)

5. Bottle counting (the optical detector will detect the number of bottles after the gas wash, when it detect the set number of bottles, the cylinder sticks out and waits for the next batch of bottles to enter. The touch screen can display bottle number to improve the time setting for bottle counting)

6. The air-washing station is divided into cylinders, which are controlled by front and back counting optical detector (the counting number can be changed on the screen and the counting wait time can be set)

7. Air-washing head lifting mechanism adopts cylinder to control stroke for different bottles

8. When the bottle or the bottle mouth is irregular, the bottle mouth alignment device is provided

9. Equipped with stainless steel protective door, machine stops when door's open, and needs to be restarted manually when door's closed

10. If it is connected with other equipment, when bottle's full on the conveyor belt, the machine will stop; when there's no bottle, it will start (there is a detection on the conveyor belt)

11. Equipped with ion generator to effectively remove static electricity and reduce dust adsorption capacity.

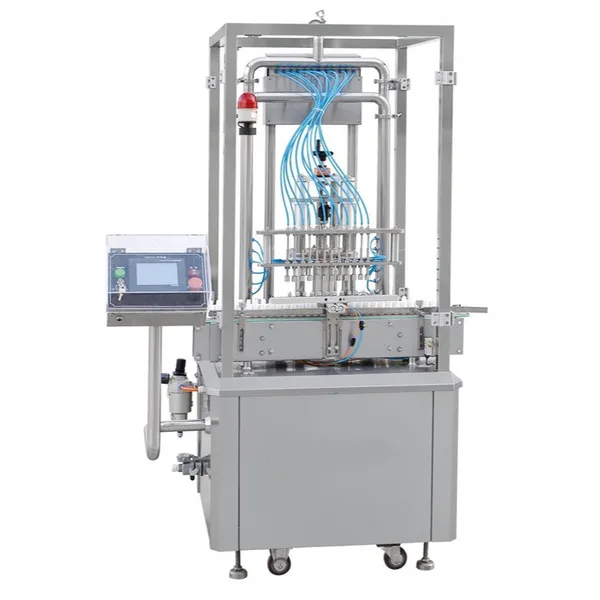

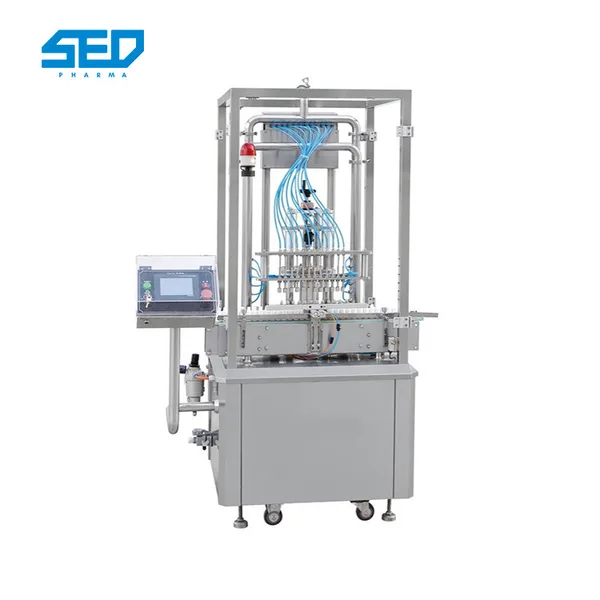

Show of Capping Machine



Application of Capping Machine

This machine is mainly used for filling and capping of syrup, honey, fruit juice, wine, beverage, cod liver oil, olive oil, essential oil, facial cleanser, shower gel, hair oil, ink, disinfectant, injection, laundry liquid and various liquid medicines .
