Liquid Filling Machine

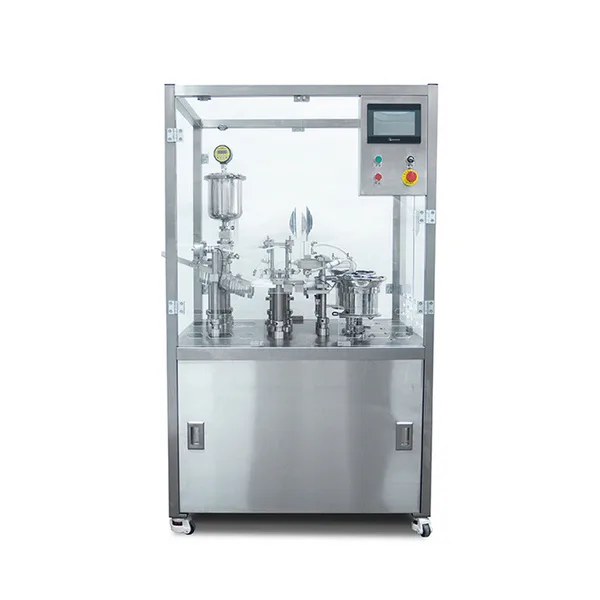

3.5KW Vacuum Liquid Filling Machine for Prefilled Syringes with 1200-1800 Pcs/H Production Capacity
This automatic packaging equipment is specially designed for aseptic and efficient filling of prefilled syringes.
Product Details:
Payment & Shipping Terms:
Request configuration
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-2YGF-K |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- Prefilled Syringe Vacuum Liquid Filling And Plugging Machine With 1200-1800 Pcs/h
- Filling Volume
- 0.5、1、2.25、3、5、10、20ml
- Filling Accuracy
- ≤±1-2%
- Production Capacity
- 1200-1800 p/h
- Motor Power
- 3.5KW
- Compressed Air
- 0.55-0.75Mpa 15L/S
- Overall Dimension
- L1020×W800×H17350mm
- Machine Weight
- 350KG
- Voltage
- 380V/220V 50-60Hz
- Key word
- Liquid Filling Machine Liquid Filling And Plugging Machine
3.5KW Vacuum Liquid Filling Plugging Machine With 1200-1800 Pcs/H Prefilled Syringe
Prefilled Syringe Vacuum Liquid Filling And Plugging Machine With 1200-1800 Pcs/h
Working Principle of Syringe Filling Machine
This automatic packaging equipment is specially designed for aseptic and efficient filling of prefilled syringes. The machine operates smoothly with intelligent detection devices, offering high automation, excellent work efficiency, and easy maintenance. It is the ideal solution for filling and plugging prefilled syringes.
Product Parameters of Syringe Filling Machine
| Filling Volume | 0.5, 1, 2.25, 3, 5, 10, 20ml |
|---|---|
| Filling Accuracy | ≤±1-2% |
| Production Capacity | 1200-1800 p/h |
| Motor Power | 3.5KW |
| Compressed Air | 0.55-0.75Mpa 15L/S |
| Overall Dimension | L1020×W800×H17350mm |
| Machine Weight | 350KG |
Product Show of Syringe Filling Machine
Features of the Syringe Filling Machine
- Wide compatibility with SCF (prefilled syringe) syringes from BD, BG, SCHOTT, and major domestic manufacturers. Customizable for other syringe types.
- Constructed with SUS304 stainless steel surface and SUS316L stainless steel contact parts with medical silicon rubber, meeting GMP specifications.
- Ceramic plunger pump ensures quantitative filling with resistance to acid, alkali, corrosion, and high temperatures, delivering high filling accuracy.
- Vibratory feeder made of SUS316L stainless steel clean plate for conveying and sorting rubber plugs, featuring bright surface treatment with no clean dead corners.
- International-grade electrical components with interference-free modular control. Servo motors ensure accurate, reliable synchronous actions for automatic filling and stoppering.
- PLC programming controller manages motor operation with real-time monitoring via human-computer interface, including automatic fault alarms and location display.
- Multiple filling doses and methods available with optional material front-end functions.
- Injection needle filling with liquid level rising prevents medicine splashing.
- Vacuum filling system ensures bubble-free filling of viscous materials, improving finished product quality rate.
- Vacuum stopper system minimizes particle generation from rubber stopper vibration and friction, ensuring close contact with liquid surface.
- Modular design for easy positioning and expansion, suitable as stand-alone equipment or connected to nesting machines.
Application of the Syringe Filling Machine
Suitable for filling aqueous solutions, plasters, viscous liquids, and gels.
