Liquid Filling Machine

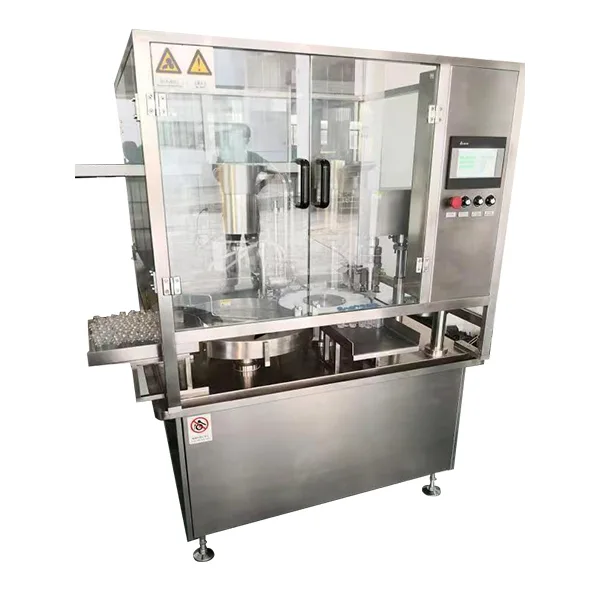

Penicillin Bottle Liquid Filling And Capping Machine
Descriptions This machine is a liquid filling and sealing equipment for penicillin bottles, which can complete functions such as automatic bottle feeding, automatic filling, automatic plug supply and pressure, and automatic capping and capping. The whole machine adopts variable frequency speed regulation, equal disc positioning, peristaltic pump filling, fan-shaped plate reciprocating plug pressing, and three blade capping; The equipment has protective functions such as no bottle, no filling, etc. to ensure normal production operation. The machine has a high degree of autom
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-2-1-1XGS-A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overviewDescriptions
This machine is a liquid filling and sealing equipment for penicillin bottles, which can complete functions such as automatic bottle feeding, automatic filling, automatic plug supply and pressure, and automatic capping and capping. The whole machine adopts variable frequency speed regulation, equal disc positioning, peristaltic pump filling, fan-shaped plate reciprocating plug pressing, and three blade capping; The equipment has protective functions such as no bottle, no filling, etc. to ensure normal production operation. The machine has a high degree of automation, stable operation, and easy operation, which meets GMP requirements.
Main technical parameters
| Model | SED-2-1-1XGS-A |
| Production capacity | 1500 bottles/hour |
| Applicable bottle | 10ml penicillin bottle |
| Number of filling heads | Double headed |
| Filling method | peristaltic pump |
| Loading accuracy | ± 1% |
| Number of plugs | single head |
| Filling rate | ≥ 99% |
| Insertion method | Full insertion |
| Number of capping heads | single head |
| Capping rate | ≥ 99.5% |
| Power supply | 220V 50Hz |
| Power | 2Kw |
| Dimensions | 1800 × 1250 × 1650mm |
