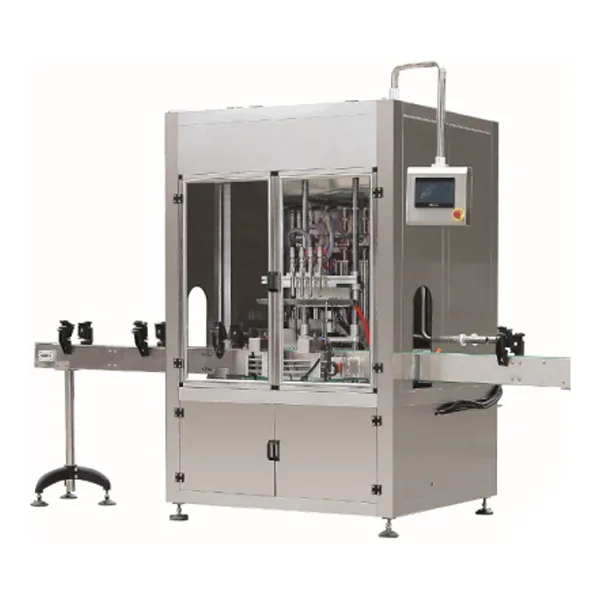

4-head Fully Automatic Liquid Filling Machine

Equipment Introduction:
1. Using a 2 ‰ high-precision Roots flowmeter paired with a high-precision pulse encoder. Taiwan Delta programmable logic controller PLC and Taiwan Weilun touch screen terminal, precise and reliable filling process;
2. Full Chinese color human-machine control interface, intuitive and easy to set device parameters;
3. The filling head is equipped with an independent vacuum return device, and the filling nozzle oil is uniformly recovered;
4. Fast and slow dual speed filling capacity, without foaming or material overflow during the filling process;
5. All electrical components are sourced from world-renowned brands, ensuring stable operation and durability;
6. The conveyor belt can operate with dual track separation, allowing for independent filling and capping, resulting in high efficiency;

Technical parameters:
1. Filling range: 100-500ml
2. Filling speed: 600-900 bottles/hour (500ml)
3. Measurement accuracy: ± 0.3-0.5% ml
4. Rated voltage: 3-phase 380V
5. Rated power: approximately 5.5Kw
6. Circuit system: Schneider from France+Delta from Taiwan
7. Working pressure: 0.6-0.8Mpa
8. Machine weight: approximately 800kg
9. Dimensions: 1300 × 1200 × 2150mm
10. Filling pipeline: all stainless steel hose

Top 10 core advantages of liquid filling machine:
1. Accurate filling without dripping or leakage
2. Easy and fast bottle replacement and adjustment
3. Compatible with multiple bottle types, one machine for multiple uses
4. Dedicated pipeline, easy to replace and clean
5. Whole machine sealing operation, safe and hygienic
6. Dual speed filling, more stable and non foaming
7. Food grade material conveying pipeline, free of plasticizer components
8. Made of high-quality stainless steel material, it is worth trusting
9. The equipment has fewer vulnerable parts and lower maintenance costs
10. Brand circuit system, durable and long-lasting
