Stainless Steel Automatic Packing Machine Rotary Type Chocolate Bean Packaging Machine


Stainless Steel Automatic Packing Machine Rotary Type Chocolate Bean Packaging Machine



Product Overview of Packaging Machine ​



Suitable for garin material, such as Melon seed, nuts, candy, Raisins, Chinese wolfberry, Red dates, Potato chips, cookies, crystal monosodium glutamate and others solid material automatic packing.


Operation Procedure

1. Bag-giving → 2. Coding → 3. Opening →4.Filling A→ 5. Filling B → 6. Heat sealing A→7.Heat sealing B→8.Forming and output



Product Parameters of Packaging Machine

Model Name	SED-200KGD-H
Packing speed	16-60 bags/min
Packing bag size	W:80-200mm L: 100-360mm
Weighing range	100-500g
Air consumption	≤0.6m³/min
Supply power	380V 50HZ 3P
Total power	6 kw
Dimensions (L*W*H)	4280 * 2210 * 3655mm
Gross Weight	1800kg+200kg+300kg
Precision	≤ ±1%



Feature of Packaging Machine



Using a computerized combination weigher and a packaging machine combined quantitative automatic packaging system, accurate measurement, fast packaging speed, stable operation, low error and low noise. The material meets the sanitary requirements of food packaging, the sealing effect is good, and the operation is simple. This hoist is suitable for vertical hoisting of granular materials in grain, food, feed and chemical sectors. Widely used in food packaging and other industries, applicable to a wide range of industries

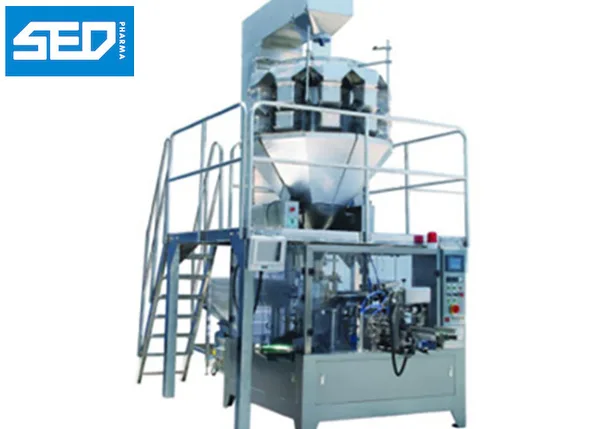

Product Show of Packaging Machine



Application of Packaging Machine



Various powders, such as milk powder, coffee, spices, additives, washing powder, seasonings, powdered sugar, coffee powder, wheat flour, washing powder, coconut flour, etc.
