Stainless Steel 304 Pharmaceutical Automatic Packing Machine Syringe Horizontal Pillow Packaging Machine

Stainless Steel 304 Pharmaceutical Automatic Packing Machine Syringe Horizontal Pillow Packaging Machine



Machine Parameters of Automatic Packing Machine​

Model	SED-250ZB
Capacity	30-150 (bags/minute)
Packing size	L(65-190)×W(30-180)×H(5-60)mm
Max width of the foil	400mm
Power	AC220V 50HZ 2.4KW
Weight	700kg
Dimension	4000×800×1550mm



Product Description of Automatic Packing Machine​

This machine is on the base of multifunctional pillow-type Automatic Packing Machine and it is widely absorbing the advance technology from abroad and combing the real conditions at home.



strictly according to "GMP" requirements,this machine is a pioneering product in China which has been designed and developed specially for packing plasters,the machine collects jobs of making bags,plasted plaster,sealing four side, cutting, and packing product out-put, finished them a time.



It adopts controller to program operation, set of around photoelectric correct an error, two way compensation color code aligning, four sets of temperature controlled, cased freely ect.



The successful trial production of this machine has end the history of packing bags by hand.This machine is excellent in performance and high in technology content,which is the first choice of equipment for packing plasters automatically.



Advantages of Automatic Packing Machine​

1) Programmable control: It adopts PLC programmable controller to make running of the whole machine programmed.

2) Electronic Text Display: The information of the speed of machine,the set bag-length and the actual bag length and the packing output will be clearly displayed on the screen of display.

3) Automatic regulating of bag length: The alternation of packing length can be directly set through the display.It is very convenient and quick with an automatic adjustment.

4) Two-way compensation of Colour Code Detection: It adopts Imported photoelectric detecting sensor to detect the color code and can conduct automatic tracking through PLC computer program combined with two-way compensating mechanism,thus making the color code detection quick and accurate.

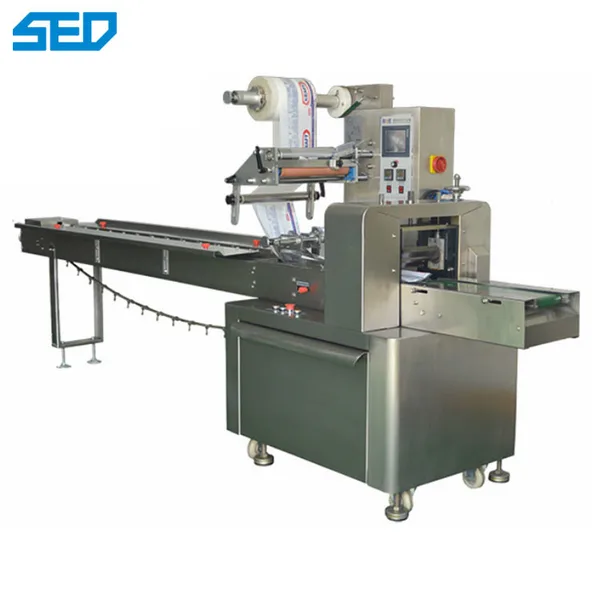

Products Show of Automatic Packing Machine



Application of Automatic Packing Machine



Mainly used for the packaging of various regular and solid products such as cakes, breads, biscuits, candies, chocolates, daily necessities, facial masks, chemical products, medicines, hardware, etc.
