Small Spray Drying Machine Pharmaceutical Machine With Centrifuge Nozzle

Name: Small Spray Drying Machine Pharmaceutical Machine With Centrifuge Nozzle
Brand: SED Pharma

Small Spray Drying Machine Pharmaceutical Machine With Centrifuge Nozzle Product Description of Sprying Drying Machine This Lab spray dryer has Stainless steel shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as emulsion, suspending liquid, liquor and so on. Product Parameters of Sprying Drying Machine Item Unit TP-S15 TP-S50 TP-S100 Max capacity ml/h 1500-2000 5000

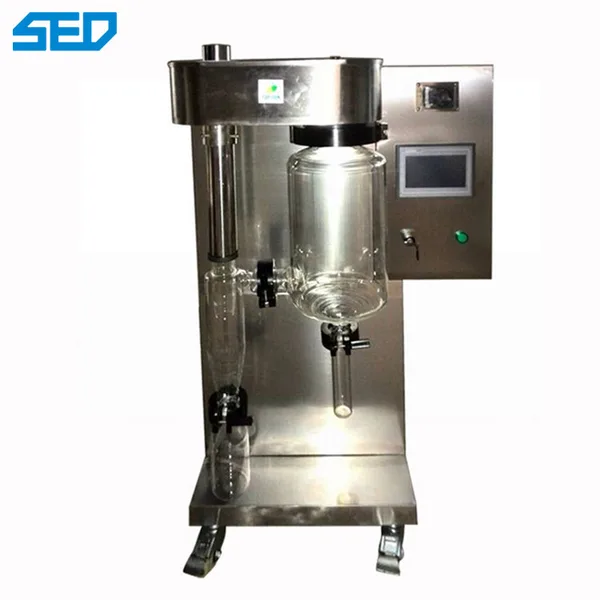

Small Spray Drying Machine Pharmaceutical Machine With Centrifuge Nozzle, view 1

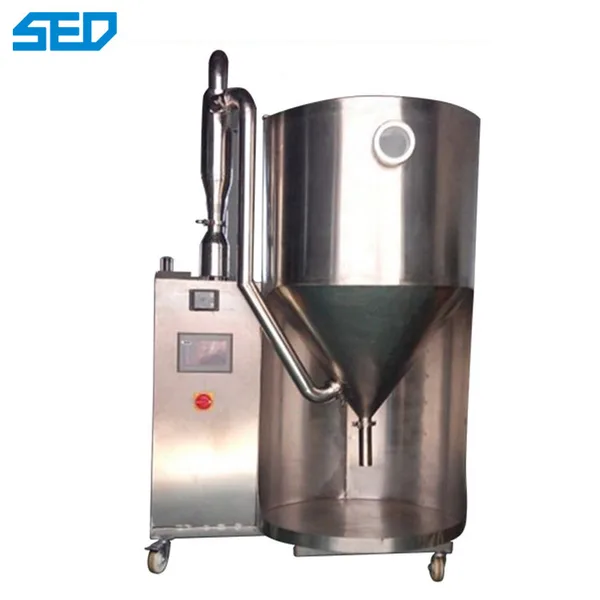

Small Spray Drying Machine Pharmaceutical Machine With Centrifuge Nozzle, view 2

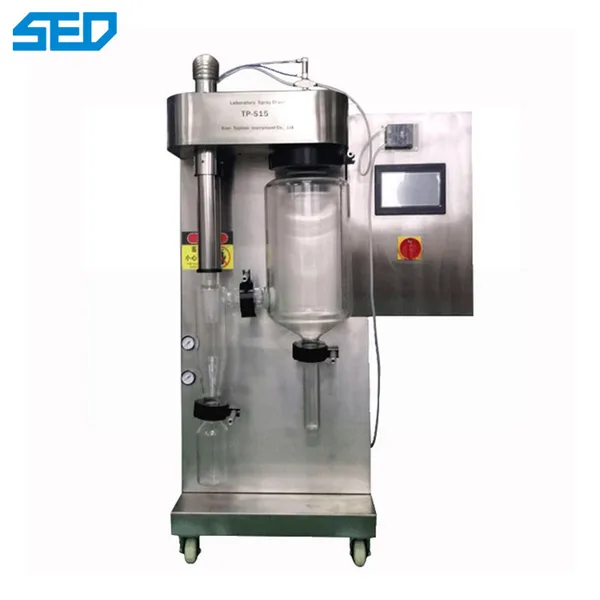

Small Spray Drying Machine Pharmaceutical Machine With Centrifuge Nozzle, view 3

Small Spray Drying Machine Pharmaceutical Machine With Centrifuge Nozzle, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Small Spray Drying Machine Pharmaceutical Machine With Centrifuge Nozzle
Precision of temp Dryer time: ±1 1.0 ~ 1.5
Nozzle size: 0.5/0.7/0.75/1.0/1.5/2.0
Heat source: Electric
material: stainless steel
key word: Spray Drying Machine

Small Spray Drying Machine Pharmaceutical Machine With Centrifuge Nozzle

Product Description of Sprying Drying Machine

This Lab spray dryer has Stainless steel shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as emulsion, suspending liquid, liquor and so on.

Product Parameters of Sprying Drying Machine

Item	Unit	TP-S15	TP-S50	TP-S100
Max capacity	ml/h	1500-2000	5000	10000
Temperature range of inlet air	℃	40℃ ~ 300℃	140°C ~ 300°C Adjustable	50°C ~ 300°C
Temperature range of outlet air	℃	80℃ ~ 90℃	80°C ~ 90°C	80°C ~ 90°C
Spray system	/	Two-fluid nozzle	Centrifugal nozzle	Centrifugal nozzle
Precision of temp	℃	±1
Dryer time	S	1.0 ~ 1.5
Speed of squirt pump	ml/h	50 ~ 2000	5000	10000
Nozzle size	mm	0.5/0.7/0.75/1.0/1.5/2.0
Spray direction	/	Downwards co-current
Heater Power	/	3500W	6800W		12000W
Total power	/	4500W 220V	9000W 380V		22000W 380V
Heat source	/	Electric
Air compressor	/	Built-in oil-free air compressor
Dried powder restoring rate	%	≥95		≥98
Dimension	mm	*9408501500*	18009302200	250016002800
Maximum moisture evaporation	Kg/h	2	5	10

Advantages of Sprying Drying Machine

1. Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.

2. Imported Schneider electrical components which is more stability.

3. PLC control system, make your research more easier and efficient.

4. Build in oil-free air compressor, without any noise.

5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.

6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.

7. Innovative tower wall purging device, improves the material recycling rate.

8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.

9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.

10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
