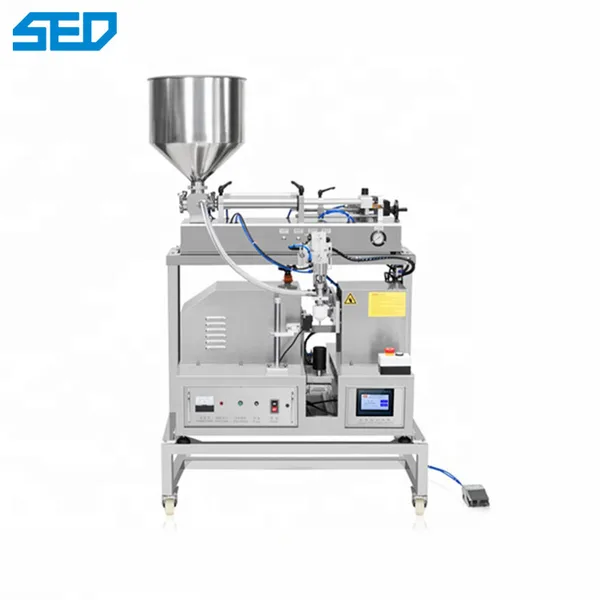

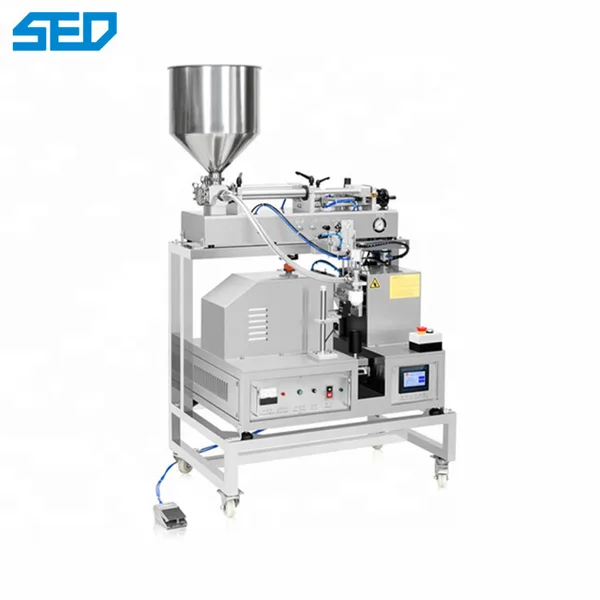

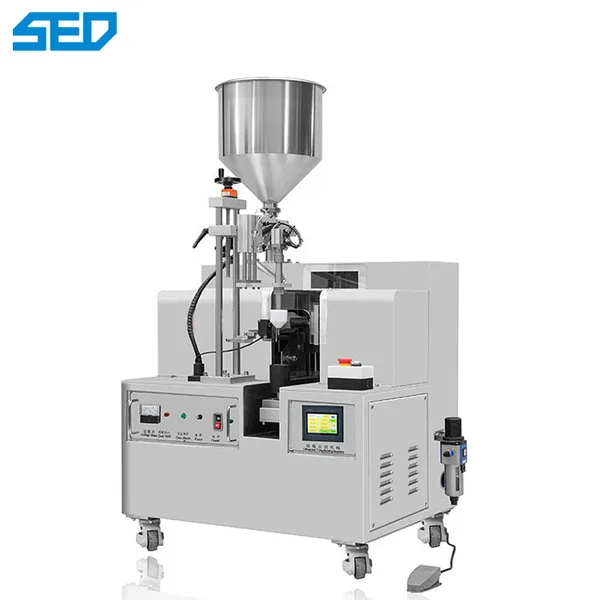

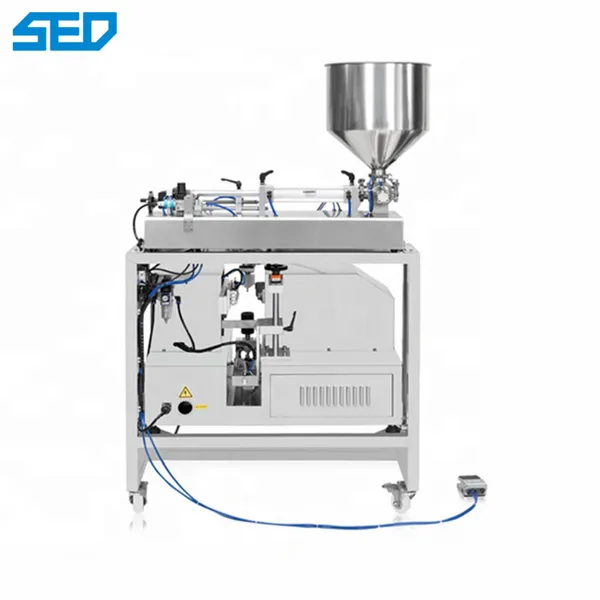

Semi Auto Pharmaceutical Machinery Equipment Cosmetic Cream Ointment Hose Filling Sealing

Product description of Hose Filling Sealing Machine



It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing.

Extensional organization of the machine is made of aluminium alloy and stainless steel.



Auto Tube Orientation

Using high sensitivity Japan-Imported Panasonic infrared positioning system, plastic tube will be turning to right side according to the mark on the tube



Auto Cutting Function

It's with the function of automatically cutting after sealing and coding, in which guarantee the tube tail more beauty. Extensional organization of the machine is made of aluminium alloy and stainless steel.

Panel technology of capsule filling machine:



There is a material groove on the panel of semi-automatic capsule filling machine, we do not use welding process, invested in the technology research and development of the hydraulic drawing mold, with 2,000 tons of hydraulic press drawing forming, finished product silk road clean, the whole without dead corners, and the original process is a world of difference.Only such products will make customers more satisfied and practical.



Other manufacturers in the industry are using stainless steel wire-drawing plate cutting splice argon arc welding after manual polishing, this process has the following defects:



1. After the welding scar is manually trimmed, there will still be uneven phenomenon, which is difficult to achieve smooth and smooth;

2. There will be a big difference between the silk road after manual polishing and the original panel, the whole is not beautiful



Product Parameters of Hose Filling Sealing Machine

Filling&Sealing speed	15-25pcs/min
Diameter of tube	10-50mm
Height of tube	50-250mm
Filling capacity	25-250ml
Ultrasonic frequency	20KHZ
Voltage	AC220V/110V,HZ/60HZ50
Power	1800W
Size	860*680*1550mm
Weight	180kg



main parameter



1. It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing.



2. Extensional organization of the machine is made of aluminium alloy and stainless steel.



3. The working platform is easily to operate that is independent man-machine operating interface and can be two dimension direction adjustment.



4. The ultrasound power supply adopts Taiwan movement circuitry, ultrasound parts use famous brands.



5. It's with the function of overload protection, phase difference protection, and power-fail protection



6. The ultrasound output power is big enough to ensure the sealing quality of different kinds material and specifications soft tubes.



7. It's with the function of automatically cutting.



Application of Hose Filling Sealing Machine

This machine is suitable for filling, sealing, printing and cutting of various specifications of plastic pipes.
The shape of the end seal is beautiful and neat, the seal is firm, the measurement accuracy is high, and the stability is good.
The mixing hopper and bottom filling system can be heated according to the viscosity of the customer's material.
