Automatic Packing Machine

SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers

Name: SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers
Brand: SED Pharma

SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers Product Description of Automatic Packing Machine Facial Mask Packing Machine with Hopper(support both regular and irregular shape bags),Automatic under the bag, filling, sealing, coding and output.Contact with the material made of 316 stainless steel, it meet GMP standards.Fully automatic production efficiency, reduce labor costs Product Parameters of Automatic Packing Machine Bag size L: 80-200mm , W: 90-180mm (L*W) Mask material 2layers: 20~60g/㎡ spun-lace non-woven +polypropylene n

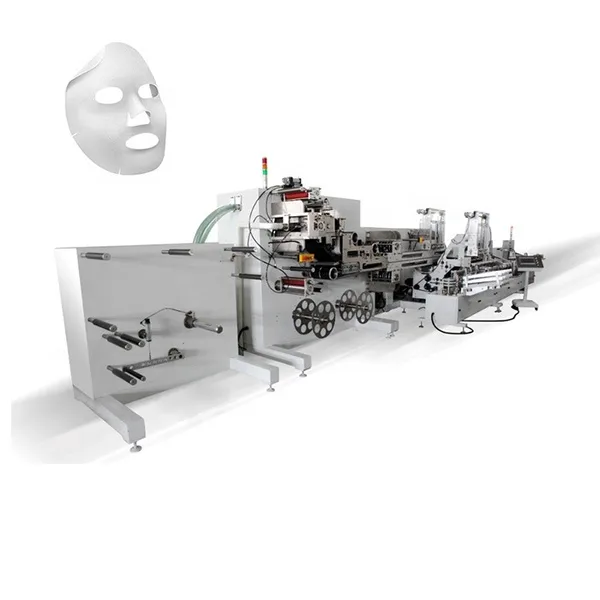

SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers, view 1

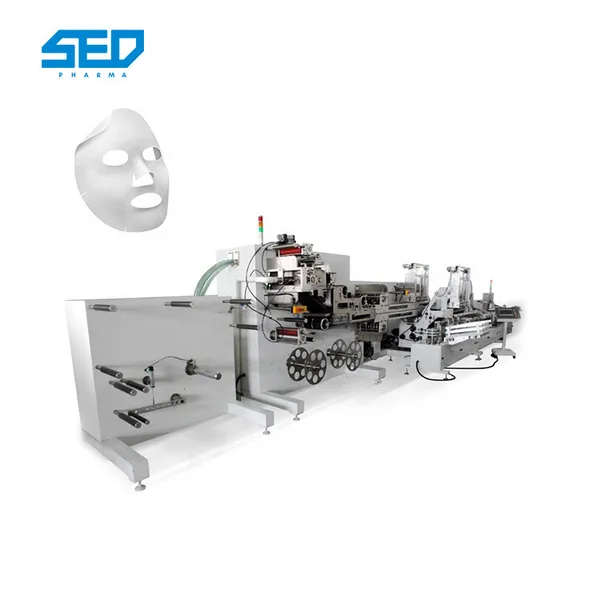

SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-400MZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers
Bag size: L: 80-200mm , W: 90-180mm (L*W)
Mask unfolded Size: L (230mm~260mm) W (230mm~260mm)
Production Speed: 50-60 bags/Minute
Liquid capacity: 0~60ml(Accuracy: ±10%)
Power Supply: 380V 50/60Hz Three phase 9.0Kw
Machine Weight: 5000Kg
Machine size: L5800mm×W3100mm×H2200mm(based on two layers)
material: stainless steel
key word: Automatic Packing Machine

SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers

Product Description of Automatic Packing Machine

Facial Mask Packing Machine with Hopper(support both regular and irregular shape bags),Automatic under the bag, filling, sealing, coding and output.Contact with the material made of 316 stainless steel, it meet GMP standards.Fully automatic production efficiency, reduce labor costs

Product Parameters of Automatic Packing Machine

Bag size	L: 80-200mm , W: 90-180mm (L*W)
Mask material	2layers: 20~60g/㎡ spun-lace non-woven +polypropylene nonwoven fabric/pearl film
1layers: 40-60g/m2 spunlace nonwoven or 100% cotton	10-58 ml *pump capacity is optional
Custom made is available	H (75mm~225mm) W (75mm ~200mm)
Packing Material	material roll,such as CPP,PE,BOPP compound film, aluminum foil, paper film
Mask material	10-60pouches/min(The speed depends on the product status and filling weight)
Roll Diameter	Inner roller Φ 75mm
1.Spunlace nonwoven max Φ1200mm( suggestion Φ800mm~1000mm)	0-300℃(adjustable)
2.Pearl film max Φ1200mm(suggestion Φ400mm)	380V 50HZ 3.5KW, Three Phase
3.Polypropylene nonwoven fabric max Φ1200mm(suggestion Φ800mm~1000mm)	0.25 m3/min
4. Max Roll Width 285mm	0.6Mpa
Mask unfolded Size	L (230mm~260mm) W (230mm~260mm)
Production Speed	50-60 bags/Minute
Liquid capacity	0~60ml(Accuracy: ±10%)
Air Consumption	700L/min
Power Supply	380V 50/60Hz Three phase 9.0Kw
Machine Weight	5000Kg
Machine size	L5800mm×W3100mm×H2200mm(based on two layers)
