Automatic Packing Machine

SED-200KGD 8 Working Stations Automatic Pouch Machine Packing Machine For Dried Fruits / Nuts

Name: SED-200KGD 8 Working Stations Automatic Pouch Machine Packing Machine For Dried Fruits / Nuts
Brand: SED Pharma

SED-200KGD 8 Working Stations Automatic Pouch Machine Packing Machine For Dried Fruits / Nuts Product Description of Packing Machine Suitable for garin material, such as Melon seed, nuts, candy, Raisins, Chinese wolfberry, Red dates, Potato chips, cookies, crystal monosodium glutamate and others solid material automatic packing. Product Parameters of Packing Machine Working position eight-working position Pouch material Laminated film Pouch pattern stand-up pouch with zipper Pouch size W:100-210mm L:100-350mm Filling Scope 10-1000g Weighing Accuracy ±0.1-2g Speed 10-45

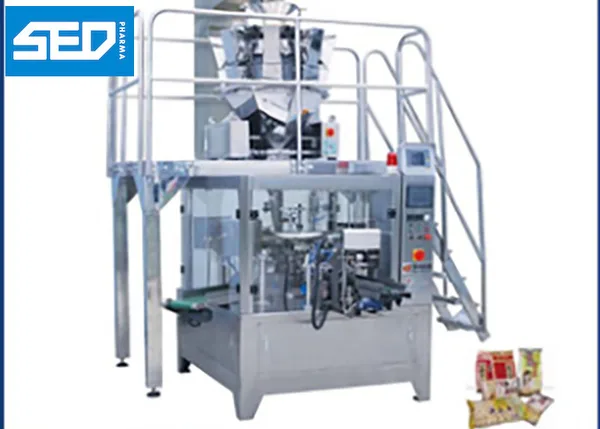

SED-200KGD 8 Working Stations Automatic Pouch Machine Packing Machine For Dried Fruits / Nuts, view 1

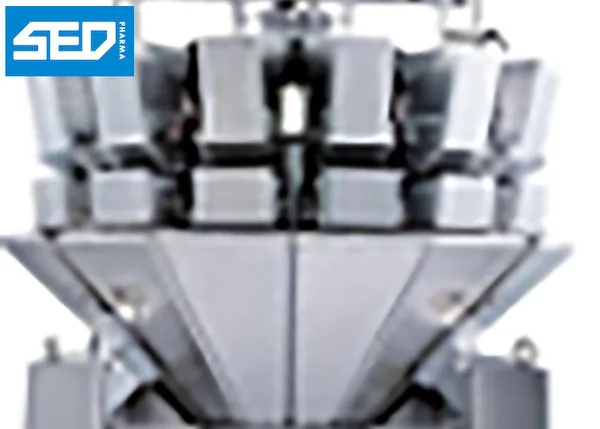

SED-200KGD 8 Working Stations Automatic Pouch Machine Packing Machine For Dried Fruits / Nuts, view 2

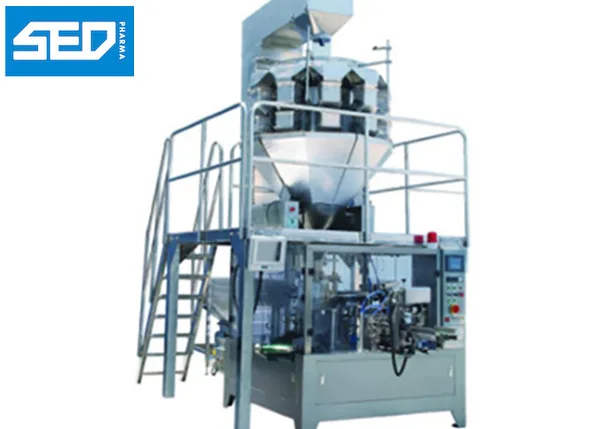

SED-200KGD 8 Working Stations Automatic Pouch Machine Packing Machine For Dried Fruits / Nuts, view 3

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-200KGD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	45 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: SED-200KGD 8 Working Stations Automatic Pouch Machine Packing Machine For Dried Fruits / Nuts
Power: 4.2kw
Speed: 10-45pouches/min
Weighing Accuracy: ±0.1-2g
Voltage: 380V 50HZ/60HZ Three Phase
Compress air: 0.6m3/min
Pouch width: 100-210mm
Pouch length: 100-350mm
material: stainless steel
key word: Automatic Pouch Machine Packing Machine

SED-200KGD 8 Working Stations Automatic Pouch Machine Packing Machine For Dried Fruits / Nuts

Product Description of Packing Machine

Suitable for garin material, such as Melon seed, nuts, candy, Raisins, Chinese wolfberry, Red dates, Potato chips, cookies, crystal monosodium glutamate and others solid material automatic packing.

Product Parameters of Packing Machine

Working position	eight-working position
Pouch material	Laminated film
Pouch pattern	stand-up pouch with zipper
Pouch size	W:100-210mm L:100-350mm
Filling Scope	10-1000g
Weighing Accuracy	±0.1-2g
Speed	10-45pouches/min(The speed depends on the product status and flling weight)
Voltage	380V 3phase 50HZ/60HZ
Total power	6.5KW
Compress air	0.6m³/min(supply by user)

Features of Packing Machine

1. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.

2. It matchs with the glass safty door. The machine will stop working when you open the door. So that it could protect the safty of operators. At the same time, it could prevent dust.

3. Use the plastic bearing, don’t need put on oil, less pollution.

4. Use no oil vacuum pump, avoid polluting the environment in the production.

5. The opening zipper framework is special in the feature of zipper bag,it can avoid distortion or destroy when opne the zipper

6. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification

Products Show of Packing Machine
