PLC Controlled Pharmaceutical Dryers Industrial Liquid Spray Drying Machine

PLC Controlled Pharmaceutical Dryers Industrial Liquid Spray Drying Machine



Description of Fluid Bed Drying Machine



Liquid spray drying technology is shaping and drying of the most widely used industrial process. Ideal for the solution, emulsion, suspension and paste liquid plastic raw materials generated in the powdery, granular or massive solid products.



Therefore, when the particle size distribution of the finished product, residual moisture content, bulk density and particle shape must meet precise standards. Spray drying is a very good process.



Product Parameters of Fluid Bed Drying Machine

Item	Specification
Water Evaporation	5kg/h
Method of Atomizing	High Speed Centrifugal Atomizer (mechanical drive or stepless frequency speed regulation is available)
Revolution of atomizer(rpm)	25500
Diameter of Atomizing disc (mm)	60
Dried Powder Recovery Rate (%)	Around≥95
Length of Covered Area(m)	1.6
Width of Covered Area(m)	1.1
Height of Tower Body(m)	2.2
Hoisting height of Nozzle(m)	1.8
Air input Temp	160~200℃
Air output Temp	70~90℃
Tower Height	1750mm
Induce Fan Power	3 kw
Air Blower Fan Power	2 kw
Feeding pump power	1 kw
Nebulizer Power	2 kw



Feature of Fluid Bed Drying Machine​



1) Drying speed, the surface area of liquid greatly increased after atomizing



2) In the hot air flow, 95% - 98% of the moisture can be evaporated instantly, and the drying time is only a few seconds. It is especially suitable for the drying of heat sensitive materials.

3) The product has good uniformity, fluidity and solubility.

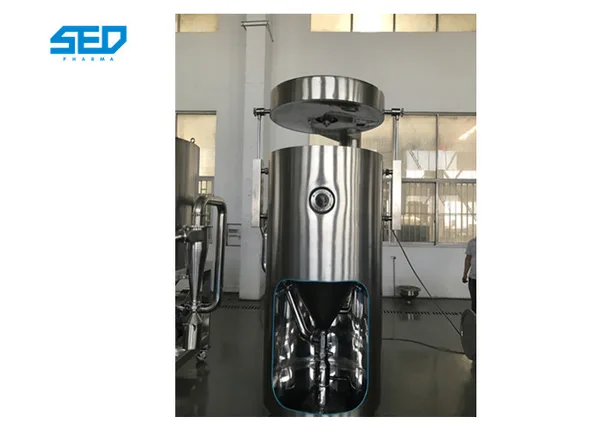

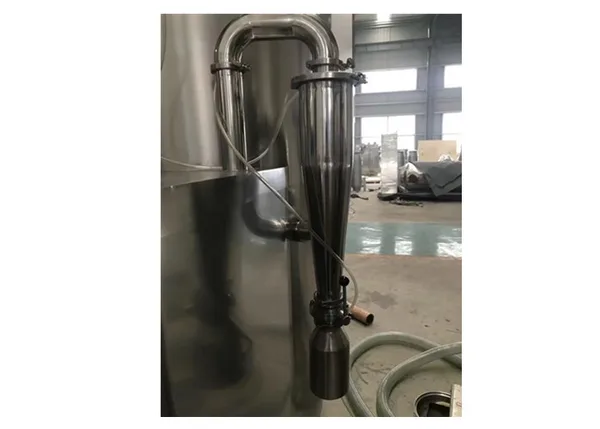

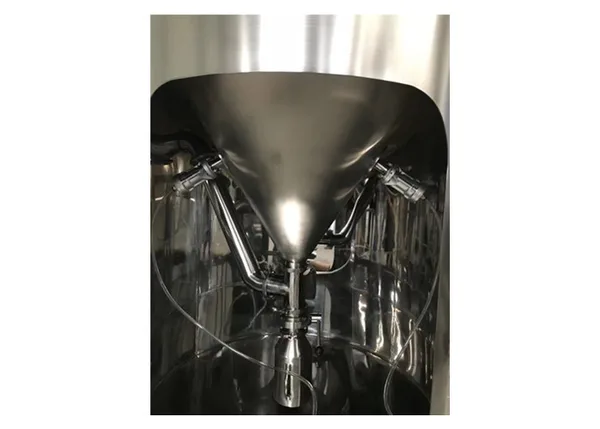

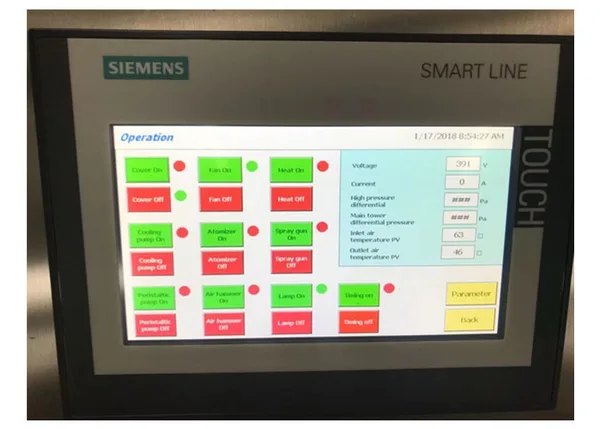

Product Show of Fluid Bed Drying Machine



Application of Fluid Bed Drying Machine
