Plastic Perfume Box Film Folding Automatic Cellophane Wrapping Machine

Plastic Perfume Box Film Folding Automatic Cellophane Wrapping Machine



Product Parameters of Packaging Machine

Packing speed	10-35 box/min
Packing size(L*W*H)	(300-80)*(200-50)*120- 30)(mm)
Packing material	BOPP PVC
Thickness	0.021-0.028mm
Sealing temperature	100-150℃
Working pressure	≥0.3MPa
Diameter of bore	75mm
75mm	According to the packing size selection
Total power	3.5KW
Power supply	50HZ/AC380V
External dimensions(L×W×H)	2000-1000-1400mm
Weight	600kg

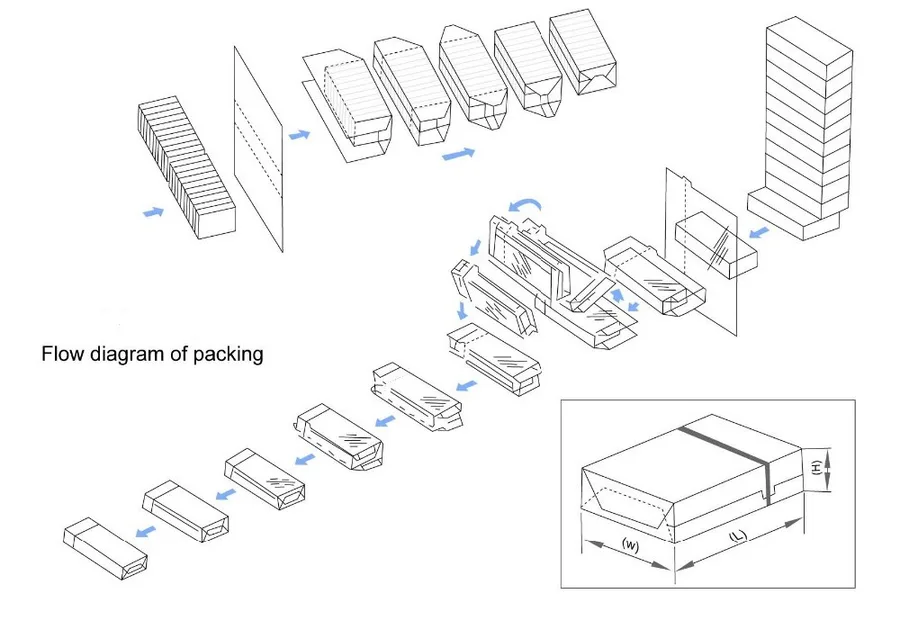

Working Principle of Packaging Machine



The working principle of the machine is based on the mechanical linkage structure as the main body, relying on a series of cams inside the machine to drive the connecting rods and working parts to complete.



Using the principle of body-fitted wrapping multi-functional digital frequency conversion stepless speed regulation: PLC programmable control design technology, to achieve heat sealing, shaping, temperature automatic control, automatic feeding.



The touch screen is used to realize the man-machine interface, which can complete the functions of programming setting, control operation, tracking display, emergency stop of failure and so on.



This machine is a highly intelligent packaging equipment which integrates light, machinery, electricity, gas and instrument.



It has the characteristics of compact structure, beautiful appearance, small size, light weight, super silence, good energy saving and material saving effect, advanced technology and so on. It is included in Zhejiang high-tech products.



Feature of Packaging Machine



Purpose and applicability of packaging

The packaging machine uses environmentally friendly OPP or BOPP film to enter cardboard boxes of different specifications.

General equipment for three-dimensional packaging. It is suitable for transparent film packaging of drugs/health care products/ cosmetics/ cigarettes/ tea/ food/ poker/ VCD and has four advantages



after packaging:
(1) The sealing moisture-proof/dust-proof effect is good.

(2) Easy to unpack, as long as the unpacking cable (easy-to-pull cable) can be unpacked in a circle.

(3) Anti-counterfeiting, can print pictures or trademarks on the easy-to-pull line to identify authenticity.

(4) Packaging can improve product quality culture/added value/grade and decoration quality.



Product Show of Packaging Machine​



Application of Packaging Machine



This cellophane packaging machine is widely used in single-box automatic packaging of various box-type items in cigarettes, medicines, condoms, health products, cosmetics and other industries.
