Pharmaceutical Sugar Coating Machine Large Capacity Automatic Water Nut Type

Pharmaceutical Sugar Coating Machine Large Capacity Automatic Water Nut Type



Product Parameters of Coating Machine

Items Model				SED-600JB
Max. tablet volume				50-70Kg / time
Boiler diameter				1000mm
Clockwise angle α (adjustable)				15˚~45˚
Boiler rotating speed				32r/min
Main motor power				1.5kw
Fan motor power				370w
Electric oven wire power				4KW
Hot air outlet temperature (℃)				50~60
Machine weight				300KG



Working Principle  of Coating Machine



This machine has the advantages of simple and easy operation, smooth, bright, delicate, one-sided saving accessories, maintenance is simple, it is the first choice of ideal equipment for experiment.



This machine suits for sugar and film coating for Chinese medicine and Western medicine. It consists by the host (sugar coating machine), controllable hot air system, automatic liquid gas spray system etc. The variable frequency speed of the main motor is adjustable.



The coating material will be coated in the surface of the tablet with high atomizing spray accessories automatically, the tablets in the coating pan for will be continuous complex movement, so that the coating liquid evenly wrapped in each tablet. There is hot air which can be controllable will dry the tablet.

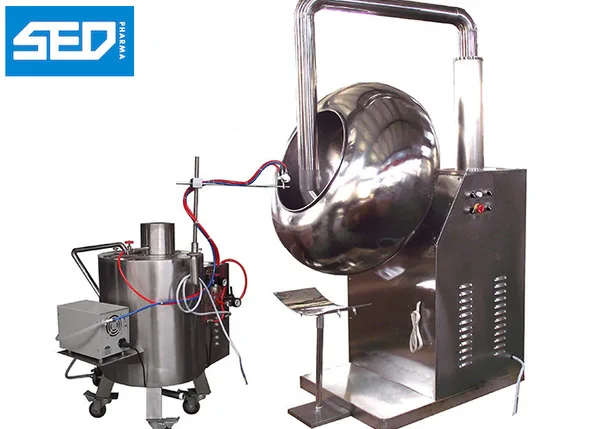

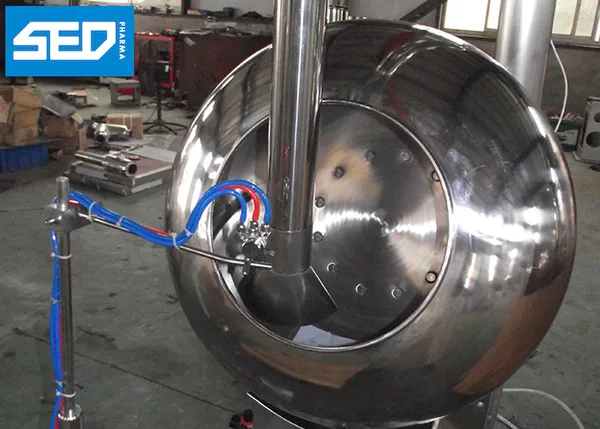

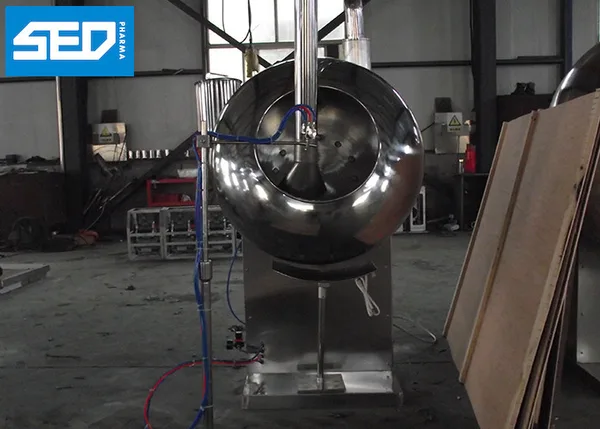

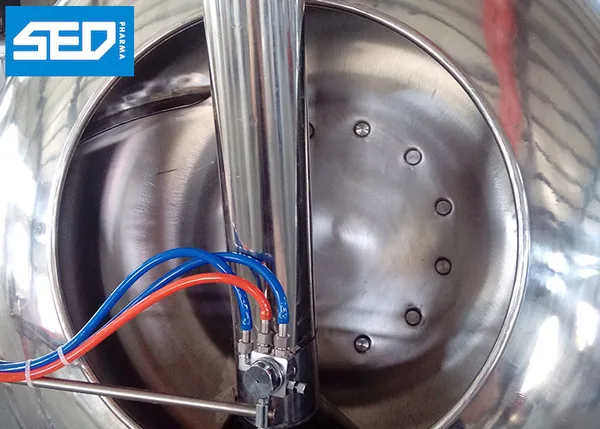

Show of Coating Machine





Application of Coating Machine



Water nut type sugarcoating machine is mainly used to press shaped slice, pill and the coating of granules in pharmaceutical industry, and also used for candy manufacturing or coating in foodstuff industry.



Sugarcoated tablets after polishing coating have polished surface, which can prevent oxidation, damping or volatilization, in addition, it can envelop bad smell and enable the drug to be conveniently identified and slow dissolution in the intestines and stomach.
