Pharmaceutical Dryers

Pharmaceutical Fluidized Bed Granulation Dryer

Name: Pharmaceutical Fluidized Bed Granulation Dryer
Brand: SED Pharma

Freeze Dry Machine Pharmaceutical Fluid Bed Dryer Granulator Product Description of Fluid Bed Dryer Granulator The fluidized granulator is a new craft set combining the fluidized bed technology and spraying technology to make granules in medical industry, foodstuff, chemical industry and so on. Machine Parameters of Fluid Bed Dryer Granulator TYPE SED-700GFZ-H Volume(L) 1500 Wind motor power(KW) 45 Processing Amount (KG/batch) 300-700 Consumption(m3/min) 451 Compressed air 0.6 MPa Temperature(℃) 0-120℃ Steam expenditure (KG/H) 451 Advantages of Fluid Bed Dryer Granulator (1

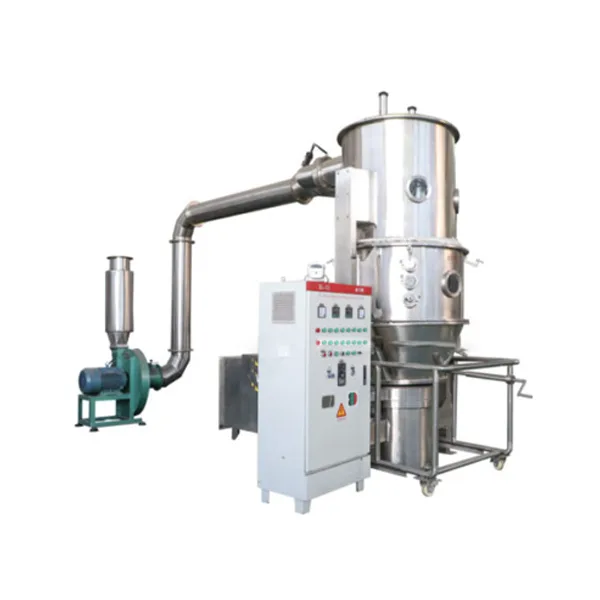

Pharmaceutical Fluidized Bed Granulation Dryer, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-700GFZ-H

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Product Name: Fluidized Bed Granulator/ Fluid Bed Dryer
TYPE: SED-700GFZ-H
Wind motor power(KW): 45
Volume(L): 1500
Processing Amount (KG/batch): 300-700
Consumption(m3/min): 451
Steam expenditure (KG/H): 451
Temperature(℃): 0-120℃
material: stainless steel

Freeze Dry Machine Pharmaceutical Fluid Bed Dryer Granulator

Product Description of Fluid Bed Dryer Granulator

The fluidized granulator is a new craft set combining the fluidized bed technology and spraying technology to make granules in medical industry, foodstuff, chemical industry and so on.

Machine Parameters of Fluid Bed Dryer Granulator

TYPE	SED-700GFZ-H
Volume(L)	1500
Wind motor power(KW)	45
Processing Amount (KG/batch)	300-700
Consumption(m3/min)	451
Compressed air	0.6 MPa
Temperature(℃)	0-120℃
Steam expenditure (KG/H)	451

Advantages of Fluid Bed Dryer Granulator

(1) it has four functions: Mixing, drying, granulating and coating. it can make powder material into granules by one step directly, dry the material, and quickly fluidizing granulate.

(2) under airtight negative pressure condition, clearance, no dead angle.

(3) making use of the fluidized material as wet sticky thing to make granules can save much alcohol and

bring down the cost, and can produce small, no sugar or low sugar medical particle.

(4) the final products can be easy fusion and decomposed.

Product Show of Fluid Bed Dryer Granulator

Pharmaceutical Fluidized Bed Granulation Dryer product detail
