Pharmaceutical Fluid Bed Granulator Pelletor Coater Machine For Powder Materials



Pharmaceutical Fluid Bed Granulator Pelletor Coater Machine For Powder Materials



Product Parameters of Fluid Bed Drying Machine​

Number	Item	Unit	Model/specification
1	Productive capacity	Kg/batch	15
2	Power of fan	Kw	7.5
3	Electric heater	Kw	15
4	Total power	Kw	22.5
5	Pressure of compressed air	Mpa	0.45
6	Consumption of compressed air	M3/min	0.6



Function feature and the principle of Fluid Bed Drying Machine



This machine is suitable for granulating, &coating for powder/granules/ in container by spray binder/coating material.



The principle of action is based on: Put the powder material into the fluid bed. The cold air is drawn into the fluid bed through the pre, middle and final filters (HEPA) and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater.



The material is fluidized in the fluid bed regularly as turbojet. The binder for granulating/coating material is delivered to the nozzle by the liquid pump, which is sprayed to the fluidized material after being sheared into droplets by air.



The evaporating moisture is drawn out by the fan.

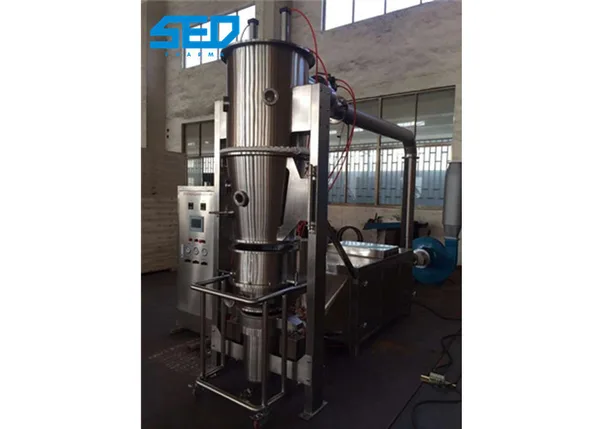

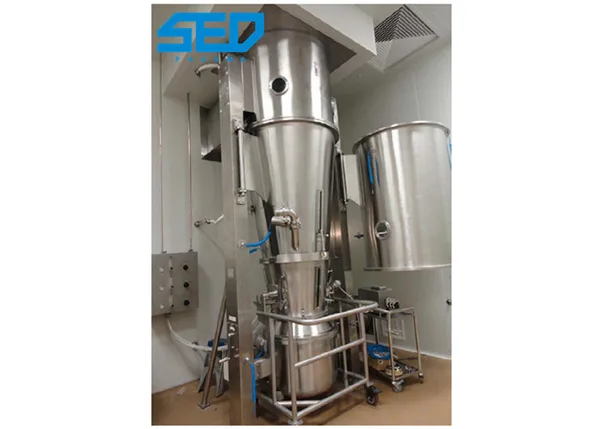

Product Show of Fluid Bed Drying Machine



Application of Fluid Bed Drying Machine​
