Powder Granulator Machine

Pharma Industry High Speed Super Mixing And Granulation Machine Wet Powder Use

Name: Pharma Industry High Speed Super Mixing And Granulation Machine Wet Powder Use
Brand: SED Pharma

Pharma Industry High Speed Super Mixing And Granulation Machine Wet Powder Use Product Parameters of Wet Mix Granulator Machine Volume 200L Working volume 60-150L Output 30-75kgs/batch Operating time Mixing:2min Granulation:7-14min/batch Size of the finished granule Φ0.14-Φ1.5mm(12mesh-100mesh) Mixing Speed 30-260rpm Mixing power 15kw Granulation Speed 50-3000rpm Granulation power 4kw Air compressor 0.5m³ 0.7Mpa (prepared by buyer) Inlet of cooling water and compressed air Φ10mm Dimension 2180×810×1950mm Weight 1350kg Purpose of Wet Mix Granulator Machine The gran

Pharma Industry High Speed Super Mixing And Granulation Machine Wet Powder Use, view 1

Pharma Industry High Speed Super Mixing And Granulation Machine Wet Powder Use, view 2

Pharma Industry High Speed Super Mixing And Granulation Machine Wet Powder Use, view 3

Pharma Industry High Speed Super Mixing And Granulation Machine Wet Powder Use, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-200SZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	25 Sets per Month

Request configuration

Configuration and product details

Technical overview

Name: Pharma Industry High Speed Super Mixing And Granulation Machine Wet Powder Use
Item Name: Powder Granulator Machine
Total volume: 200L
Capacity: 30-75kgs per batch
Mixing time: 2 Minutes
Granulation time: 7-14 Minutes
Dimension: 2180×810×1950mm
Weight: 1350kgs
material: stainless steel
key word: Wet Mix Granulator Machine

Pharma Industry High Speed Super Mixing And Granulation Machine Wet Powder Use

Product Parameters of Wet Mix Granulator Machine

Volume	200L
Working volume	60-150L
Output	30-75kgs/batch
Operating time	Mixing:2min Granulation:7-14min/batch
Size of the finished granule	Φ0.14-Φ1.5mm(12mesh-100mesh)
Mixing Speed	30-260rpm
Mixing power	15kw
Granulation Speed	50-3000rpm
Granulation power	4kw
Air compressor	0.5m³ 0.7Mpa (prepared by buyer)
Inlet of cooling water and compressed air	Φ10mm
Dimension	2180×810×1950mm
Weight	1350kg

Purpose of Wet Mix Granulator Machine

The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.

Feature and simple introduce of Wet Mix Granulator Machine

1) It is the structure of horizontal cylinder (cone).

2) Full sealed driving shaft, to use water when cleaning.

3) Fluidization granulation, the finished granules are similar to roundness with good liquidity.

4) Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.

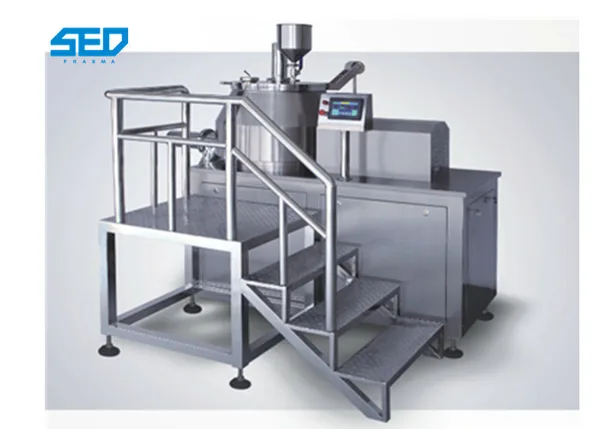

Products Show of Wet Mix Granulator Machine

Pharma Industry High Speed Super Mixing And Granulation Machine Wet Powder Use product detail

Application of Wet Mix Granulator Machine

1. Pharmaceutical industry prescription medicinal granules, tape granules, antibiotic granules filled capsules, antibiotic granules, animal medicinal granules, and powder dialysis preparations.

2. Food industry - granular spicy condiments, granular snacks, granular health food, instant food, spices, dairy granules, health care products.

3. Chemical and other categories, cosmetics, medicine, pesticides, feed chemicals, detergents.

4. Metallurgical particles such as ferrite talc, porcelain materials, oil-impregnated bearings, and magnetic materials in electrical industry and machinery industry.

5. Various plastic products such as phenol, urea, melamine, epoxy resin particles in the plastics industry.

6. Grinding of chemical industry and other industrial catalysts, fertilizers, feeds, coatings, cosmetics, flour particles, etc.

Pharma Industry High Speed Super Mixing And Granulation Machine Wet Powder Use product detail
