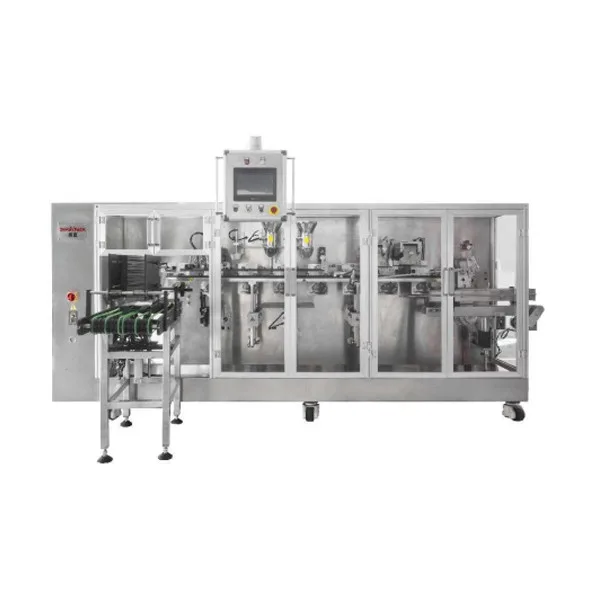

Multiple Auatomatic Packing Machine Horizontal FFS Packaging Machine With Zipper

Multiple Auatomatic Packing Machine Horizontal FFS Packaging Machine With Zipper



Product Overview



This is a standardized flexible prefabricated bag filling equipment. On the basis of minimizing cost, it has a larger adjustment range and high cost-effectiveness.

This equipment is horizontal prefabricated bag packaging equipment. Suitable for Pet food, seasoning food, dried fruit, candy, Oatmeal, etc.

You can choose between single column or multi column working methods. When selecting the multi column work bag method, each machine operation cycle can generate multiple small bags simultaneously. The maximum speed can reach 100 PPM.

To ensure high-speed packaging capacity, the machine is equipped with two measuring device workstations, which can be expanded to up to four measuring device workstations. Multiple or multiple single material measurements can be performed.

The SG series packaging equipment adopts a simple design concept, and its selected accessories can be produced and operated 24 hours a day, with the minimum maintenance cost and simple and easy to use characteristics. It is an ideal choice when small batch and multi specification packaging adjustments are needed.

The equipment adopts an integrated cabinet and an independent 15 inch operation panel, with electrical control integrated in the rack. Using Delta as the standard control system, you can also choose brands such as BECKHOFF or Allan Bradley.



Product Parameters

Model	SED-240WGD-V	SED-320WGD-V	SED320WGD1-V	SED-420WGD-V	SED-540WGD-V
Minimum bag size	120×150	120×150	120×150	70×120	120×150
Maximum bag size	240×350	320×350	160+160×350	110×210	270+270×350
Maximum volume	1500ml	3000ml	1000ml	200ml	3000ml
High speed	40	40	100	160	80
Consumption power	5Kw	16Kw	18Kw	30Kw	28Kw



Application of Packaging Machine
