Film Coating Machine

Multifunction Pharmaceutical Food Peanuts Lab Tablet Film Coating Machine

Name: Multifunction Pharmaceutical Food Peanuts Lab Tablet Film Coating Machine
Brand: SED Pharma

Multifunction Pharmaceutical Food Peanuts Lab Tablet Film Coating Machine Product Description of Film Coating Machine This machine is a special equipment suitable for water phase thin film coating and organic film surface coating for Chinese and western tablets, pills, etc. It is the interchangeable type coating machine that improvement based on the standard coating machine, one machine can achieve different batches of production, widely used in the pharmaceutical, biological scientific research and food industries. Parameter of Film Coating Machine Items Model SED-1

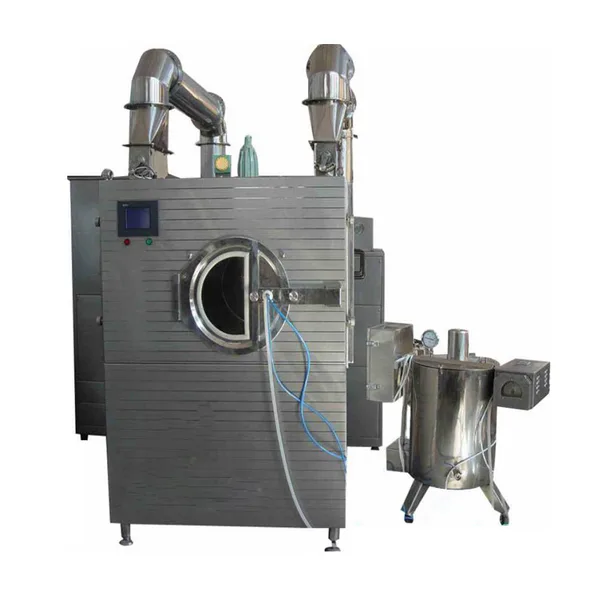

Multifunction Pharmaceutical Food Peanuts Lab Tablet Film Coating Machine, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-150D

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Multifunction Pharmaceutical Food Peanuts Lab Tablet Film Coating Machine
Max tablet volume: 150kgs per batch
Coating Drum Speed: 2-20rpm
Main machine power: 2.2kw
Coating drum diameter: 480mm
Overall size: 1700×1300×2100mm
Drum mesh diameter: 3mm
Air source (provided by yourself): 0.8 m3/min pressure: 0.4-0.8 Mpa
material: stainless steel
key word: Tablet Film Coating Machine

Multifunction Pharmaceutical Food Peanuts Lab Tablet Film Coating Machine

Product Description of Film Coating Machine

This machine is a special equipment suitable for water phase thin film coating and organic film surface coating for Chinese and western tablets, pills, etc. It is the interchangeable type coating machine that improvement based on the

standard coating machine, one machine can achieve different batches of production, widely used in the pharmaceutical, biological scientific research and food industries.

Parameter of Film Coating Machine

Items Model				SED-150D
Capacity				150kg/ Batch
Speed of Drum (RPM)				2-20
Power of Motor (KW)				2.2kw
Feeding port diameter				480 mm
Overall size				1700×1300×2100mm
Drum mesh diameter				3mm
Air source (provided by yourself)				0.8 m3/min pressure: 0.4-0.8 Mpa

Performance and Characteristic of Film Coating Machine

1. It adopts a new microcomputer and temperature module control system, and the touch screen adopts Siemens German. It has the advantages of graphic display, simple operation, high efficiency, energy saving, and easy for cleaning, which meets the requirements of GMP.

2. It consists main machine, high efficiency hot air filtration blower, air exhauster and spray device.

3. The whole process is controlled by microcomputer programmable system. The control system has application program, multi selectivity of operation mode, drive control and multi display functions.

4. The coating process is proceeded in a closed environment to prevent dust and spray from splashing.

5. The drive system adopts explosion-proof reduction motor and variable frequency stepless speed regulation.

6. The high-efficiency filtering hot air fan is used for the main engine after primary, medium and high-efficiency filtering and heating. The air purification meets the cleaning requirements of 100000 level. The dust removal exhaust fan can directly exhaust outdoors to avoid affecting the central air conditioning and save energy.

7. The spray gun adopts Japanese Anestiwata spray gun, which has good atomization effect, without nozzle blockage, adjustable spray amount and spray angle, simple structure and can be cleaned easily.

Working Principle of Film Coating Machine

Under the action of the streamlined deflector in the clean and airtight rotating drum, Su Rui keeps making complex trajectory movements. During the movement, according to the technological process and reasonable technological parameters, the

coating medium is automatically sprayed, and at the same time in the negative pressure state The hot air is supplied from the bottom, and the hot air is discharged from the bottom of the core layer through the core, so that the coating medium sprayed on

the surface of the core can be quickly and evenly dried to form a firm and smooth surface film.

Product Show of Film Coating Machine

Multifunction Pharmaceutical Food Peanuts Lab Tablet Film Coating Machine product detail

Application of Film Coating Machine

Tablet coating machine is widely used in pharmaceutical, chemical, food, scientific research institutes and hospitals for tablets, dragees, polished and calendered food. Polished sugar-coated tablets have a glossy appearance. The surface sugar

crystallizes to form a complete cured coating, which can prevent the chip from oxidative deterioration, moisture, volatilization, and cover up the bad flavor of the chip. It can be used with frequency converter. Can be matched with dust removal system. It can be made into a fully enclosed type, equipped with a spray gun system, in line with GMP requirements.

Multifunction Pharmaceutical Food Peanuts Lab Tablet Film Coating Machine product detail

2-20
