Automatic Packing Machine
Multi Function Compression Packing Machine With 480 Pcs / Hour
Multi Function Compression Packaging Machine With 480 Pcs/hour Product Overview of Vacuum Packaging Machine This machine is used for compression packaging of soft products in order to reduce the volume and save transportation costs. Product Parameters of Vacuum Packaging Machine Model SED-900ZK-H Power supply 220V 50HZ Press plate size 400x900mm Sealing pressure 1200N Dimensions: 1200*600*1750mm Weight 250kg Application Plastic film bags, composite film bags and foil bags Operation process for vacuum packaging machine: 1. In the standby state, manually put in the
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-900ZK-H |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Multi Function Compression Packaging Machine With 480 Pcs/hour
- Production capacity
- 480 Pcs/hour（Pack two bags at a time）
- Dimensions(L*W*H)
- 1200*600*1750mm
- Weight
- 250kg
- Production efficiency
- 5-10 seconds/time
- Press plate size
- 400x900mm
- Material
- stainless steel
- Key word
- vacuum packaging machine，vacuum seal food packaging machine
Multi Function Compression Packaging Machine With 480 Pcs/hour
Product Overview of Vacuum Packaging Machine
This machine is used for compression packaging of soft products in order to reduce the volume and save transportation costs.
Product Parameters of Vacuum Packaging Machine
| Model |
SED-900ZK-H |
|
Power supply |
220V 50HZ |
|
Press plate size |
400x900mm |
|
Sealing pressure |
1200N |
|
Dimensions: |
1200*600*1750mm |
|
Weight |
250kg |
|
Application |
Plastic film bags, composite film bags and foil bags |
Operation process for vacuum packaging machine:
1. In the standby state, manually put in the products to be packaged and sealed.
2. Press the "Plate start" button.
3. The pressing plate automatically presses down to compress the product.
4. Arrange the mouth of the bag to make the mouth of the bag flat.
5. Press the "Heat Sealing Start" button.
6. The sealing strip automatically presses down to seal the bag.
7. The sealing strip and the pressure plate are opened at the same time.
8. Manually take out the product forward or push the product backward.
9. Place the product to be packaged and sealed again. circulation.

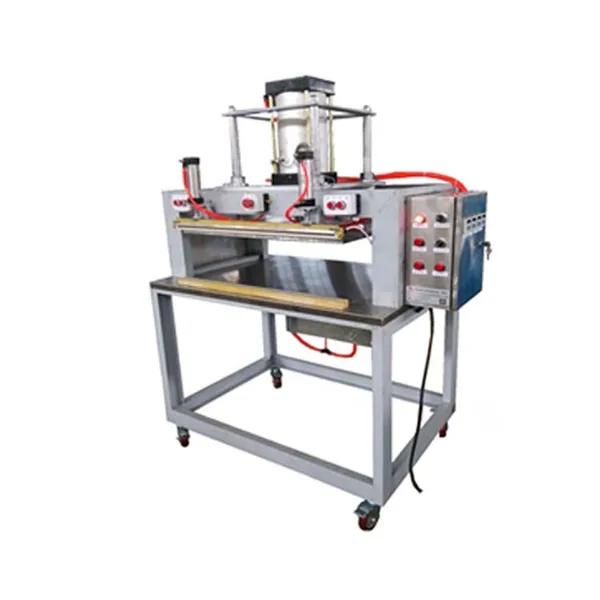

Product Show of Vacuum Packaging Machine
