Medical Tablets Thin Film Sugar Coating Equipment High Efficiency And High Capacity

Medical Tablets Thin Film Sugar Coating Equipment High Efficiency And High Capacity



Product Overview of Coating Machine



Our peanut candy coater is available in 304 stainless steel, SS316, copper coating pans. Our peanut icing machine is designed with fabricated structure, with stainless steel cover and drive motor and reduction gear box.



The pan of peanut icing machine can be customized with 60°, 180°, 360° angles for easy unloading or adding a simple unloading valve. The size and shape of the peanut icing machine can be customized for different purposes



Product Parameters of Coating Machine

Model	BGB-350D
Production capacity (kg/batch)	350
Speed-adjusting range of filmcoating drum (rpm)	2-11
Motor power of main machine (kW)	4
Temperature-regulating range of hot air (° C )	Normal temperature 90 ° C
Filtration accuracy of hot air ( mm)	0.5 mm (100000 grade)
Motor power of air heater (kW)	2.2
Motor power of exhaust machine (kW)	7.5
Motor power of peristaltic pump (kW)	0.18
Noise	≤ 75dB
Overall dimension of main machine (mm)	2000× 1560× 2330
Weight of main machine (kg)	1700
Overall dimension of air heater (mm)	1610× 1090× 2370
Weight of air heater (kg)	700
Overall dimension of exhaust machine (mm)	1050× 1000× 2100
Weight of exhaust machine (kg)	550



trait of Coating Machine



1. Different parts of the main machine collocated with a number of nozzles for cleaning machine on-line.

2. Configured the independent cleaning liquid booster distribution station to make sure the pressure of cleaning liquid form every spray header get up to 0.6Mpa and wash the coating machine effectively.

3. Configured the cycle cleaning and drainage systems for the cleaning process to choose

4. Under the control of the PLC, can program a number of cleaning procedures

5. Under the control of the PLC, dry the remanent water of each nozzle by compressed air.

6. Under the control of the PLC, implement fully automatic washing and drying process.
Main technical parameters of BGB-D type coating machine (with CIP).

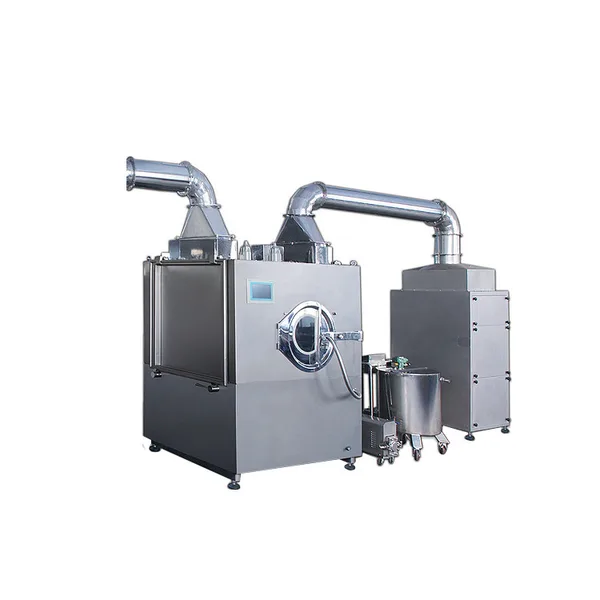

Product Show of Coating Machine



Application of Coating Machine

1. Film coating of tablets, pills, etc. in the pharmaceutical industry 2. Sugar and chocolate coating of nuts, fruits, popcorn, etc. in the food industry 3. Powder, paint, chemical color coating 4. Polishing, polishing and polishing of spherical finished products Rolling, e.g. pearl balls, chewing gum, candy.
