Medical High Capacity Automatic Coating Machine Tablets Pill Coating Machine

Medical High Capacity Automatic Coating Machine Tablets Pill Coating Machine



Product Overview of Film Coating Machine ​



It is kind of equipment integrating elegance, high efficiency, energy-saving, safety, easy to clean, which is applied for coating traditional Chinese and Western tablets and pills (including micro-pills, small pills, water-bindered pills, drip pills and granulated pills)with sugar, organic film, water soluble film, slow and controlled release film in the fields of pharmacy, food and biology etc.



The machine is equipped with the programmable PLC (machine and person interface), with which its operation process and process parameters such as negative pressure and temperature can be automatically controlled. It is easy to operate, with reasonable and advanced process during run of the machine.



Main machine, cleaning system, hot-air cabinet, exhaust cabinet and the normal mixing drum are all made of high quality, stainless steel, which conforms to "GMP" requirements.



Product Parameters of Film Coating Machine

Technical Type	BG-40D
Load Capacity (kg)	40
Revolutions(R/Min)	2.0-18
Machine dimensions kw	1.1
Machine dimensions(L*W*H) mm	1100*850 *1470
Power of Hot Air Cabinet Motor kw	1.1
Weight of Main Machine kg	500



Trait of Film Coating Machine



1. Display with touch screen

2. Expanded PLC module, all parameters are set in control panel

3. Because of sound and heat insulation, it has temperature insulation effect to inside of machine

4. Operate at full seal and negative pressure state

5. Nozzle (from Japan)-uniform atomizing, big area of atomizing, adjustable direction,the sprayer has no dropping leakage and block

6. Promote material to stir aslant and writhe. The exchanging frequency is frequent.Therefore it can raise the rate of finished product

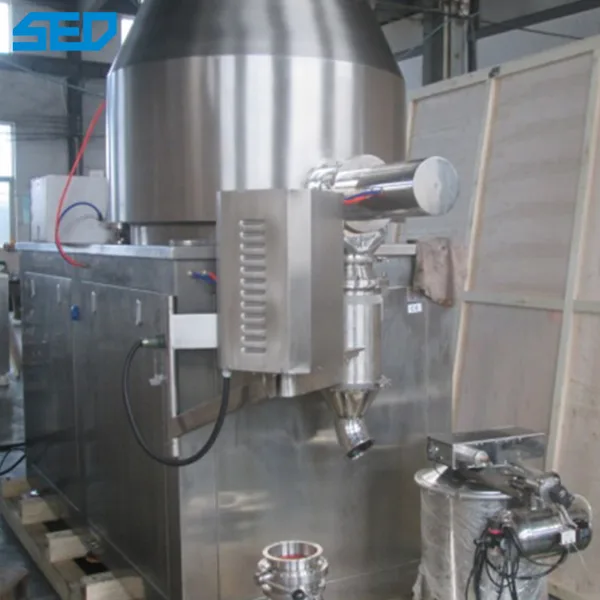

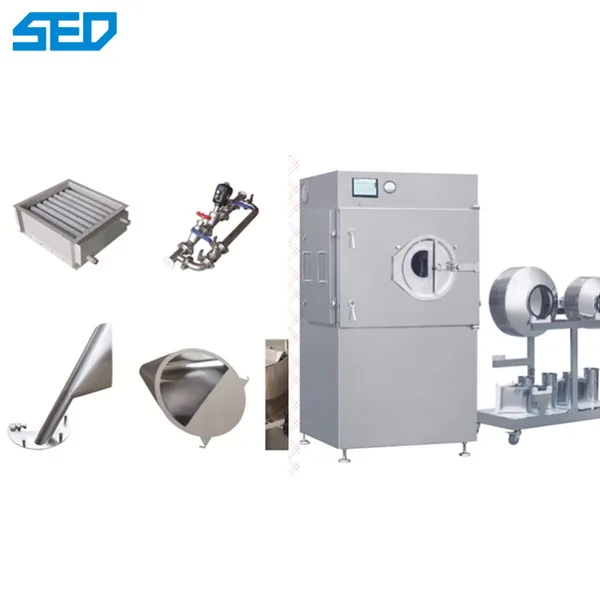

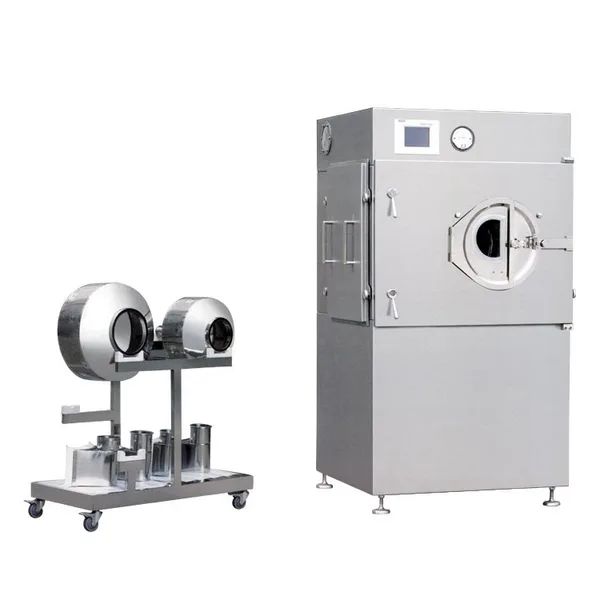

Product Show of Film Coating Machine

Application of Film Coating Machine

This chocolate sprayer is mainly used for making granules and film coating on tablets. It can also be used to make spherical products or granules, mixing, polishing, etc. Such as: chocolate polishing, peanut coating, sugar coating, seasoning, production of tapioca pearls, desiccant and aluminum hydroxide granulation, porcelain ball making, etc.
