Low - Noise Chocolate Sugar Coating Machine Automatic Coating Machine



Low - Noise Chocolate Sugar Coating Machine Automatic Coating Machine



Product Overview of Coating Machine​



These machines sugar coat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds.



Product Parameters of Coating Machine

Model	SED-JB300	SED-JB400	SED-JB600	SED-JB800	SED-JB1000
Dia. of Pan ( mm)	300	400	600	800	1000
Rotary Speed of Pan ( r/min)	46	46	46	36	32
Power of Fan( kw)	0.075	0.075	0.075	0.12	0.12
Power of Heat kw	0.75	0.75	1	2	2
Production Capacity( kg/time)	2	5	15	36-50	45-70
Motor( kw)	0.37	0.55	0.75	1.1	1.1
Overall Size ( mm)	520*360*700	540*400*800	930*800*1000	1000*800*1480	1070*1000*1580
Net Weight( kg)	46	52	120	205	230



use of Coating Machine



1.This machine used to coating the tablets and pills for pharmaceutical and food industry.

2. This machine is used for rolling and heating beans and edible nuts or seeds.

3. This machine can be used to polish chocolates of various shapes such as cylinders, oblatenesses to make their surfaces well lustrous and colored.



Trait of Coating Machine



1. Made of stainless steel, stable running, low noise and high efficiency.

2,The final product is round and smooth.

3,It is also suitable for peanut, popcorn, almond, cashews, soybeans and so on.

4,The inclination angle of the sugarcoating pot can be adjusted.

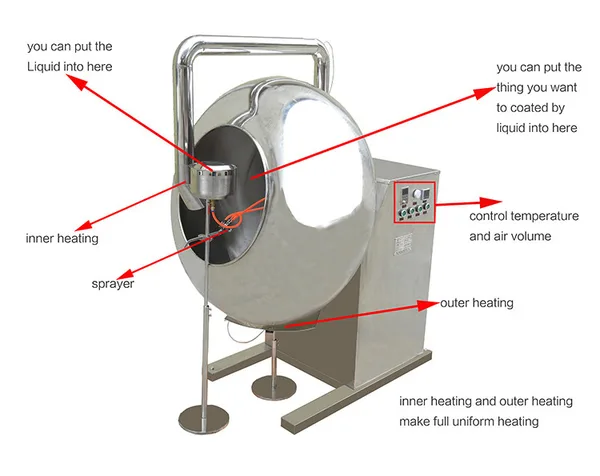

Show of Coating Machine



Application of Coating Machine

This machine is mainly used for the production of tablet granules and film coating. It can also be used to make spherical products or granules, mixing, polishing, etc. Such as: chocolate polishing, peanut coating, sugar coating, seasoning, production of tapioca pearls, desiccant and aluminum hydroxide granulation, porcelain ball making, etc.
