Lab Use High Efficiency Egg Powder Spray Dryer Pharmaceutical Dryers



Product Overview of Spray Dryer Machine​



Laboratory table top spray dryer is the latest type of TOPTION which adopts advanced international technology and spare parts.

TOPTION Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.



Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.



Product Parameters of Spray Dryer Machine

Item	Unit	TP-S15	TP-S30	TP-S50	TP-S100
Max capacity	ml/h	1500-2000	3000	5000	10000
Temperature range of inlet air	℃	40℃ ~ 300℃	30°C ~ 300°C Adjustable	140°C ~ 300°C Adjustable	50℃ ~ 300℃
Temperature range of outlet air	℃	80℃ ~ 90℃	30°C ~ 140°C	80°C ~ 90°C	80℃ ~ 90℃
Spray system	/	Two-fluid nozzle	Centrifugal nozzle	Centrifugal nozzle	Centrifugal nozzle
Precision of temp	℃	±1
Dryer time	S	1.0 ~ 1.5
Speed of squirt pump	ml/h	50-2000	3000	5000	10000
Spray direction	/	Downwards co-current
Heater Power	/	3.5KW	4.5KW	6.8KW	2.8KW
Total power	/	4.5KW 220V	5.5KW 220V	9KW,380V	3.2KW 380V
Heat source	/	Electric
Air compressor	/	Built-in oil-free air compressor
Dried powder restoring rate	%	≥95			≥98
Dimension	mm	940*850*1500	880*980*1550	1800*930*2200	2500*1600*2800
Maximum moisture evaporation	Kg/h	2	3	5	10



Feature of Spray Dryer Machine​



1. Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.

2. Imported Schneider electrical components which is more stability.

3. PLC control system, make your research more easier and efficient.

4. Build in oil-free air compressor, without any noise.

5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.

6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.

7. Innovative tower wall purging device, improves the material recycling rate.

8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.

9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.

10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.

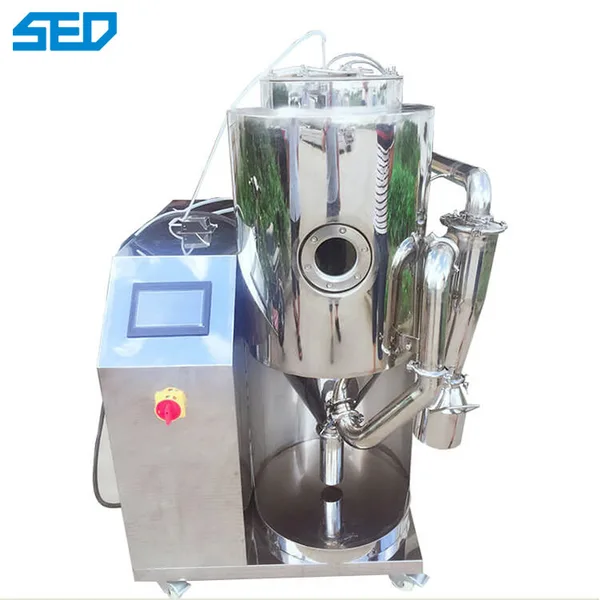

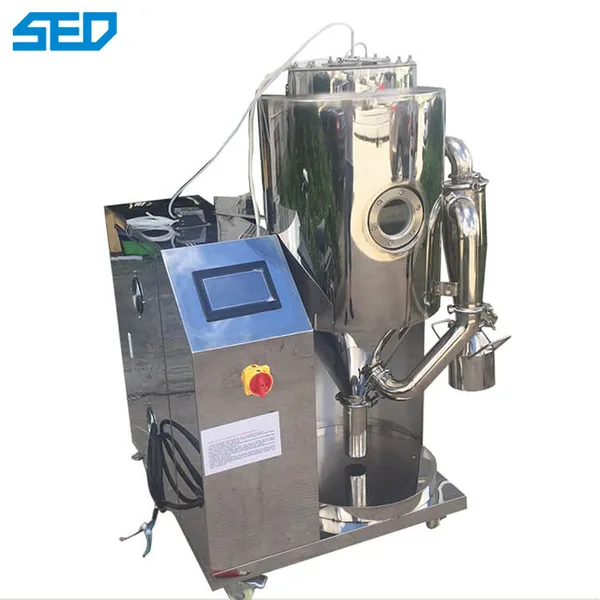

Show of Spray Dryer Machine​



Application of Spray Dryer Machine
