Industrial 220L Boiling Spraying Granulation Drying Machine CE Certificated
Industrial 220L Boiling Spraying Granulation Drying Machine CE Certificated Working Principle of Fluid Bed Drying Machine The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules. Product
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-72GFZ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 40 working days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Industrial 220L Boiling Spraying Granulation Drying Machine CE Certificated
- Capacity
- 30-72KG/Batch
- Volume
- 220L
- Power of Fan
- 11KW
- Fan Air Quantity
- 3000 M3/H
- Steam consumption
- 141KG/H
- Noise,dB (A)
- (fan is installed separately) ≤75
- Weight of the main machine
- 1100Kg
- material
- stainless steel
- key word
- Spraying Granulation Drying Machine
Industrial 220L Boiling Spraying Granulation Drying Machine CE Certificated
Working Principle of Fluid Bed Drying Machine
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive.
Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Product Parameters of Fluid Bed Drying Machine
| item | unit | Model: FL-60 | |
| Raw material tank | volume | L | 220 |
| diameter | mm | 1000 | |
| Output capacity | min | kg | 30 |
| max | kg | 72 | |
| fan | air quantity | m3/h | 3000 |
| Air pressure | mmH2O | 480 | |
| power | kw | 11 | |
| steam consumption | kg/h | 141 | |
| compressured air consupmtion | m3/min | 0.9 | |
| weight | kg | 1100 | |
| steam pressure | Mpa | 0.3~0.6 | |
| temperature | ℃ | room temperature -120℃,adjustable | |
| Working time | min | according to material feature45~90 | |
| Receiving rate | % | ≥99 | |
| noize | dB(A) | fan and main frame installed separately, noise≤75dB(A) | |
Feature of Fluid Bed Drying Machine
- By using powder granulation, to improve the liquidity and thinner dust.
- By using powder granulation, to improve solubility property.
- Mixing—granulation—drying can be finished in one device (one-step granulation)
- To adopt antistatic filtering mediums, to ensure safe operation.
- Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
- No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.

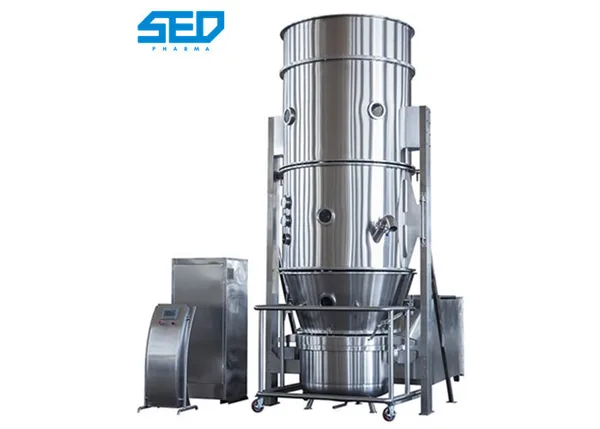

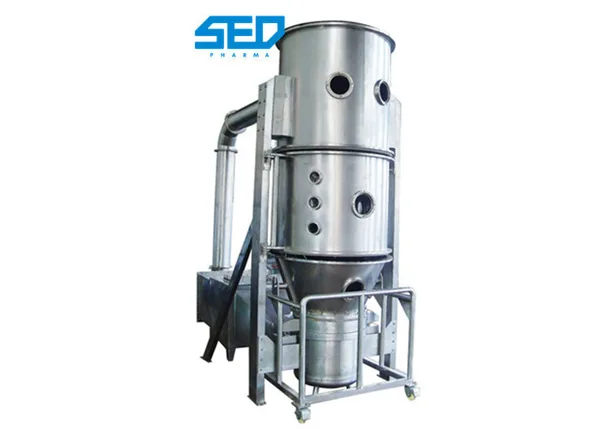

Product Show of Fluid Bed Drying Machine
Application of Fluid Bed Drying Machine
- Available for both Powder granulation and Granular Coating.
- Granulation: Tablet particles, granule particles, capsule particles
- Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
- Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
- Pesticide, paint pigment, dry granulation Powder, granules, block materials
