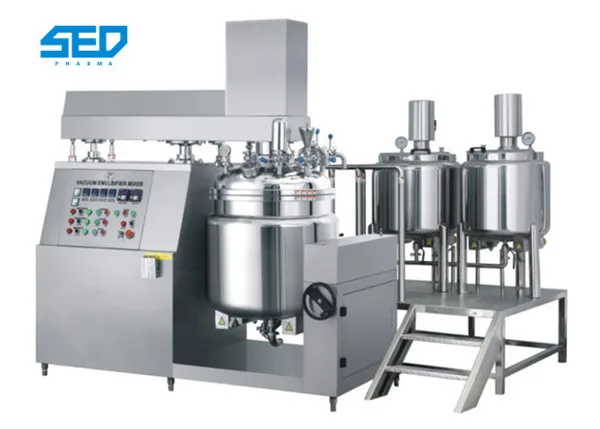

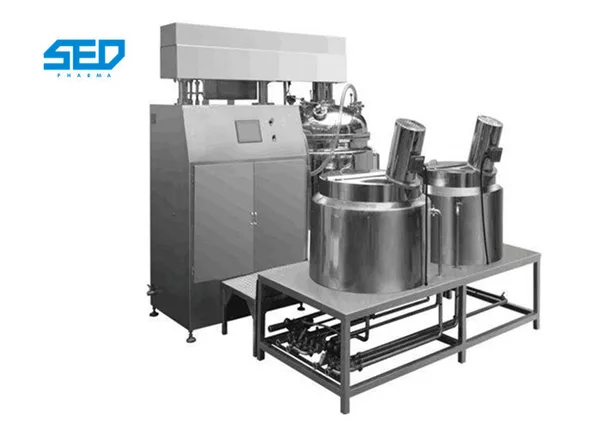

Homogenizing Vacuum Emulsifying Mixer Siemens Touch Screen Controlled Type

Homogenizing Vacuum Emulsifying Mixer Siemens Touch Screen Controlled Type



Working Principle of Vacuum Emulsifying Machine​



The SED-500RZ material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall.



In the process of blade-stirring, the materials are continuously crushed, pressed, fold.



Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um



Product Parameters of Vacuum Emulsifying Machine

Capacity	500 L
Kettle Cover	Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot	Material		Inner layer: SUS316L thickness: 3mm
			Middle layer: SUS304 thickness: 2mm
			Outside layer: SUS304 thickness:2mm
	configuration		Bottom material exhaust, size: 1.5”
			Temp. sensor (0-199℃)
			Electrical heating: 45kw, cooling water inlet
Stirring system	Homogenizer	1．Material: SUS316L; standard homogenizer 2. Power: 7.5kw/380/50Hz; RPM: 2900R/Min
	Stirring scrap and middle stirring	Material: SUS316L,Scrap material: PTFE
		1. Stirring scrap and middle stirring use the same motor 2,Power:3.0kw/380V/50Hz；RPM:0~80r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite direction
		Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system	1. Vacuum pump: water recycle, power 5.5kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not open)
Heating method	Jacket electrical heating
Exhaust method	Electric doom and bottom discharge or positive pressure discharge material
Pressure	Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box	SUS304 , 1.2mm thickness



Advantages of Vacuum Emulsifying Machine



1. The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.

2. The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall.



In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath.



The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material.



3. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.

4. The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly;



The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.



Products Show of Vacuum Emulsifying Machine
