Emulsifying Mixer Machine
High Capacity Vacuum Emulsifying Machine Button Controlled For Ointment Cream Lotion
High Capacity Vacuum Emulsifying Machine Button Controlled For Ointment Cream Lotion Product Parameters of Vacuum Emulsifying Machine Capacity 500 L Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp Mixing pot Material Inner layer: SUS316L thickness: 3mm Middle layer: SUS304 thickness: 2mm Outside layer: SUS304 thickness:2mm configuration Bottom material exhaust, size: 1.5” Temp. sensor (0-199℃) Electrical heating: 45kw, cooling water i
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-500RZ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 45 days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- High Capacity Vacuum Emulsifying Machine Button Controlled For Ointment Cream Lotion
- Mixing pot heating power
- 45kw
- Scrap material
- PTFE
- Condition
- New
- Mixer Type
- Homogenization
- Product Type
- Cosmetic
- Control system
- Button
- Homogenize Speed
- 0 to 3500 RPM
- material
- stainless steel
- key word
- Vacuum Emulsifying Machine
High Capacity Vacuum Emulsifying Machine Button Controlled For Ointment Cream Lotion
Product Parameters of Vacuum Emulsifying Machine
| Capacity | 500 L | ||
| Kettle Cover | Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp | ||
| Mixing pot | Material | Inner layer: SUS316L thickness: 3mm | |
| Middle layer: SUS304 thickness: 2mm | |||
| Outside layer: SUS304 thickness:2mm | |||
| configuration | Bottom material exhaust, size: 1.5” | ||
| Temp. sensor (0-199℃) | |||
| Electrical heating: 45kw, cooling water inlet | |||
| Stirring system | Homogenizer |
1．Material: SUS316L; standard homogenizer |
|
| Stirring scrap and middle stirring | Material: SUS316L,Scrap material: PTFE | ||
|
1. Stirring scrap and middle stirring use the same motor |
|||
| Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring. | |||
| Vacuum system |
1. Vacuum pump: water recycle, power 5.5kw/380V/50Hz |
||
| Heating method | Jacket electrical heating | ||
| Exhaust method | Electric doom and bottom discharge or positive pressure discharge material | ||
| Pressure | Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa | ||
| Control box | SUS304 , 1.2mm thickness | ||
Working Principle of Vacuum Emulsifying Machine
The SED-500RZ material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall.
In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath.
The materials are finally crushed into small pellets of 200um~2um
Advantages of Vacuum Emulsifying Machine
1. The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.
2. The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold.
Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material.
3. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.
4. The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material.
After finished the whole procession please rise the pot cover for the clearing.

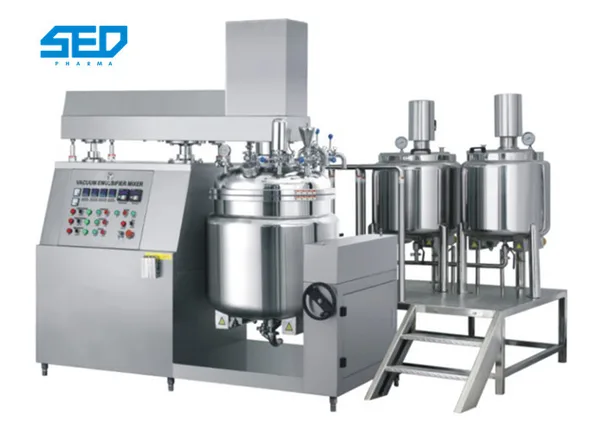

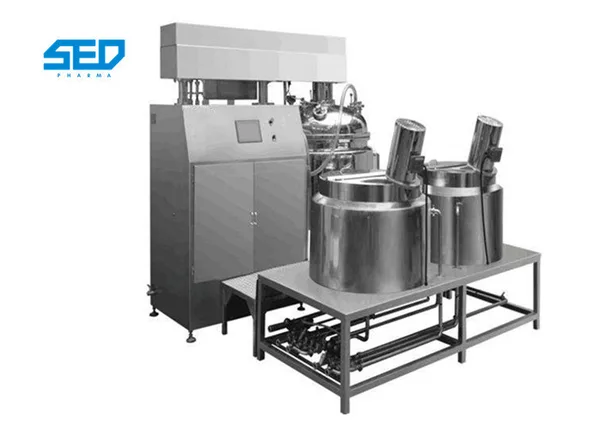

Products Show of Vacuum Emulsifying Machine
