300L Ointment Manufacturing Machine Pharmaceutical Use Vacuum Emulsifying Mixer

Name: 300L Ointment Manufacturing Machine Pharmaceutical Use Vacuum Emulsifying Mixer
Brand: SED Pharma

300L Ointment Manufacturing Machine Pharmaceutical Use Vacuum Emulsifying Mixer Product Parameters of Vacuum Emulsifying Machine Capacity 300 L Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp Mixing pot Material Inner layer: SUS316L thickness: 3mm Middle layer: SUS304 thickness: 2mm Outside layer: SUS304 thickness:2mm configuration Bottom material exhaust, size: 1.5” Temp. sensor (0-199℃) Electrical heating: 18kw, cooling water inlet

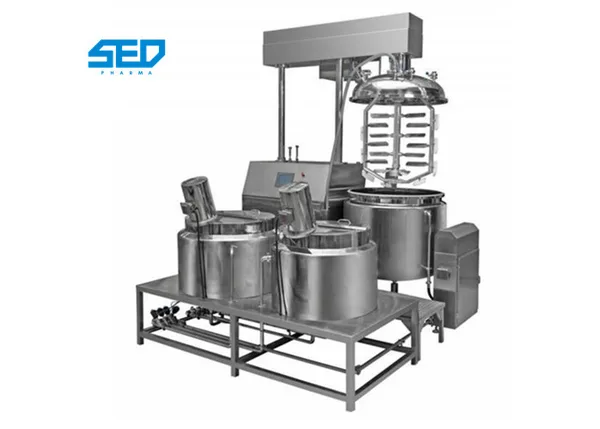

300L Ointment Manufacturing Machine Pharmaceutical Use Vacuum Emulsifying Mixer, view 1

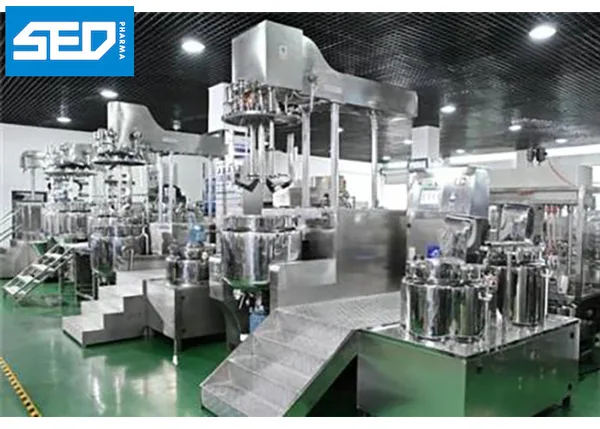

300L Ointment Manufacturing Machine Pharmaceutical Use Vacuum Emulsifying Mixer, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-300RZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	45 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: 300L Ointment Manufacturing Machine Pharmaceutical Use Vacuum Emulsifying Mixer
Homogenization power: 5.5kw
Stirring power: 2.2kw
Vacuum system: Water circulation vacuum pump
Warranty: 1 Year
Control system: Touch Screen
Power supply: 380V 50HZ Three Phase
Stirring speed: 21-118r/min
material: stainless steel
key word: Vacuum Emulsifying Machine

300L Ointment Manufacturing Machine Pharmaceutical Use Vacuum Emulsifying Mixer

Product Parameters of Vacuum Emulsifying Machine

Capacity	300 L
Kettle Cover	Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot	Material		Inner layer: SUS316L thickness: 3mm
			Middle layer: SUS304 thickness: 2mm
			Outside layer: SUS304 thickness:2mm
	configuration		Bottom material exhaust, size: 1.5”
			Temp. sensor (0-199℃)
			Electrical heating: 18kw, cooling water inlet
Stirring system	Homogenization	1．Material: SUS316L; standard homogenizer 2. Power: 5.5kw/380/50Hz; RPM: 2900R/Min
	Stirring scrap and middle stirring	Material: SUS316L,Scrap material: PTFE
		1. Stirring scrap and middle stirring use the same motor 2,Power:2.2kw/380V/50Hz；RPM:21~118r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite direction
		Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system	1. Vacuum pump: water recycle, power 2.2kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not open)
Heating method	Jacket electrical heating
Exhaust method	Electric doom and bottom discharge or positive pressure discharge material
Pressure	Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box	SUS304 , 1.2mm thickness

Working Principle of Vacuum Emulsifying Machine

The SED-300RZ material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold.

Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um

Advantages of Vacuum Emulsifying Machine

1) The pot cover is automatic rising type, the material was directed draw into the emulsifying boiler from oil boiler and water boiler based on a pipe that is under vacuum, the discharge is based on the turn the emulsifying boiler.

And the heating system is electric heating or steam heating that the temperature is automation control. Put the cool water into the intercalated bed so cooling the material, simple operation and safety( at the outside have a warm layer).

2) The homogenizer and the blade stirring can together work or separate work.. the material sliming,emulsification,mixing,dispersing,etc. what will finished during short time.

3) Contact position adopt high-quality stainless steel (medical use adopt 316L material make with supplies, the polishing of surface of the mirror of interior surface, mix the hygiene of the device in vacuum, it accords with the normal hygiene standard manufacture of GMP to adopt that is most ideal production equipment.)
