Emulsifying Mixer Machine
Cosmetic Ointment Manufacturing Machine For Cream Shampoo Production
Cosmetic Ointment Manufacturing Machine For Cream Shampoo Production Product Parameters of Ointment Manufacturing Machine Capacity Design volume: 250L, working capacity:200 L Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp Mixing pot Material Inner layer: SUS316L thickness: 3mm Middle layer: SUS304 thickness: 2mm Outside layer: SUS304 thickness:2mm configuration Bottom material exhaust, size: 1.5” Temp. sensor (0-199℃) Electrical heating: 18kw, coolin
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-200RZ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 45 days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Cosmetic Ointment Manufacturing Machine For Cream Shampoo Production
- Keywords
- Emulsifying mixer machine,Homogeneous emulsifying machine,homogenizer
- Material
- Contact Part With stainless steel 316L
- Temperature Sensor
- 0-199℃
- Heating power of mixing pot
- 18kw
- Homogenization speed
- 2800R/Min
- Scrap material
- PTFE
- Power Supply
- 380V 50HZ Three Phase
- material
- stainless steel
- key word
- Ointment Manufacturing Machine
Cosmetic Ointment Manufacturing Machine For Cream Shampoo Production
Product Parameters of Ointment Manufacturing Machine
| Capacity | Design volume: 250L, working capacity:200 L | ||
| Kettle Cover | Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp | ||
| Mixing pot | Material | Inner layer: SUS316L thickness: 3mm | |
| Middle layer: SUS304 thickness: 2mm | |||
| Outside layer: SUS304 thickness:2mm | |||
| configuration | Bottom material exhaust, size: 1.5” | ||
| Temp. sensor (0-199℃) | |||
| Electrical heating: 18kw, cooling water inlet | |||
| Stirring system | Homogenization |
1．Material: SUS316L; standard homogenizer 2. Power: 4kw/380/50Hz; RPM: 2800R/Min |
|
| Stirring scrap and middle stirring | Material: SUS316L,Scrap material: PTFE | ||
|
1. Stirring scrap and middle stirring use the same motor 2,Power:2.2kw/380V/50Hz；RPM:21~118r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite direction |
|||
| Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring. | |||
| Vacuum system |
1. Vacuum pump: water recycle, power 2.2kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not open) |
||
| Heating method | Jacket electrical heating | ||
| Exhaust method | Electric doom and bottom discharge or positive pressure discharge material | ||
| Pressure | Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa | ||
| Control box | SUS304 , 1.2mm thickness | ||
| Dimension | 3500mm×2450mm×2250 mm | ||
| Shelf is SS, platform with raised platform and SS guardrail | |||
Working principle of Ointment Manufacturing Machine
The SED-200RZ main pot is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.
Feature of Ointment Manufacturing Machine
1. The ultra-high viscosity emulsion shall be fully and evenly stirred.
2. Vacuum suction, high production frequency and operation frequency, simple and reliable operation.
3. It can be used for heating, melting, vacuum, homogeneous cooling and consistent operation.
4. It is made of stainless steel, and the vacuum stirring is sanitary, sterile, and easy to clean.
5. The newly developed ceramic gapless high shear homogenizing emulsifier.

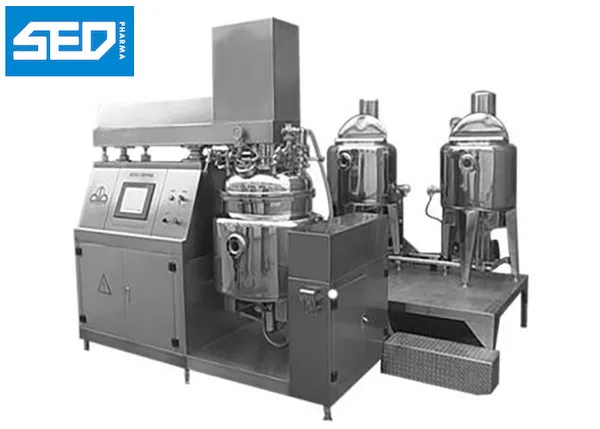

Show of Ointment Manufacturing Machine
