High Speed Automatic Transparent Film 3D Packaging Machine

High-speed Automatic Transparent Film 3D Packaging Machine



Product Description of Film Packaging Machine

SED-450SWB-G high-speed transparent film 3D packaging machine can automatically feed, wrap, fold, seal side, end seal, shape up and down, count and automatically paste anti-counterfeiting easy-to-pull wire for single box and multi-box. It also has specifications memory function, track automatic adjustment function, surface ironing and spot ironing functions, etc.

This machine is suitable for transparent film 3D packaging of various square single-piece or multi-piece (collection) items in medicine, cosmetics, health care products, food and other industries, and can automatically feed, wrap, fold, heat seal, Counting, and sticking the unsealing cable.

Adopt the design concept based on mechanical transmission, supplemented by pneumatic. It is reflected in the stable operation in normal work, and the failure rate is extremely low. At the same time, the operation is simple, the replacement of varieties is fast, and the maintenance is convenient.



If a fault occurs, the normal production can be resumed in a short time. The pushing part is driven by sprockets and chains. The motor controls the film feeding, and the push box mechanism has an overload protection device, which reduces the failure rate. The conveying function can be divided into linear conveying or 90-degree conveying according to the limitation of the site.



Product Parameters of Film Packaging Machine

Packing speed	10-50bags/min
Packing size	L40-280mm W30-200mm H20-90mm
Design power	10.5kw
Voltage	380V-50Hz
Weight(about)	700kg
Transmission size	1550*260*830mm



Advantages of Film Packaging Machine



The machine is compact in structure, simple in operation and convenient in maintenance. It can pack products of different specifications by replacing a few parts.



It is suitable for the packaging of large box-shaped products, and can automatically stack and package multiple single-box products, (can replace the integrated heat shrink packaging machine), and products that require photoelectric tracking.



Such as packs of cigarettes, tea, boxed chewing gum, medicines, cosmetics, health care products, etc.

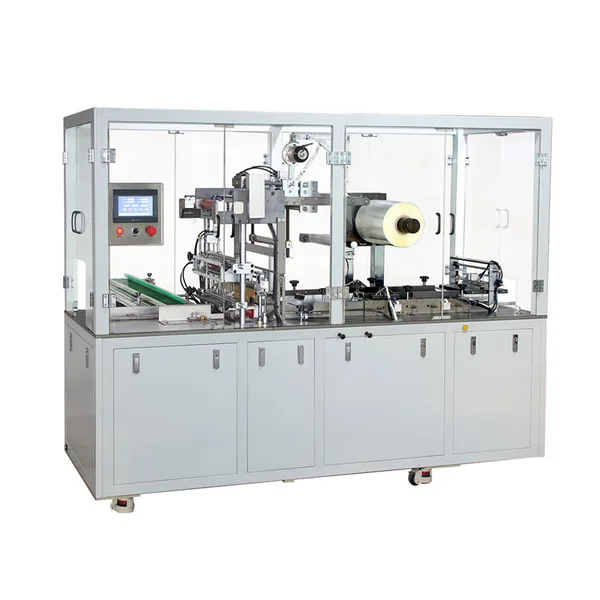

Products Show of Film Packaging Machine
