High Efficiency Pharmaceutical Dryers Boiling Spraying Granulation Drying Machine

Name: High Efficiency Pharmaceutical Dryers Boiling Spraying Granulation Drying Machine
Brand: SED Pharma

High Efficiency Pharmaceutical Dryers Boiling Spraying Granulation Drying Machine Product Parameters of Spraying Granulation Drying Machine Model SED-160GFZ Volume (L) 420 Amount to be treated (kg/per time) 80/160 Power of fan (kw) 18.5 Consume of steam 0.4MPa(kg/h) 211 Consume of compressed air (m3/min) 1.0 Noise,dB (A) (fan is installed separately) ≤75 Main machine height (m) 2.2×1.65×3.3 Working Principle of Spraying Granulation Drying Machine The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air

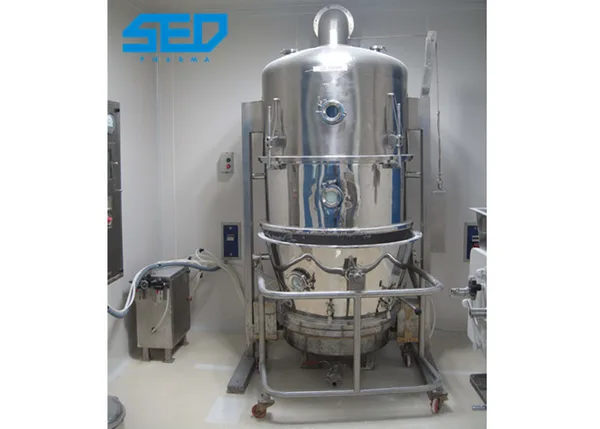

High Efficiency Pharmaceutical Dryers Boiling Spraying Granulation Drying Machine, view 1

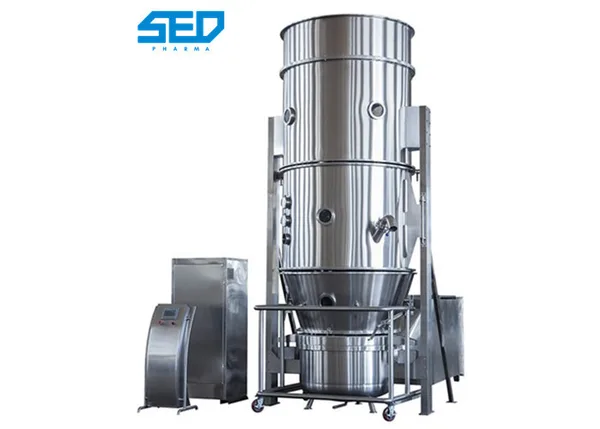

High Efficiency Pharmaceutical Dryers Boiling Spraying Granulation Drying Machine, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-160GFZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	40 working days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: High Efficiency Pharmaceutical Dryers Boiling Spraying Granulation Drying Machine
Item Name: Boiling Spraying Granulation Drying Machine
Capacity: 80-160KG/Batch
Volume: 120L
Power of Fan: 18.5KW
Noise,dB (A): (fan is installed separately) ≤75
material: stainless steel
key word: Spraying Granulation Drying Machine

High Efficiency Pharmaceutical Dryers Boiling Spraying Granulation Drying Machine

Product Parameters of Spraying Granulation Drying Machine

Model	SED-160GFZ
Volume (L)	420
Amount to be treated (kg/per time)	80/160
Power of fan (kw)	18.5
Consume of steam 0.4MPa(kg/h)	211
Consume of compressed air (m3/min)	1.0
Noise,dB (A)	(fan is installed separately) ≤75
Main machine height (m)	2.2×1.65×3.3

Working Principle of Spraying Granulation Drying Machine

The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container.

It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Feature of Spraying Granulation Drying Machine

By using powder granulation, to improve the liquidity and thinner dust.
By using powder granulation, to improve solubility property.
Mixing—granulation—drying can be finished in one device (one-step granulation)
To adopt antistatic filtering mediums, to ensure safe operation.
Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.

Product Show of Spraying Granulation Drying Machine

High Efficiency Pharmaceutical Dryers Boiling Spraying Granulation Drying Machine product detail

Application of Spraying Granulation Drying Machine

Available for both Powder granulation and Granular Coating.
Granulation: Tablet particles, granule particles, capsule particles
Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
Pesticide, paint pigment, dry granulation Powder, granules, block materials

High Efficiency Pharmaceutical Dryers Boiling Spraying Granulation Drying Machine product detail
