Hard Candy Pillow Type 4Kw Automatic Packing Machine

Hard Candy Pillow Type 4Kw Automatic Packing Machine



Product Overview of Packaging Machine



The machine is suitable for simple-grain hot pillow type packing of candy. It adopts stepless high speed, continuous full-automatic operation. Advanced structure, stable running and convenient adjustment.



Its equipped with photoelectric eye to track color index automatically, and it has preponderances of a reliable and accurate orientation.



Low noise and good performance. Candies packed by this kind of machine will be characterized on beautiful shapes, strong sealing performance, good sanitation qualification and long preserved time, so the machine is pillow type packing equipment that packing speed is the quickest at present in China.



Product Parameters of Packaging Machine​



Production Capacity	1200bags/min
Packing Range	Length: 12-40mm, Width: 12-30mm, Height: 5-18mm
Length of Finished Bag	50-80mm
Shape of Candy	Square, Ellipse, Oblate, Globular, Plum Blossom
Gross Power	4Kw
Overall Dimension	2800*1350*1720
Gross Weight	1400kg
Power Supply	220v 50Hz



Feature of Packaging Machine​



1. This machine has functions of error alarm auto display, safety protective door, and safety switch.

2. The machine adopts touch screen operation to show operation condition, operation instruction, error display, production quantity count; which make machine operation more visualized.

3. The machine can install wrapping paper auto connection device, which achieves wrapping paper changes without stopping machine.

4. The machine has successfully been designed to be fast in packing speed, less empty bags and stable in performance. Besides it also has device for removing empty bags.

5. The machine has also been designed to be durable in use and easy to change spare parts.

6. Using of timing belt makes machine to be less noisy while working.



7. Stepless high speed, continuous fully automaticoperation

8. Stable running and convenient adjustment

9. Photoelectric eye to track color index automatically



10. Excellent sealing property

11. Low noise and good performance

12. Packaged candies have longer shelf life

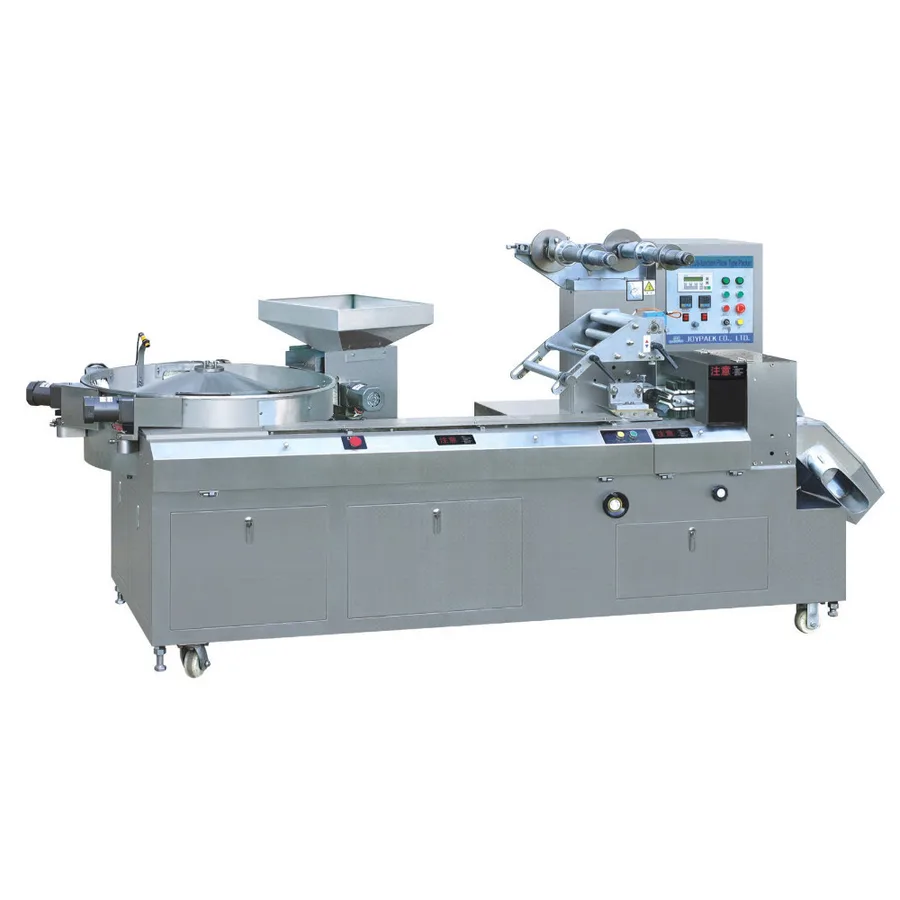

Product Show of Packaging Machine

Application of Packaging Machine​



This Pillow Packing Machine is widely used as below:

Food industry: Soft Gummy Candy, Toffee, Hard candy, Scotch, etc.

Medical catalog: The pills with the shape of a spherical, ellipse, waist around, block, square etc.
