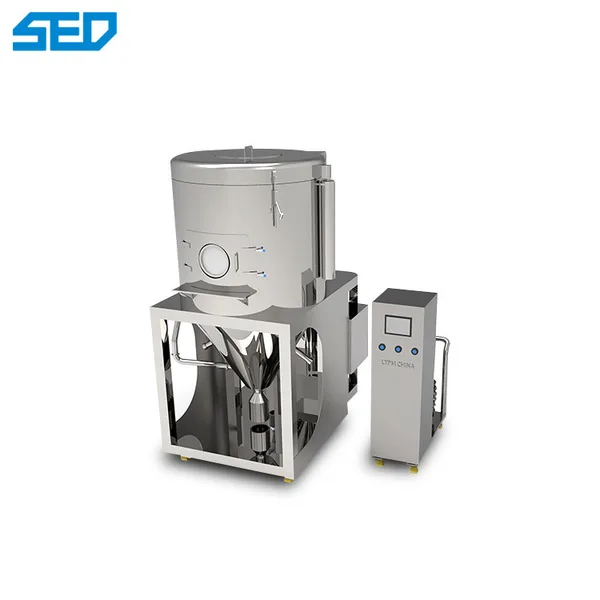

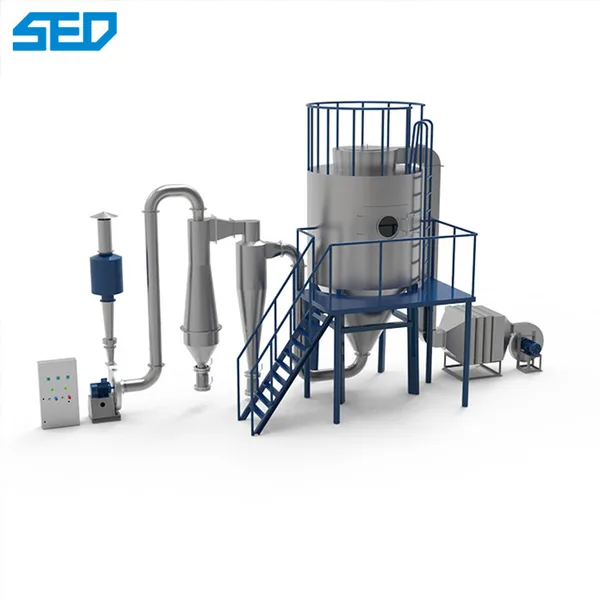

Gum Arabic Powder Pharmaceutical Dryers High Speed Spray Drying Machine

Product description of Spray Dryer

The spray machine for drying is the technology most widely used in the liquid technology shaping and in the drying industry.



The drying technology is the most suitable for producing solid powder or particle products from liquid materials, such as: solvent, emulsion, suspension and pumpable paste states, fro this reason, when the particle size and distribution of the final products, residual water contents.



Mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technology.



Main Parameter of Spray Dryer​



Model	5	25	50	100	150	200-2000
Inlet temperature	350°C
Outlet temperature	80-90°C
Max. evaporation(kg/h)	5	25	50	100	150	200-2000
Centrifugal spraying nozzle transmission mode	compressed air transmission	mechanical transmission
Rotation speed (r.p.m)	25000	22000	21500	18000	18000	15000
Spray disc diameter	50mm	100mm	120mm	140mm	150mm	180-340mm
thermal source	electricity	electricity	electricity + steam, fuel, oil, fuelgas			solved by user
Max. electric heating power (kw)	8	31.5	60	81	99
Overall dimension	1.8*0.93*2.2	3*2.7*4.26	3.7*3.2*5.1	4.6*4.2*6	5.5*4.5*7	optional
Powder recollection (%)	95	95	95	95	95	95



Working Principle of Spray Dryer​



The spray dryer is to disperse the material to be dried into particles, contact with hot air, and quickly remove most of the water by increasing the area of water evaporation to accelerate drying, and finally obtain the dried product.



Main Features of Spray Dryer​



1.Rapid drying speed, which just takes 5-15 seconds.



2. It is especially suitable for drying the heat sensitive materials. Its final products own the good uniformity, mobility, dissolving capacity. And the final products are high in purity and good in quality.



3.Simple processing and easy operation, which is suitable for continuous production.



4.The product has a good degree of uniformity, liquidity and dissolubility with high quality and purity.



5.Can adjust the product diameter, density and water content in some degree which is convenient to control and manage.
