Fully Automatic Liquid Filling Machine Industrial Bottle Filling Equipment


Fully Automatic Liquid Filling Machine Industrial Bottle Filling Equipment

Machine Parameters of Ampoule Filling Machine

Model	SED-120SP
Max Forming Depth	12mm
Speed	0-25cuttings/min
Material	PVC/PE (0.2-0.4)*120mm
Filling volume	2-20ml
Total Power	3.5kw
Power Supply	380V 50HZ(Depends on your requirement)
Weight	300kgs
Overall Dimension	1300*1100*750mm

Product Description of Ampoule Filling Machine
The 7 working positions of unwinding, ampoule forming, filling, tail sealing, batch number printing, tail cutting and slitting are controlled by the program, completed continuously, PLC controlled, and stepless frequency conversion speed regulation. Large screen color human-computer interface device, simple and clear operation, international famous brand components. The filling head does not drip, the filling volume is accurate and does not overflow. It is made of high-quality stainless steel and complies with GMP standards.


Features  of Plastic Ampoule Filling Machine

1.Fully automatic PLC control panel, stepless frequency conversion speed regulation.

2.7 stations, including unwinding, plastic molding, filling, batch number printing, indentation, tail cutting and slitting, are automatically completed by the program.

3.The interface between human and machine is simple and clear.

4.The filling head shall not leak, form foam or overflow.

5.The relevant parts in contact with the liquid medicine are all made of high-quality stainless steel, meeting GMP standards.

6.Imported well-known electrical components are used to make the machine more stable

7.Electronic peristaltic pump automatic filling system and mechanical filling system have small measurement accuracy error.

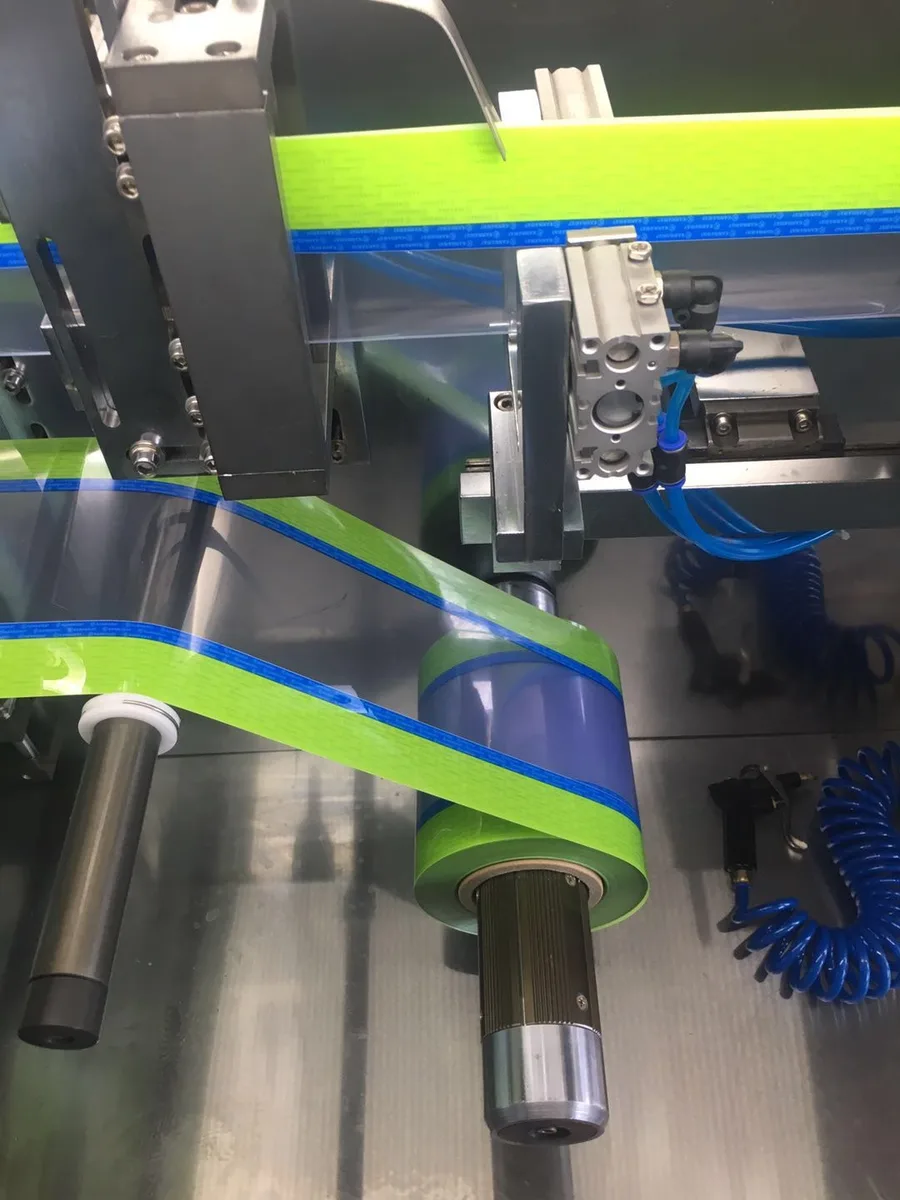

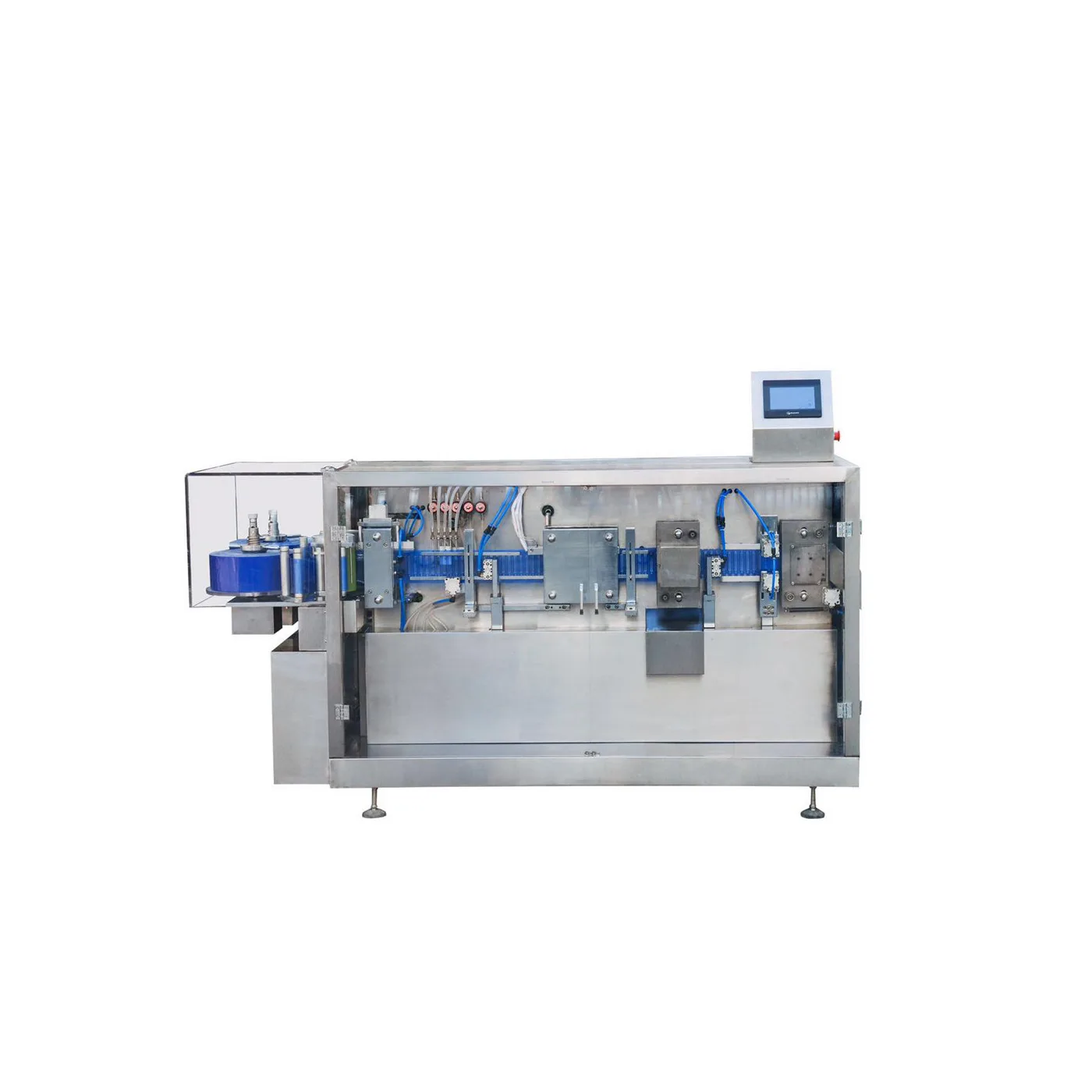

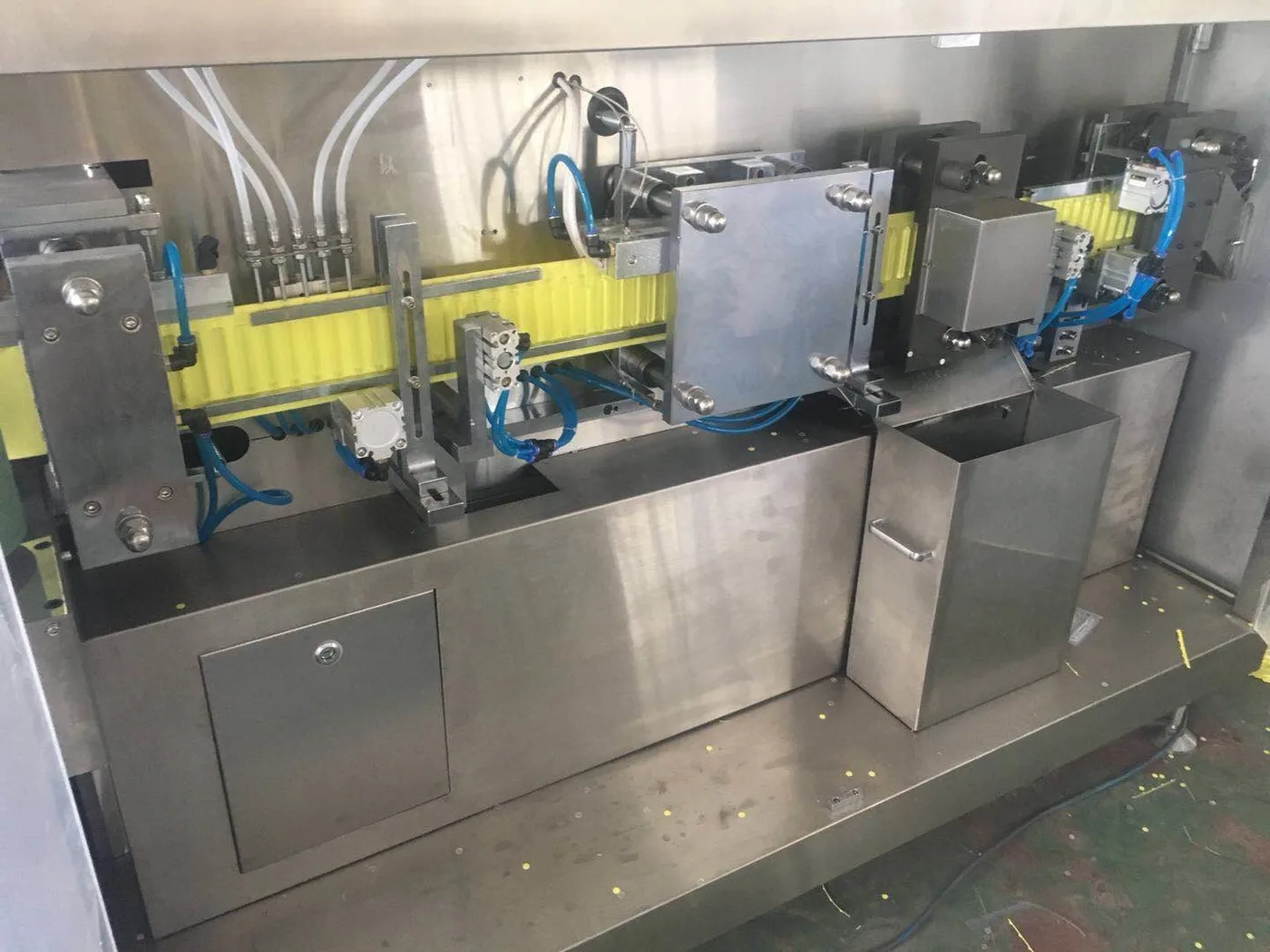

Products Show of Plastic Ampoule Filling Machine



Scope of application

Pharmaceutical industry: oral liquid, health care products, normal saline, lotion, cough syrup, traditional Chinese medicine oral liquid, etc

Chemical industry: perfume, lotion, shower gel, shampoo, essential oil, detergent, detergent, hand sanitizer, ink and other liquids, cream products, etc

Pesticide industry: foliar fertilizer, plant growth regulator, herbicide, emulsifiable concentrates, rodenticide, and other chemical products

Food industry: flax oil, castor oil, olive oil, enzyme, honey, etc.
