Automatic Packing Machine

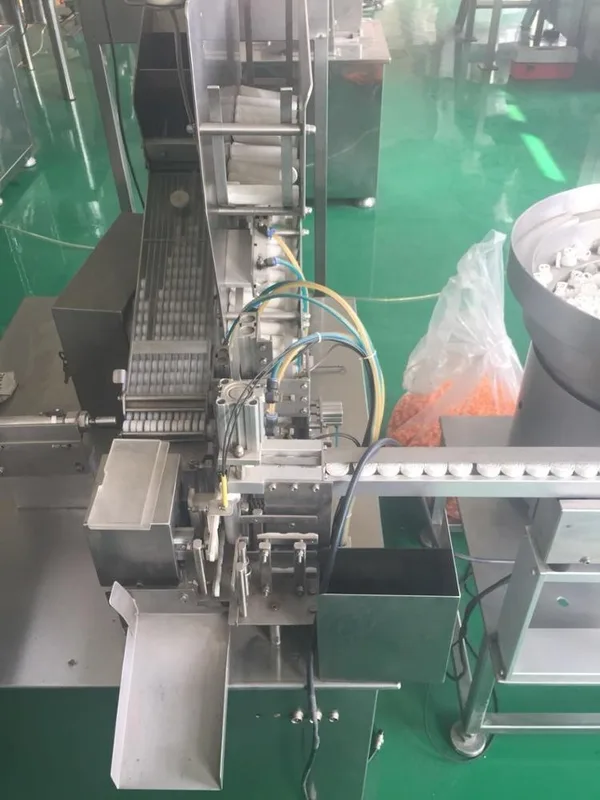

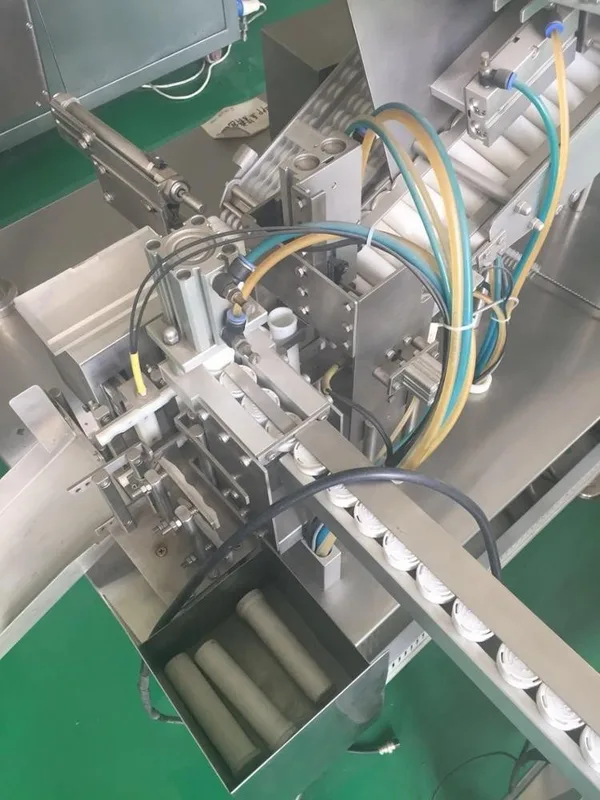

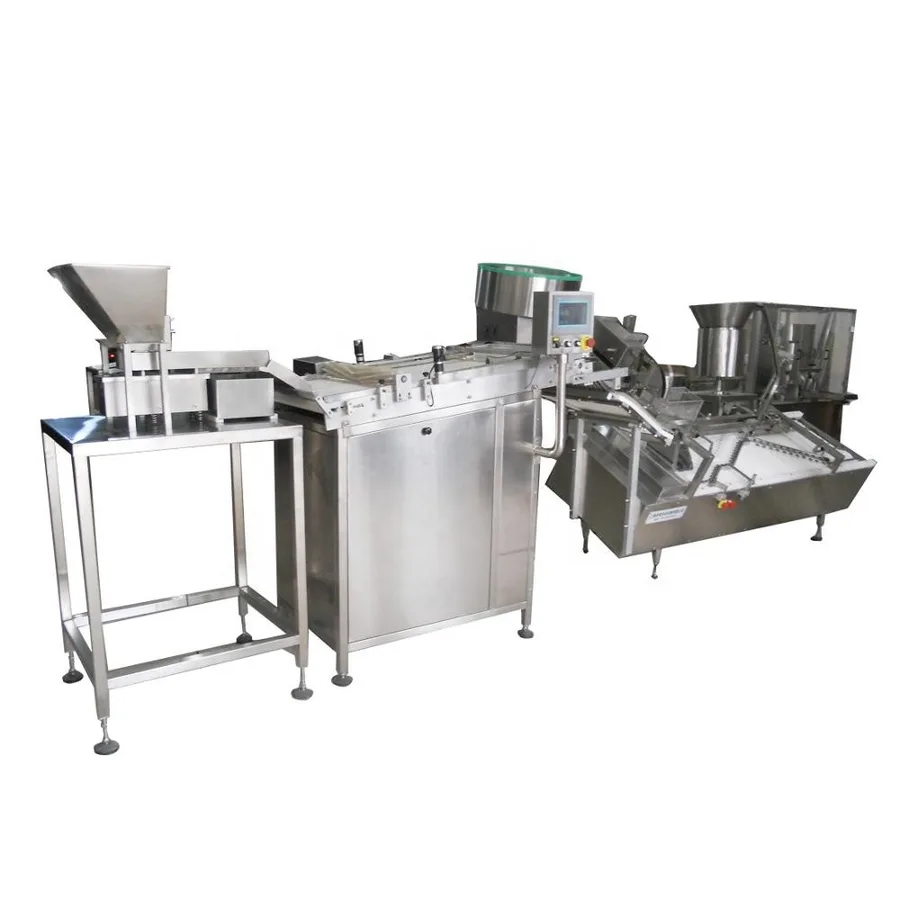

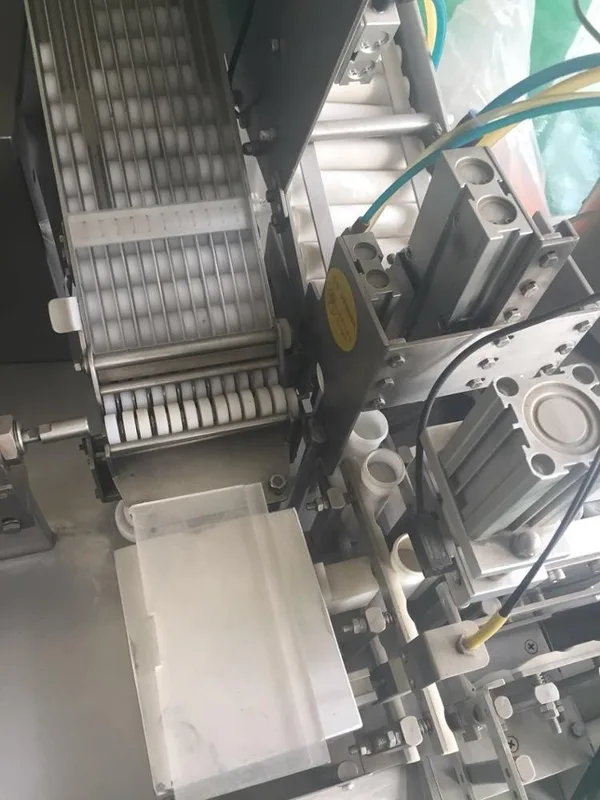

Fully Automatic Horizontal Effervescent Tablet Tube Filling Machine
Introduction: The machine adopts PLC and touch screen control, and Chinese menu display on touch screen, consists with tube unscrambler, tube pushing, cap feeder, and cap pressing, realizing the electromechanical integration. It is simple to operate and easy to maintain. Main technical parameters Model SED-80PTG-D Capacity 60-80 bottles/minute Filling accuracy ≥ 99% Applicable specifications Tube bottle Rate of Cap pressing ≥ 99% Push the tablet way Continuous Gas source Provide by buyer Power 5 KW 220 V single phase Weight 800KGS Overall dimensions 5500*1800*1800mm(L*
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-80GR-D |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overviewIntroduction:
The machine adopts PLC and touch screen control, and Chinese menu display on touch screen, consists with tube unscrambler, tube pushing, cap feeder, and cap pressing, realizing the electromechanical integration. It is simple to operate and easy to maintain.
Main technical parameters
|
Model |
SED-80PTG-D |
|
Capacity |
60-80 bottles/minute |
|
Filling accuracy |
≥99% |
|
Applicable specifications |
Tube bottle |
|
Rate of Cap pressing |
≥99% |
|
Push the tablet way |
Continuous |
|
Gas source |
Provide by buyer |
|
Power |
5KW 220V single phase |
|
Weight |
800KGS |
|
Overall dimensions |
5500*1800*1800mm(L*W*H) |
