Full Automatic White Sugar Film Coating Machine Pharma Machinery For High Outputs

Full Automatic White Sugar Film Coating Machine Pharma Machinery For High Outputs

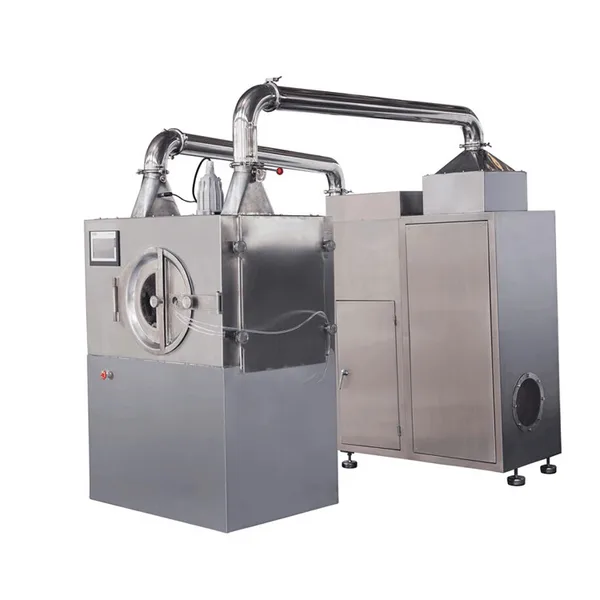

Product Overview of Film Coating Machine



BG Large Capacity Automatic Snack Food Sugarcoating Machine is mainly used for tablet, pellet, and candy to carry out organic thin film coating, water soluble thin film coating, slow and control releasing coating, dropping pellet coating, sugar-coating and chocolate in pharmaceutical and foodstuff industry.



Product Parameters of Film Coating Machine

Item	BG-150
Capacity (kg/time)	150
Speed of drum (rpm)	3-15
Power of main motor (kW)	2.2
Power of motor for high efficiency filtering hot air (kW)	1.5
Power of motor for dust removing and air exhaust (kW)	5.5
Overall size of main machine (mm)	1,430 x 1,250 x 2,060
Overall size of high efficiency filtering hot air machine (mm)	900 x 1,000 x 2,300
Overall size of dust removing and air exhaust fan (mm)	920 x 910 x 2,090
Weight of main machine (kg)	1,200
Weight of high efficiency filtering hot air fan (kg)	300
Weight of dust removing and air exhaust fan (kg)	400



trait of Film Coating Machine



1. Display with touch screen

2. Expanded PLC module, all parameters are set in control panel

3. Because of sound and heat insulation, it has temperature insulation effect to inside of machine

4. Operate at full seal and negative pressure state

5. Nozzle (from Japan)-uniform atomizing, big area of atomizing, adjustable direction,the sprayer has no dropping leakage and block

6. Promote material to stir aslant and writhe. The exchanging frequency is frequent.Therefore it can raise the rate of finished product



Product Show of Film Coating Machine

Application of Film Coating Machine

This chocolate sprayer is mainly used for making granules and film coating on tablets. It can also be used to make spherical products or granules, mixing, polishing, etc.
