Product Overview of Coating Machine



The coating machine is mainly used for coating, glazing, granulating in the pharmaceutical industry, it is also used in the foodstuff, such as sugar coating beans, edible nuts, seeds or candy. Such as marble chocolate, peanut, fried flour-coated peanut,kacang jepun, dumplings, crispy fruit and spicy bean and so on.



Product Parameters of Coating Machine

Model	SED-JB300	SED-JB400	SED-JB600	SED-JB800	SED-JB1000
Dia. of Pan ( mm)	300	400	600	800	1000
Rotary Speed of Pan ( r/min)	46	46	46	36	32
Power of Fan( kw)	0.075	0.075	0.075	0.12	0.12
Power of Heat kw	0.75	0.75	1	2	2
Production Capacity( kg/time)	2	5	15	36-50	45-70
Motor( kw)	0.37	0.55	0.75	1.1	1.1
Overall Size ( mm)	520*360*700	540*400*800	930*800*1000	1000*800*1480	1070*1000*1580
Net Weight( kg)	46	52	120	205	230



use of Coating Machine



This machine is mainly used for making Chinese traditional medicine, it can also be used for making, mixing, smoothing globate or grainy material in food stuff, light industry or chemical industry, for example: chocolate polishing, peanut coating, sugar adding adjust flavor etc.



trait of Coating Machine



1,This machine is a special equipment which is used to coat the flour



or sugar and to form the shape.



2,The coated peanuts are round and smooth.



3,It also can process almond, cashews, soybeans and so on.



4,This equipment has been up to the export processing standard.

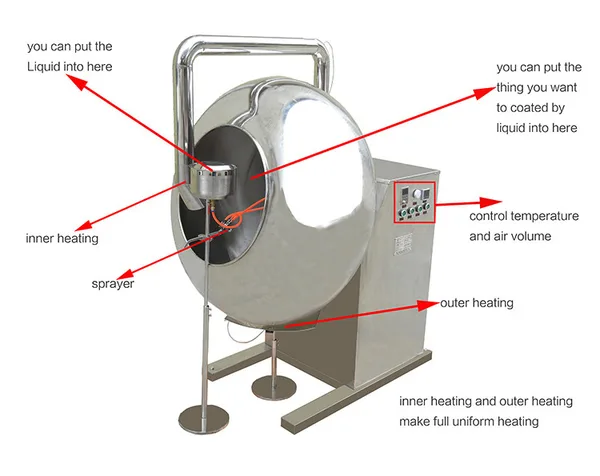

Product Show of Coating Machine

Application of Coating Machine

This chocolate sprayer is mainly used for making granules and film coating on tablets. It can also be used to make spherical products or granules, mixing, polishing, etc.
