Film Coating Machine

Food Pharma Industry Film Coating Machine Sugar Coating Equipment Water Nut Type

Name: Food Pharma Industry Film Coating Machine Sugar Coating Equipment Water Nut Type
Brand: SED Pharma

Food Pharma Industry Film Coating Machine Sugar Coating Equipment Water Nut Type Product Parameters of Coating Machine Items Model SED-600JB Max. tablet volume 8-15Kg / time Boiler diameter 400mm Clockwise angle α (adjustable) 15˚~45˚ Boiler rotating speed 0-40r/min Main motor power 0.75kw Fan motor power 100 w Electric oven wire power 2KW Hot air outlet temperature (℃) 50~60 Machine weight 150KG Working Principle of Coating Machine This machine has the advantages of simple and easy operation, smooth, bright, delicate, one-sided saving accessories, maintenance is sim

Food Pharma Industry Film Coating Machine Sugar Coating Equipment Water Nut Type, view 1

Food Pharma Industry Film Coating Machine Sugar Coating Equipment Water Nut Type, view 2

Food Pharma Industry Film Coating Machine Sugar Coating Equipment Water Nut Type, view 3

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-600JB

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Food Pharma Industry Film Coating Machine Sugar Coating Equipment Water Nut Type
Boiler diameter MM: 600
Capacity: 8-15 KG per load
Host machine power: 0.75kw
Fan motor: 100W
Clockwise angel: 15˚~45˚
Boiler rotating speed: 0-46r/min
Total weight: 150kgs
material: stainless steel
key word: Tablet Coating Machine

Food Pharma Industry Film Coating Machine Sugar Coating Equipment Water Nut Type

Product Parameters of Coating Machine

Items Model				SED-600JB
Max. tablet volume				8-15Kg / time
Boiler diameter				400mm
Clockwise angle α (adjustable)				15˚~45˚
Boiler rotating speed				0-40r/min
Main motor power				0.75kw
Fan motor power				100 w
Electric oven wire power				2KW
Hot air outlet temperature (℃)				50~60
Machine weight				150KG

Working Principle of Coating Machine

This machine has the advantages of simple and easy operation, smooth, bright, delicate, one-sided saving accessories, maintenance is simple, it is the first choice of ideal equipment for experiment.

This machine suits for sugar and film coating for Chinese medicine and Western medicine. It consists by the host (sugar coating machine), controllable hot air system, automatic liquid gas spray system etc. The variable frequency speed of the main motor is adjustable.

The coating material will be coated in the surface of the tablet with high atomizing spray accessories automatically, the tablets in the coating pan for will be continuous complex movement, so that the coating liquid evenly wrapped in each tablet. There is hot air which can be controllable will dry the tablet.

Application of Coating Machine

Water nut type sugarcoating machine is mainly used to press shaped slice, pill and the coating of granules in pharmaceutical industry, and also used for candy manufacturing or coating in foodstuff industry.

Sugarcoated tablets after polishing coating have polished surface, which can prevent oxidation, damping or volatilization, in addition, it can envelop bad smell and enable the drug to be conveniently identified and slow dissolution in the intestines and stomach.

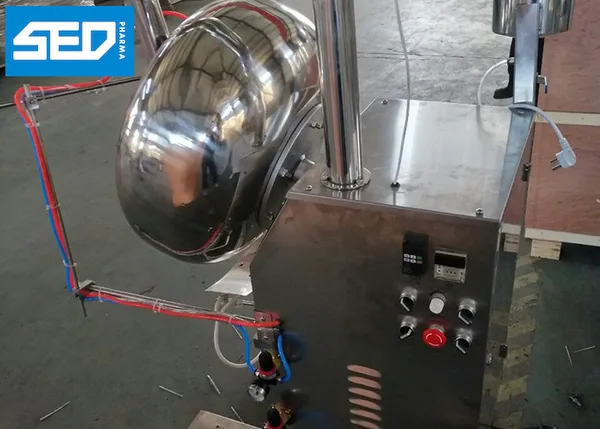

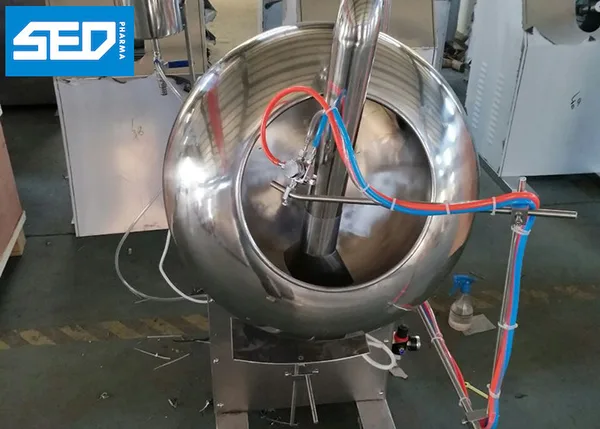

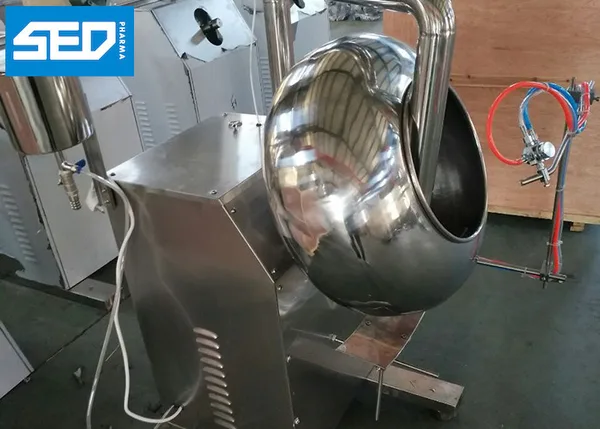

Products Show of Coating Machine
