Electric Automatic Face Mask Packing Machine PLC Touch Screen Operation

Application

Food : cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon cake, several sausage in a bag, noodles, beef jerky, egg roll, etc

Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers,etc.

Hardwares : hinge, stainless steel pipe, bearings , screw, nuts and washer, etc

Hotel Supplies : soap, disposable comb, Bath Cap, tooth paste and brush in one set.

Stationary : pencil, eraser, notebook, paper card, adhensivetape,etc.

Electric Products : battery, usb cable, earphone, user manual and accessories in one set.

Medical : face mask, glove, gauze, capsule, disposable syringe.

Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, pacifier & nipple, bottles, napkin, baby diaper, etc.



main features of Packing Machine



1.PLC Touch screen operation, easy to operate and understand



2.High speed, connectable to various feeder line



3.Double frequency converter controller / servo motor for choice



4.Language: A. Chinese B. English



Product Parameters of Packing Machine​

Machine parameters
Model	ECHO -280	ECHO -300	ECHO -380	ECHO -420	ECHO -460	ECHO -580	ECHO -630	ECHO -660
Max.Width of film(mm)	300	300	380	420	460	600	630	200
Max.Diameter of film(mm)	350	350	300	300	300	300	350	390
Bag Length(mm)	50-450	60-400	90-450	90-450	100-220	130-600	250-450	80-180
Bag Width(mm)	25-110	35-100	40-140	40-140	40-100	80-200	10-60	15-30
Products Height(mm)	max.50	max.60	max.60	max.80	max.80	max.110	10-100	5-30
Packing Speed (bag/min)	50-190	30-350	35-260	35-260	30-100	10-90	15-80	660
Power	220V 50/60HZ 3KW	220V 50/60HZ 3KW	220V 50/60HZ 3KW	220V 50/60HZ 3KW	220V 50/60HZ 3.3KW	220V 50/60HZ 3KW	220V 50/60HZ 4KW	3P/380V 50Hz 7KW
Machine Size(mm) (L*W*H)	3200 x1050 x1450	4200 x850 x1550	3500 x1000 x1500	4200 x1000 x1550	3800 x3200 x1500	4100 x1300 x1450	4000 x1250 x1500	6000 ×1300 ×1600
Machine Weight	750kg	900kg	700kg	950kg	1200kg	900kg	950kg	1.5T
Bag Type	pillow bag,pillow bag with hole punch,pillow with euro slot,gussetedbag,etc

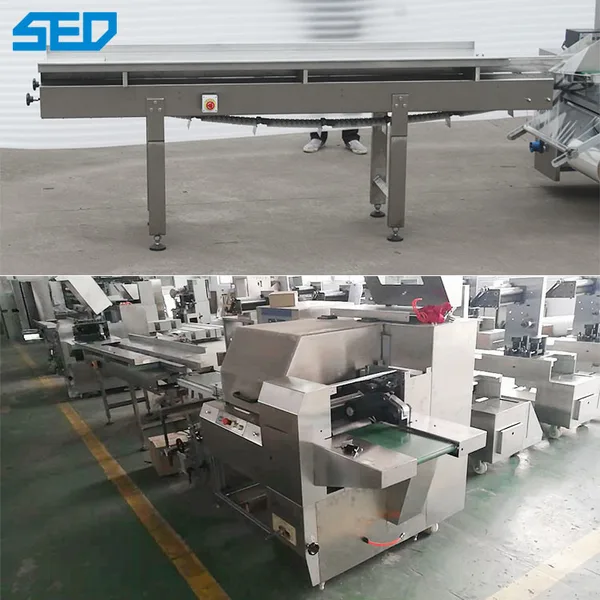

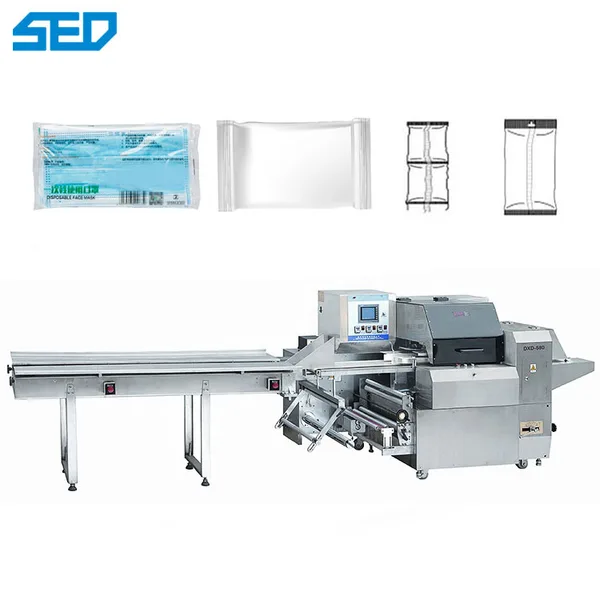

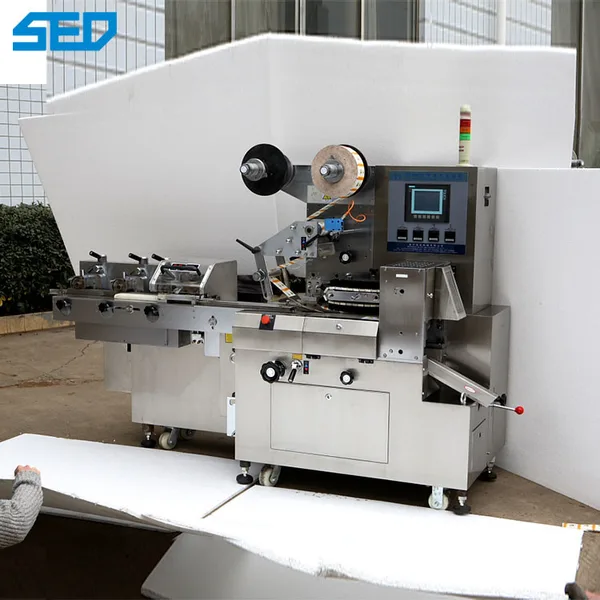

Products Show of Packing Machine
