Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater
Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater Function feature and the principle of Fluid Bed Drying Machine This machine is suitable for granulating, &coating for powder/granules/ in container by spray binder/coating material. The principle of action is based on: Put the powder material into the fluid bed. The cold air is drawn into the fluid bed through the pre, middle and final filters (HEPA) and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater. The material is fluid
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-120GFB |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 40 working days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater
- Item Name
- Fluid Bed Granulator Machine
- Capacity
- 30-120KG/Batch
- Power for fan
- 13Kw
- Pressure of compressed air
- 0.6 Mpa
- Consumption of compressed air
- 1.5M3/min
- material
- stainless steel
- key word
- Fluid Bed Drying Machine
Efficient Pharmaceutical Dryers Stainless Steel Fluid Bed Powder Granulator Coater
Function feature and the principle of Fluid Bed Drying Machine
This machine is suitable for granulating, &coating for powder/granules/ in container by spray binder/coating material.
The principle of action is based on: Put the powder material into the fluid bed. The cold air is drawn into the fluid bed through the pre, middle and final filters (HEPA) and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater.
The material is fluidized in the fluid bed regularly as turbojet. The binder for granulating/coating material is delivered to the nozzle by the liquid pump, which is sprayed to the fluidized material after being sheared into droplets by air.
The evaporating moisture is drawn out by the fan.
Product Parameters of Fluid Bed Drying Machine
| Number | Item | Unit | specification |
| 1 | Diameter of the container | mm | 1500 |
| 2 | Productive capacity | Kg/batch | 30-120 |
| 3 | Power of fan | Kw | 13 |
| 4 | Steam Pressure | Kw | 0.4-0.6Mpa |
| 5 | Steam Consumption | Kg/h | 240 |
| 6 | Total power | Kw | 18.5 |
| 7 | Pressure of compressed air | Mpa | 0.6 |
| 8 | Consumption of compressed air | M3/min | 1.5 |
| 9 | Dimension | mm | 3500*2550*4200mm |

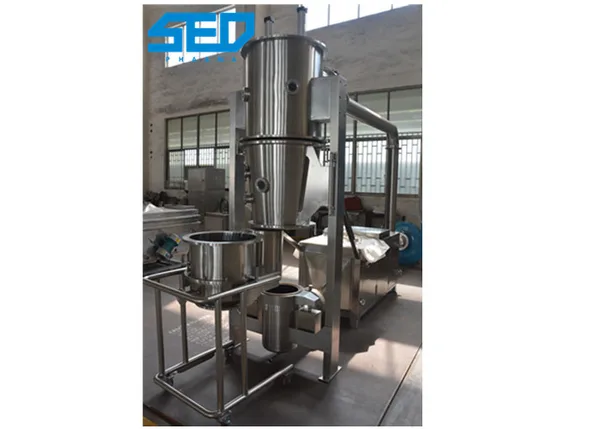

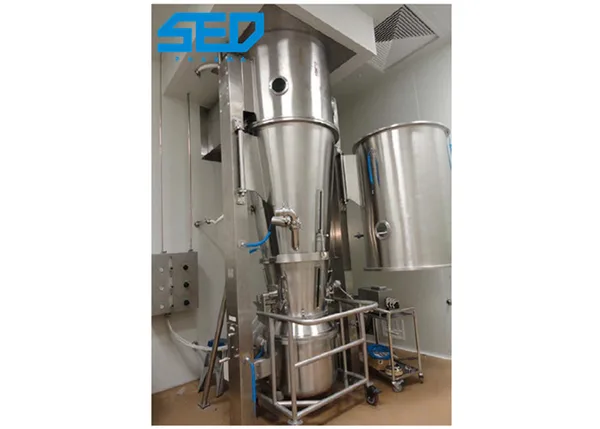

Product Show of Fluid Bed Drying Machine
Application of Fluid Bed Drying Machine
