Tube Filling And Sealing Machine
Durable Pharmaceutical Machinery Equipment Automatic Tube Filling And Sealing Machine
Product Overview of Filling And Sealing Machine The Automatic hose filling and sealing machine is high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement, with features of fair structure, full function, easy operation, accurate filling, stable running, as well as low noise. It adopt with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it's an ideal equipment for ALU tube, plastic tube an
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Durable Pharmaceutical Machinery Equipment Automatic Tube Filling And Sealing Machine
- Encasing speed
- 30-120 boxes/min
- Power
- 220V/50Hz
- Motor power
- 1.1kw
- Machine dimension(L×W×H)
- 2150mm×1140mm×1800mm
- Air consumption
- 120-160L/min
- material
- stainless steel
- key word
- Automatic Tube Filling And Sealing Machine
Product Overview of Filling And Sealing Machine
The Automatic hose filling and sealing machine is high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement, with features of fair structure, full function, easy operation, accurate filling, stable running, as well as low noise.
It adopt with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it's an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries, comply with the standard of GMP.
Product Parameters of Filling And Sealing Machine
| Tube material | Metal tube, ALU tube |
| Tube diameter | 10-42mm |
| Tube length | 50-250(customizable) |
| Filling volume | 5-500ml/branch(Adjustable) |
| Filling accuracy | ≤±1% |
| Speed | 3-10 r/min |
| Product capacity | 30-60 Pc/min |
| Air Supply | 0.55-0.65mpa |
| Motor Power | 2kw(380V/ 220V 50Hz) |
| Heat sealing power | 3KW |
| Overall dimension | 2620×1020×1980mm |
| Machine weight | 1100kg |
Feature of Filling And Sealing Machine
1. High grade operation screen with LCD display PLC and buttons, easy operation and more humanization By steplees speed adjust, parameter set, out put count, pressure index and failure display.
2. Automatically executing tube supply, photoelectron register, inert gas filling(optional), material filling and sealing, batch number printing, final products output.
3. High precision photoelectron register reduced the chromatic aberration scope.
4. Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).
5. Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; Waiting if tube error position or pressure too low, automatic stop machine if open the protective door.

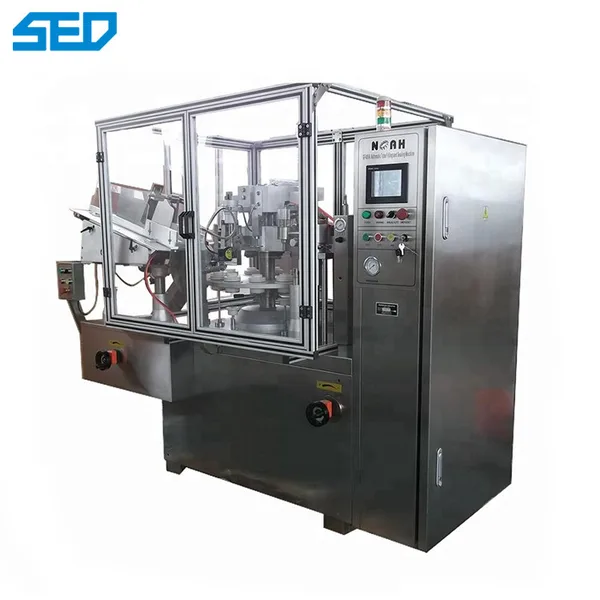

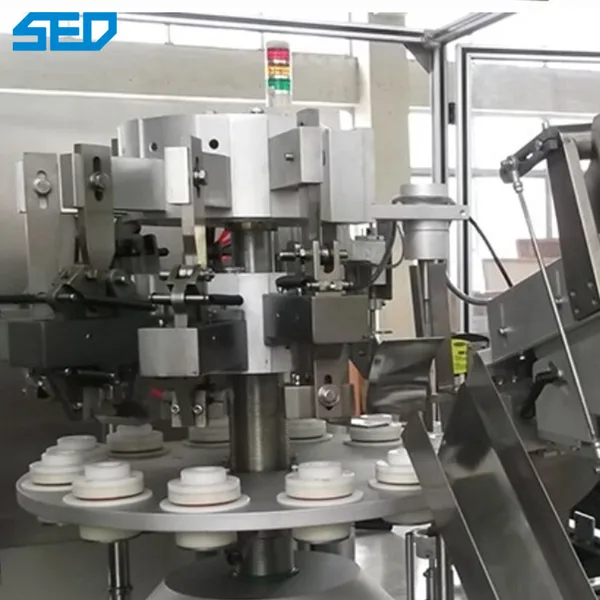

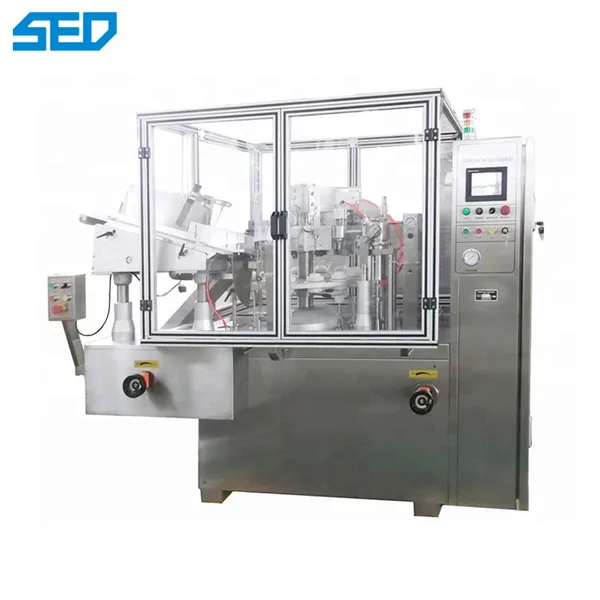

Show of Filling And Sealing Machine
Application of Filling And Sealing Machine
This machine is widely used in daily cosmetics, medicine, food and other industries.
