Product Overview of Coating Machine​

Our JB300 sugar coating machine is used for tablets and pills in the pharmaceutical and food industries.

The JB300 icing machine is also used for rolling and heating beans and eating nuts or seeds.

As its function.Raise the icing pan to 30°. Heater such as gas or electric heater can be placed directly under the pan.



The machine is equipped with a separate blower with an electric heater.The duct of the blower is extended into the pot for heating or cooling purposes.



Product Parameters of Coating Machine

Model	SED-JB300	SED-JB400	SED-JB600	SED-JB800	SED-JB1000
Dia. of Pan ( mm)	300	400	600	800	1000
Rotary Speed of Pan ( r/min)	46	46	46	36	32
Power of Fan( kw)	0.075	0.075	0.075	0.12	0.12
Power of Heat kw	0.75	0.75	1	2	2
Production Capacity( kg/time)	2	5	15	36-50	45-70
Motor( kw)	0.37	0.55	0.75	1.1	1.1
Overall Size ( mm)	520*360*700	540*400*800	930*800*1000	1000*800*1480	1070*1000*1580
Net Weight( kg)	46	52	120	205	230



Use of Coating Machine

This machine is widely used in the coating, glazing and granulation of the pharmacy trade. It also can be used to ball object mould shape make in foodstuff and chemical industries.

trait of Coating Machine
1. This coating pot is made of stainless steel, meet the GMP standard.

2. Transmission steady, performance reliable.

3. Convenient to wash and maintain.

4. High thermal efficiency.

5. It can produce the technological requirement and regulate coating in one pot of angle

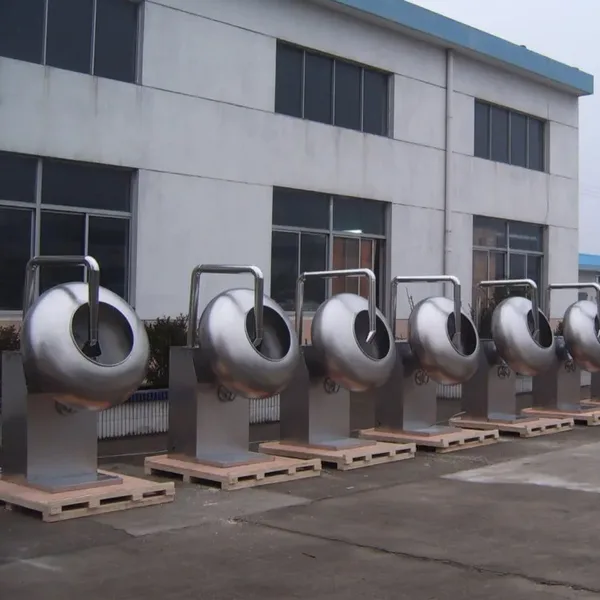

Show of Coating Machine​



Application of Coating Machine

This machine is mainly used for the production of tablet granules and film coating. It can also be used to make spherical products or granules, mixing, polishing, etc. Such as: chocolate polishing, peanut coating, sugar coating, seasoning, production of tapioca pearls, desiccant and aluminum hydroxide granulation, porcelain ball making, etc.
