Pharmaceutical Dryers
Boiling Spraying Granulation Drying Machine For Powder Granulation Granular Coating
Boiling Spraying Granulation Drying Machine For Powder Granulation Granular Coating Product Parameters of Fluid Bed Drying Machine Model 5 Volume (L) 22 Diameter of the chamber(mm) 400 Amount to be treated (kg/per time) 4-6 Power of fan (kw) 4 Consume of steam 0.4MPa(kg/h) 23 Working time(min) 45-90(According to the properties of raw material) Consume of compressed air (m 3 /min) 0.9 Noise,dB (A) (fan is installed separately) ≤75 Main machine height (m) 1.2×0.7×2.1 Weight of the main machine(kg) 700 Feature of Fluid Bed Drying Machine By using
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-6GFZ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 40 working days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Boiling Spraying Granulation Drying Machine For Powder Granulation Granular Coating
- Item Name
- Boiling Spraying Granulation Drying Machine
- Capacity
- 4-6KG/Batch
- Volume
- 22L
- Power of Fan
- 4KW
- Consume of steam 0.4 MPa(kg/h)
- 23
- Consume of compressed air (m3/min)
- 0.9
- Noise,dB (A)
- (fan is installed separately) ≤75
- material
- stainless steel
- key word
- Fluid Bed Drying Machine
Boiling Spraying Granulation Drying Machine For Powder Granulation Granular Coating
Product Parameters of Fluid Bed Drying Machine
| Model | 5 |
| Volume (L) | 22 |
| Diameter of the chamber(mm) | 400 |
| Amount to be treated (kg/per time) | 4-6 |
| Power of fan (kw) | 4 |
| Consume of steam 0.4MPa(kg/h) | 23 |
| Working time(min) | 45-90(According to the properties of raw material) |
| Consume of compressed air (m3/min) | 0.9 |
| Noise,dB (A) | (fan is installed separately) ≤75 |
| Main machine height (m) | 1.2×0.7×2.1 |
| Weight of the main machine(kg) | 700 |
Feature of Fluid Bed Drying Machine
- By using powder granulation, to improve the liquidity and thinner dust.
- By using powder granulation, to improve solubility property.
- Mixing—granulation—drying can be finished in one device (one-step granulation)
- To adopt antistatic filtering mediums, to ensure safe operation.
- Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
- No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.
Working Principle of Fluid Bed Drying Machine
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container.
It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

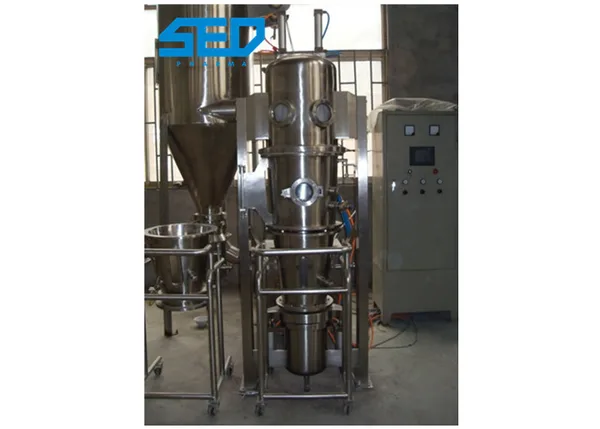

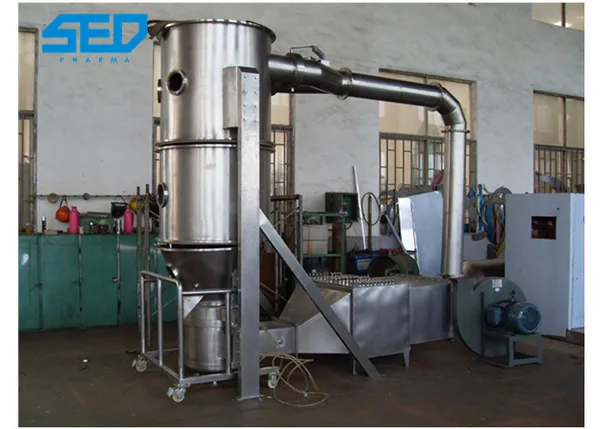

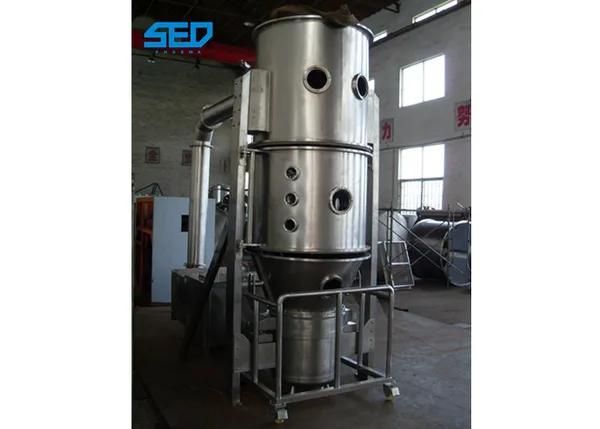

Product Show of Fluid Bed Drying Machine
Application of Fluid Bed Drying Machine
- Available for both Powder granulation and Granular Coating.
- Granulation: Tablet particles, granule particles, capsule particles
- Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
- Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
- Pesticide, paint pigment, dry granulation Powder, granules, block materials
